32" LED With Capacitive Multi Touch Display
| Display Parameter | |
| Model | TPC32PCAP |
| Diagonal Size | 32" |
| Effective Display Area | 698.4(H) × 392.85 (V) mm |
| Pixel Pitch | 0.12125(H) x0.36375(V) mm |
| Display Ratio | 16:09 |
| Brightness | 300cd/m2 |
| Contrast Ratio | 1200:1 |
| Refresh Rate | 60Hz |
| Colors | 16.7M |
| Backlight Type | ELED |
| Viewing Angle | 178°(V)/178°(H) |
| Resolution | 1920(H) X 1080(V) |
| Back I/O port | |
| VGA | 1 |
| HDMI | 1 |
| DVI | 1 |
| Touch USB 2.0 | 1 |
| Audpo Input | 1 |
| Audio Output | 1 |
| DC in | 1 |
| Main Board | |
| Chipset | NT68676 |
| Interface Dual | LVDS |
| FLASH | 4MB, GD25Q40CTIG |
| AMPLIFIER | CS85636S |
| Speakers | 2 X 2 W |
| OSD | Simplified Chinese, English, Korean (optional) |
| MARKET | Globel |
| Touch panel | |
| Touch technology | Capacitive touch technology |
| Touch type | 10 point |
| Writing surface material | 3mm physical tempered glass |
| Communication Port | USB2.0 |
| Response Speed | Click : 8ms, Contnue : 3ms |
| Positioning Accuracy | ±2 |
| Others | |
| Power consumption | ≤35W |
| Standby consumption | ≤0.5W |
| power supply | 100-240V, 50/60Hz |

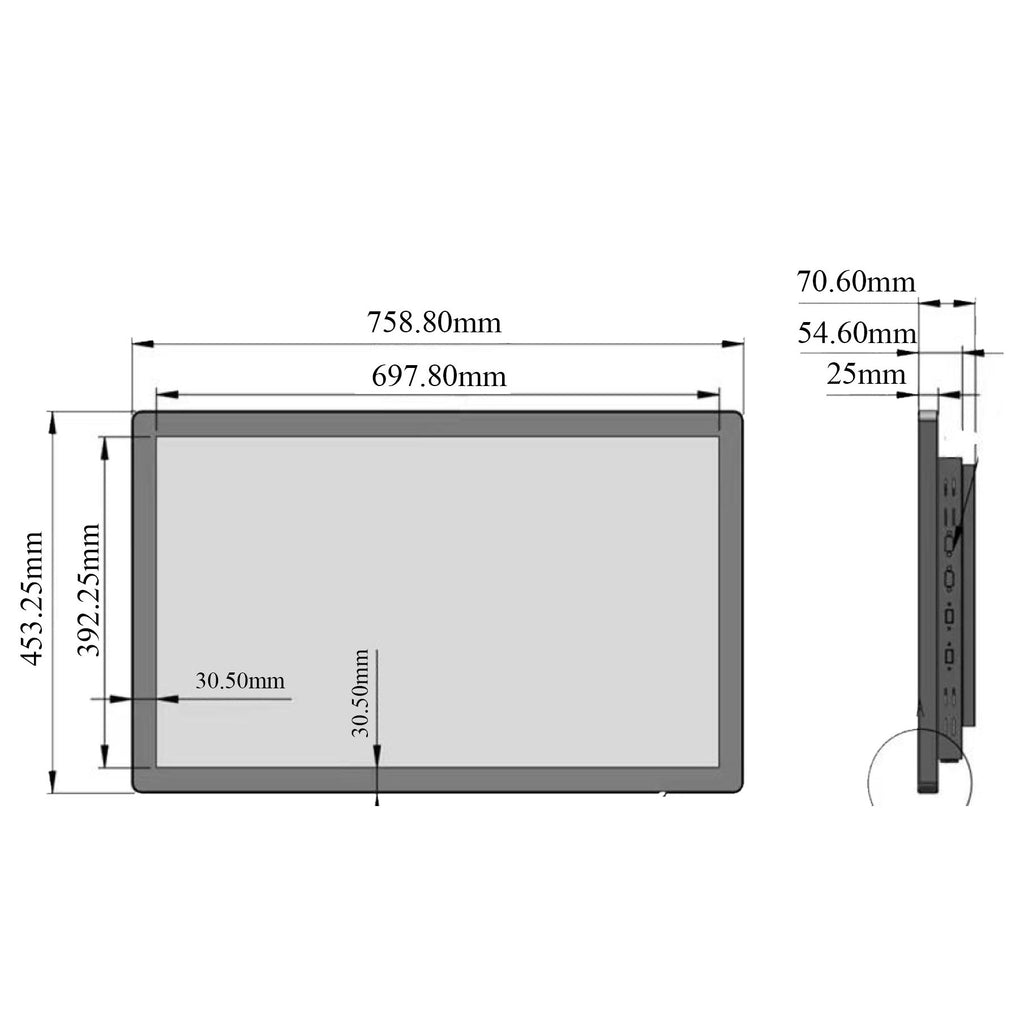

| Demission | 758.8 x 55.3 x 453.25 mm |
| Gross Weight | 10kg |
| package size | 776 x 116 x 496 mm |
| GST Tax | Extra |
| Courier Charges | Extra |
| Qty Price | Call Us |
| Warranty | 1 Year Carry in Warranty |
