ThinPC

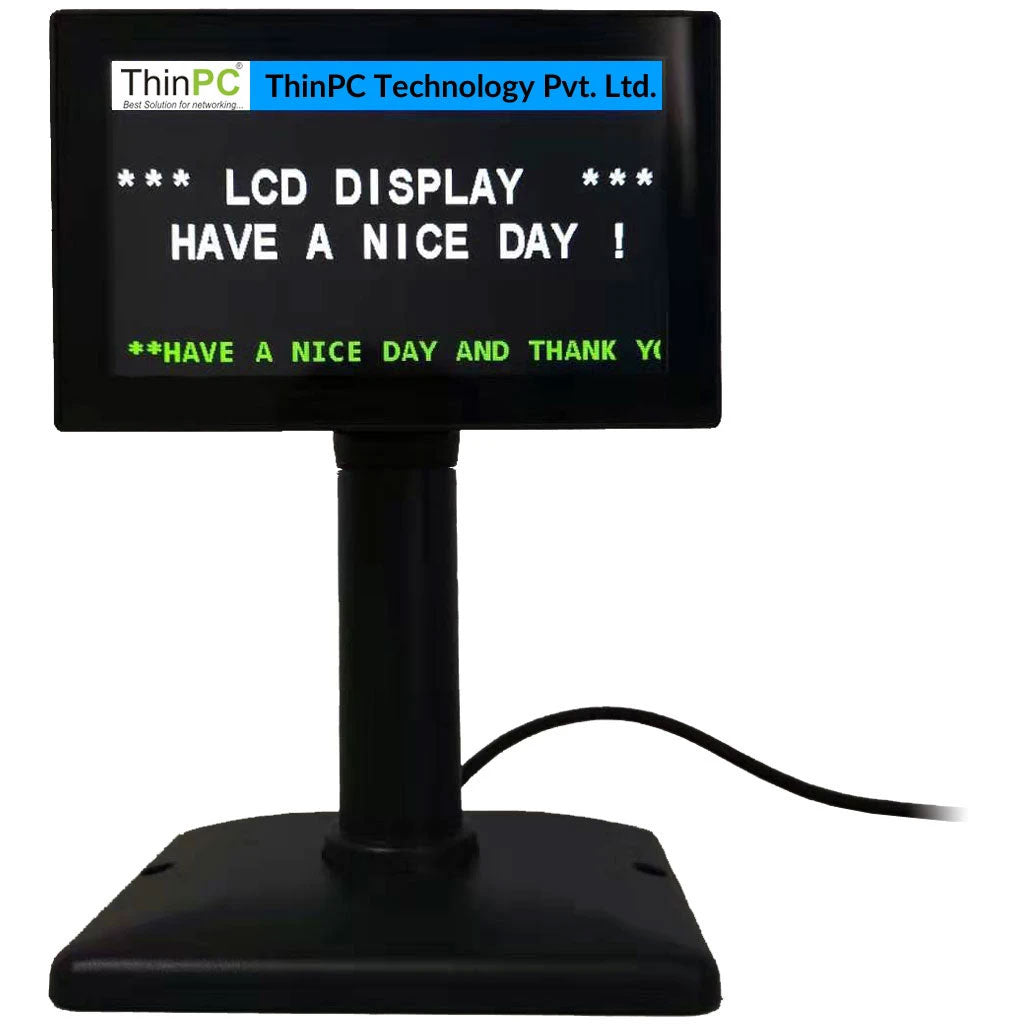

5 inch colorful TFT-LCD customer display

5 inch colorful TFT-LCD customer display

Regular price Rs. 0.00
Regular price Sale price Rs. 0.00
Sale Sold out
Tax included.
View full details

5 inch colorful TFT-LCD customer display

5 inch colorful display

  • 40 Character (20 x 2) / 80 character (20 x 4) Display More Information
  • Characters / Background colors can be changed freely
  • Low power consumption TPC500-I is only 0.5W
  • TPC500-I : 24 x 48 / 40 x 80 dot matrix
  • Supports 15 command modes included EPSON etc.
  • Easy connectivity to a wide range of POS products.
  • Power supply from 5V to 24V to prevent any mindless use of improper input.
  • OPOS / Jpos driver is standard

Technical Details

Display Method TFT - LCD Display (5 inch COLOR PANEL)
Number of Characters  40 character (20columns x 2line)
40 character (20columns x 4line)
Brightness >350cd/m2
Resolution  480 x 272 or 800 x 480
Character font 24 x 48 / 40 x 80 dot matrix
Character type  95 Alphanumeric, 32 international characters
Character size  8(H) x 5.25 (W) mm
Dot Size (X x Y) 0.23 x 0.23mm
Panel Dimension  113.5 (L) mm x 65.5(W) x 40(H)
Pole Dimension Per support length : 163(L) x 27.65(DIA)mm / 80(L) x 27.65 (DIA) mm
Base Dimension 126(L) x 89(W) x 13.5(H)mm
Viewing Angle Max. 135°
Horizontal Rotation Max. 355°
Weight 600grams
Commands Mode 15 Kinds, E.G LD220, ESC/POS, AEDEX, UTC/S, UTC/P, ADM788, DSP800, CD5220, EMAX, LOGIC CONTROL etc
Language Support CP437, KATAKANA, CP850, CP860, CP863, CP865, WCP1252, CP857, WCP1250, WCP1253, WCP1255, WCP1251, CP866, CP852, CP737, CP858, CP867, WCP1257, WCP1258
Interface RS-232 (Serial) / USB
Connection (Baud rate) Direct connection 9600/19200 / 38400 / 57600 / 115200bps
Reliability (MTBF) 30000 hours
Power (Consumption) 5-24 VDC
Safety (EMC standard Safety standard) FCC, CE, ROHS
Warranty 1 Year
