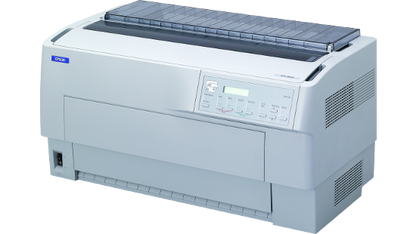

DFX-9000 (Std) Impact Pinter
| Brand | - | EPSON |
| Model | - | DFX-9000 |
| Printer Type | PRINTING METHOD | Impact dot matrix |
| NUMBER OF PINS IN HEAD | 9 pins | |
| PRINT DIRECTION | Bi-directional with logic seeking | |
| Color | Black | |
| Control Code | ESC/P®, IBM®PPDS Emulation | |
| Printer Speed | HIGH SPEED DRAFT 10 / 12 cpi | 1550 / 1450 CPS |
| DRAFT 10 / 12 cpi | 1320 / 1320 cps | |
| NLQ 10 / 12 cpi | 330 / 330 cps | |
| Print Characteristics | Character Table | 13 International Character Sets |
| For Standard Version | Italic Table, PC437(US, Standard Europe), PC850(Multilingual), PC860(Portuguese), PC863(Canadian-French), PC865(Nordic), PC861(Icelandic), BRASCII, Abicomp, Roman 8, ISO Latin 1, PC858, ISO 8859-15 | |
| Barcode Fonts | EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code 39, CODE 128, POSTNET | |
| Printable Columns | CHARACTERS PER LINE | 10CPI - 136 12CPI - 163 15CPI - 204 17CPI (CONDENSED) - 233 20CPI (CONDENSED) - 272 |
| Paper / Media Handling | Paper Path | Tractor (Front or Rear In, Top Out) |
| Continuous Paper(Single Sheet) | WIDTH:- 76.2 – 419.1 mm LENGTH:- 76.2 – 558.8 mm Thickness:- 0.065 – 0.10 mm |
|
| Continuous Paper(Multi part)) | Width:-76.2 – 419.1 mm Length:- 76.2 – 558.8 mm Thickness (Rear Entry) :- 0.12 – 0.53 mm Thickness (Front Entry) :- 0.12 – 0.79 mm |
|
| Labels | Base Sheet Width:- 76.2 – 419.1 mm Base Sheet Length:- 76.2 – 558.8 mm Base Sheet Thickness:- 0.07 – 0.09 mm |
|
| Continuous Forms with Labels | Base Sheet Width :-76.2 – 419.1 mm Base Sheet Length :- 76.2 – 558.8 mm Total Thickness (Rear Entry) :- 0.065 – 0.53 mm Total Thickness (Front Entry) :- 0.065 – 0.79 mm |
|
| COPIES | 1 Original + 9 Copies (Front), 1 Original + 6 Copies (Rear) | |
| LINE SPACING | 4.23 mm (1/6 Inch) or programmable in increments of 0.059 mm (1/432 Inch) | |
| Acoustic Noise | - | 58 dB(A) (ISO 7779 Pattern) |
| INPUT DATA BUFFER | - | 128 KB |
| INTERFACE | STANDARD | Bi-Directional Parallel Interface (IEEE-1284 Nibble Mode Supported,Serial I/F, USB (Ver .1.1) I/F, Type B I/F Level 2 (Option) |
| RIBBON CARTRIDGE | STANDARD FABRIC RIBBON CARTRIDGE (BLACK) RIBBON LIFE | 15 Million Characters (Draft 10 cpi, 14 Dots/Character) |
| RELIABILITY | MEAN PRINT VOLUME BETWEEN FAILURE (MVBF) | 133 million lines (Except print head) |
| MEAN TIME BETWEEN FAILURE (MTBF) | 20,000 POH (25% Duty Cycle) | |
| PRINT HEAD LIFE | Approx. 200 million strokes/wire | |
| CONTROL PANEL | - | 9 buttons, 6 LEDs and 1 LCD |
| Environmental Conditions | Temperature | 5 to 35°C |
| Humidity | 10 to 80% RH | |
| Electrical Specification | Rated Voltage | AC 100 - 240 V |
| Rated Frequency | 50 - 60 Hz | |
| Power Consumption | Approx. 185W (Original Pattern), ENERGY STAR compliant | |

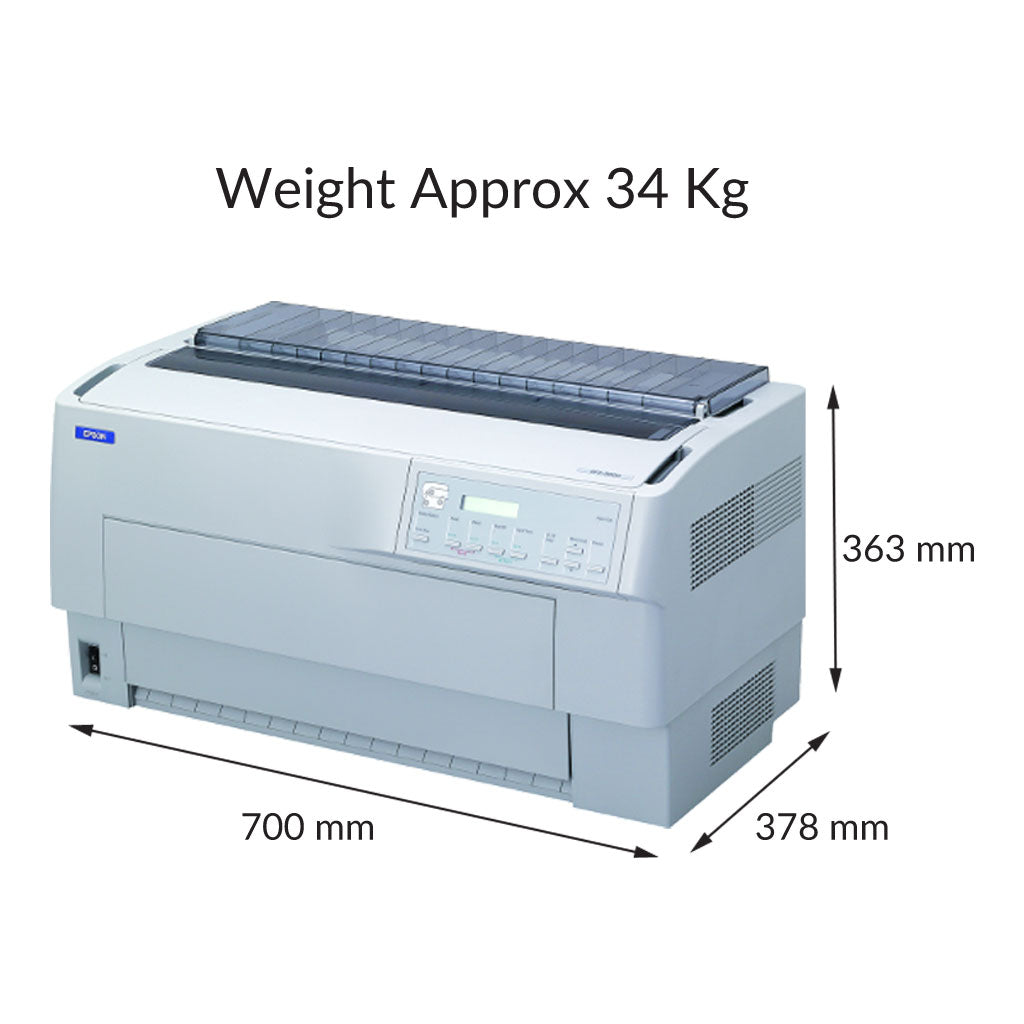

| Dimensions & Weight | Dimensions (W x D x H) | 700 mm x 378 mm x 363 mm |
| Weight | Approx. 34 Kg |
