DLQ-3500 Impact Printer
| Brand | - | EPSON |
| Model | - | DLQ-3500 |
| Printer Type | PRINTING METHOD | Impact dot matrix |
| NUMBER OF PINS IN HEAD | 24 pins | |
| PRINT DIRECTION | Bi-directional with logic seeking | |
| Printer Speed | HIGH SPEED DRAFT 10 cpi | 550 CPS |
| DRAFT (10 / 12 / 15 cpi ) | 495 / 594 / 742 cps | |
| DRAFT CONDENSED (17 / 20 cpi) | 424 / 495 cps | |
| LQ (10 / 12 / 15 cpi) | 165 / 198 / 247 cps | |
| LQ CONDENSED (17 / 20 cpi) | 282 / 330 cps | |
| Print Characteristics | CHARACTER SETS | 14 international character sets and legal character set 13 character code tables (Standard) |
| Barcode | EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code 39, Code 128, POSTNET | |
| Printable Columns (Pitch) | 10 cpi, 12 cpi , 15 cpi ,17 cpi CONDENSED ,20 cpi CONDENSED | |
| characters per line | 136, 136, 204, 233, 272 | |
| Character | 10 , 12, 15, 17.1, 20 | |
| Paper / Media Handling | Paper Path | Manual Insrtion :- Front in, Front Out TRACTOR :-Rear in, Front out Cut Sheet Feeder :- Rear in, Front Out |
| CUT SHEET SIZE | WIDTH:- 90~420mm (Manual insertion) WIDTH:- 100~420mm (CSF/ASA) LENGTH:- 80~420mm (Manual insertion / ASA) LENGTH:- 92~420mm (CSF) x LENGTH :- 101.6 - 152.4 mm (4.0 - 6.0”) x 101.6 - 558.8 mm (4.0 - 22.0”) THICKNESS :- 0.065 - 0.25 mm (0.0025 - 0.0098”) (Total) |
|
| PAPER SIZE | WIDTH x LENGTH :- 101.6 - 406.4 mm (4.0 - 16.0”) x 101.6 - 558.8 mm (4.0 - 22.0”) THICKNESS :- 0.065 - 0.19mm (0.0025 - 0.0074”) (Total) |
|
| COPIES | Original + 7 copies | |
| LINE SPACING | 4.23 mm (1/6”) or programmable in increments of 0.071 mm (1/360”) | |
| INPUT DATA BUFFER | - | 128 KB |
| INTERFACE | STANDARD | Centronics-type 8-bit parallel interface (IEEE - 1284 Nibble mode)Bi-directional parallel interface (IEEE-1284 nibble mode USB I/F Ver. 1.1 |
| RIBBON CARTRIDGE | STANDARD FABRIC RIBBON CARTRIDGE (BLACK) RIBBON LIFE | Approx. 9 million characters (LQ 10 cpi, 48 dots/character) |
| ACOUSTIC NOISE | - | Approx. 59 dB(A) (ISO 7779 pattern) |
| RELIABILITY | MEAN PRINT VOLUME BETWEEN FAILURE (MVBF) | 25 million lines (Except print head) |
| MEAN TIME BETWEEN FAILURE (MTBF) | 10000 POH (25% Duty Cycle) | |
| PRINT HEAD LIFE | Approx. 400 million strokes/wire | |
| CONTROL PANEL | - | 7 switches and 12 LEDs |
| Environmental Conditions | Temperature | 5 to 35°C / 105 to 95°F |
| Humidity | 10 to 80% RH | |
| Electrical Specification | Rated Voltage | AC 220 - 240 V |
| Rated Frequency | 50 - 60 Hz | |
| Power Consumption | Approx. 85W (Original Pattern), ENERGY STAR compliant | |

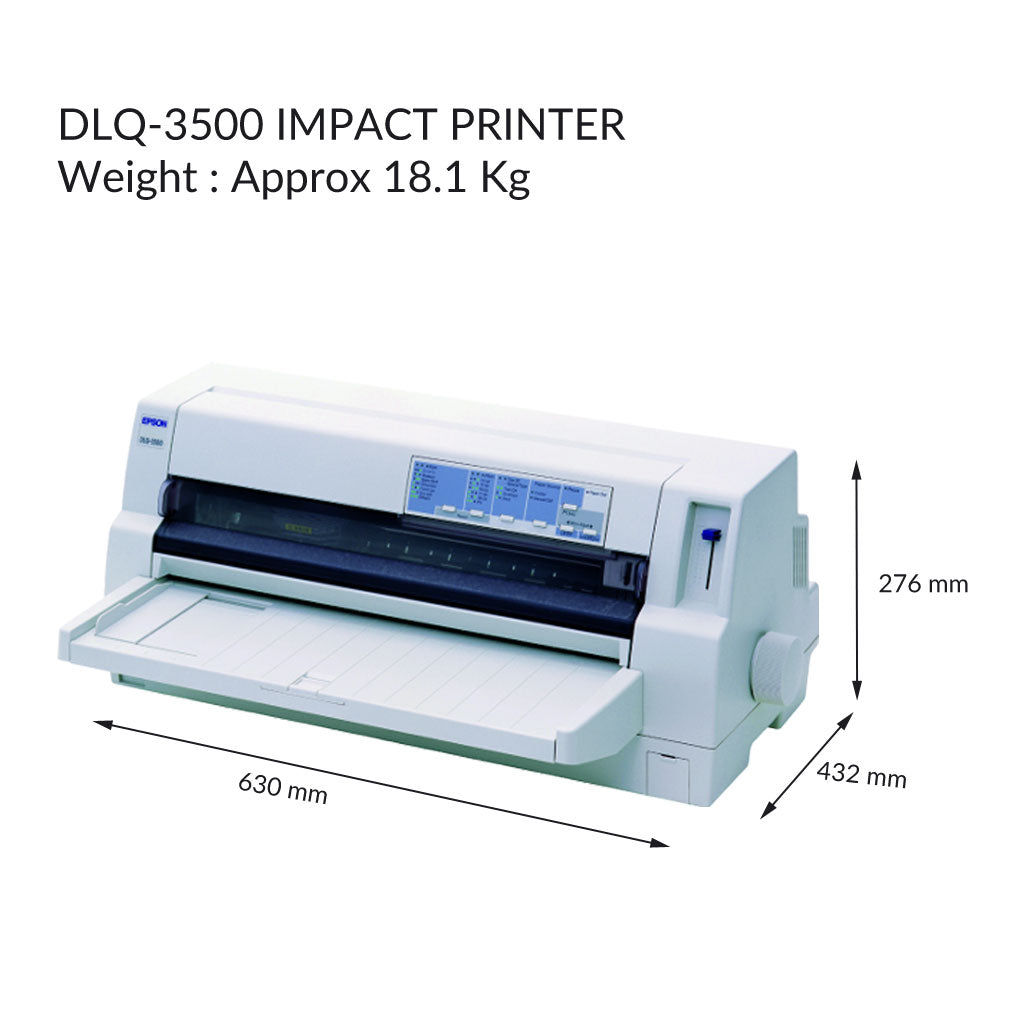

| Dimensions & Weight | Dimensions (W x D x H) | 630 mm x 432 mm x 276 mm |
| Weight | Approx. 18.1 kg |
