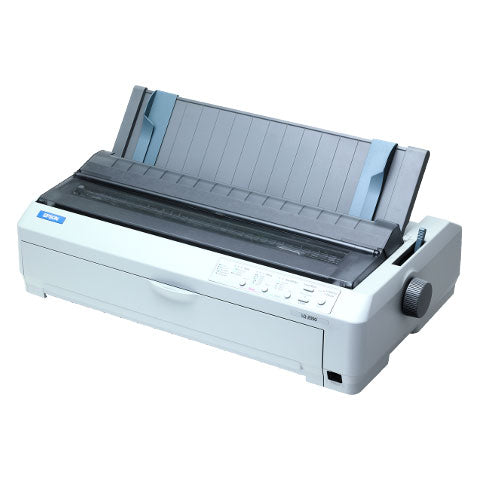

LQ-2090 Impact Printer
| Brand | - | EPSON |
| Model | - | LQ - 2090 |
| Printer Type | PRINTING METHOD | Impact dot matrix |
| NUMBER OF PINS IN HEAD | 24 pins | |
| PRINT DIRECTION | Bi-directional with logic seeking | |
| Color | Black | |
| Printer Speed | HIGH SPEED DRAFT 10 / 12 cpi | 440 / 529 CPS |
| DRAFT 10 / 12 / 15 cpi | 330 / 396 / 495 cps | |
| DRAFT Condensed 17 / 20 cpi | 559 / 658 cps | |
| LQ 10 / 12 / 15 cpi | 110 / 132 / 165 cps | |
| LQ Condensed 17 / 20 cpi | 187 / 220 cps | |
| Print Characteristics | Bitmap Fonts | Epson Draft:- 10, 12, 15 cpi |
| Scalable Fonts | Epson Roman / Epson Sans Serif | |
| Barcode Fonts | EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code 39, Code 128, POSTNET | |
| Printable Columns | CHARACTERS PER LINE | 10CPI - 136 12CPI - 163 15CPI - 204 17CPI (CONDENSED) - 233 20CPI (CONDENSED) - 272 |
| Paper / Media Handling | Paper Path | Manual Insertion (front / Rear insertion) Push Factor (front / Rear insertion) Pull Tractor (front / Rear or bottom insertion) |
| Cut Sheet Size | Front / Rear :- WIDTH:- 100 - 420mm LENGTH:- 100 - 420mm |
|
| Continuous paper size | Front / Rear :- WIDTH:- 101.6 - 406.4mm LENGTH:- 101.6 - 558.8mm |
|
| COPIES | 1 Original + 4 copies | |
| LINE SPACING | 4.23 mm (1/6”) or programmable in increments of 0.0706 mm (1/360”) | |
| Acoustic Noise | - | 52 dB |
| INPUT DATA BUFFER | - | 128 KB |
| INTERFACE | STANDARD | USB 1.1, Bi-directional parallel interface (IEEE-1284 nibble mode supported) |
| RIBBON CARTRIDGE | STANDARD FABRIC RIBBON CARTRIDGE (BLACK) RIBBON LIFE | Approx. 8 million characters |
| RELIABILITY | MEAN PRINT VOLUME BETWEEN FAILURE (MVBF) | 40 million lines (Except print head) |
| MEAN TIME BETWEEN FAILURE (MTBF) | 20000 Power On Hours (POH) | |
| PRINT HEAD LIFE | Approx. 400 million strokes/wire | |
| CONTROL PANEL | - | 6 switches and 10 LEDs |
| Environmental Conditions | Temperature | 5 to 35°C |
| Humidity | 10 to 80% RH | |
| Electrical Specification | Rated Voltage | AC 220 - 240 V |
| Rated Frequency | 50 - 60 Hz | |
| Power Consumption | Approx. 42W (Original Pattern), ENERGY STAR compliant | |
| Dimensions & Weight | Dimensions (W x D x H) | 589 mm x 350 mm x 167.5 mm |
| Weight | Approx. 9.5 Kg |
