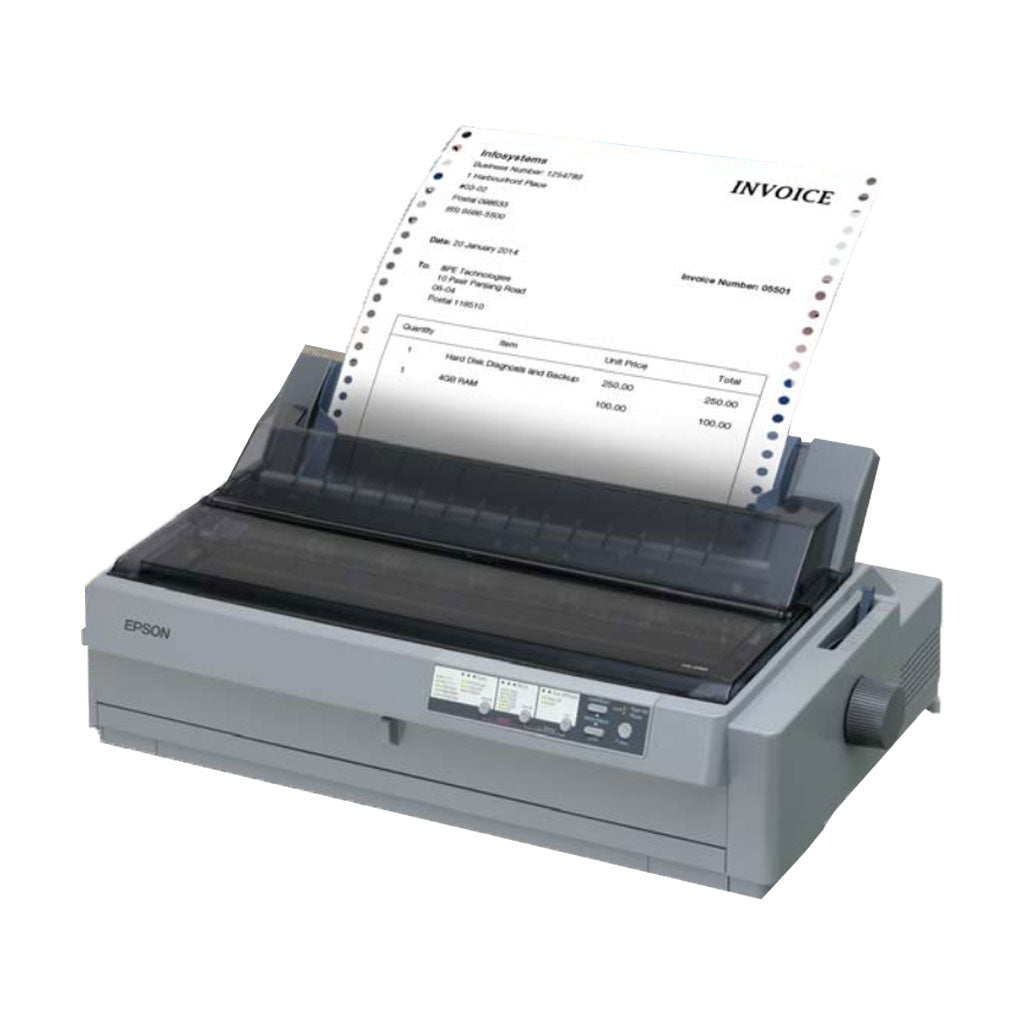

LQ-2190 (Int'l) Impact Printer
| Brand | - | EPSON |
| Model | - | LQ-2190 |
| Printer Type | PRINTING METHOD | Impact dot matrix |
| NUMBER OF PINS IN HEAD | 24 pins | |
| PRINT DIRECTION | Bi-directional with logic seeking | |
| Control Code | ESC/P2 and IBM PPDS emulation | |
| Printer Speed | HIGH SPEED DRAFT 10 / 12 cpi | 480 / 576 CPS |
| DRAFT 10 / 12 / 15 cpi | 360 / 432 / 540 cps | |
| DRAFT Condensed 17 / 20 cpi | 308 / 360 cps | |
| Letter Quality 10 / 12 / 15 cpi | 120 / 144 / 180 cps | |
| Letter Quality Condensed 17 / 20 cpi | 205 / 240 cps | |
| Print Characteristics | Character Table | 14 International Character Sets |
| Scalable Fonts | Epson Roman / Sans Serif / Roman T / Sans Serif H: 10.5pt., 8pt. - 32pt. (every 2pt.) | |
| Barcode Fonts | EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code 39, Code 128, POSTNET, Coda bar (NW-7), Industrial 2 of 5, Matrix 2 of 5 | |
| Printable Columns | CHARACTERS PER LINE | 10CPI - 136 12CPI - 163 15CPI - 204 17CPI - 233 20CPI - 272 |
| Paper / Media Handling | Paper Path | Manual Insertion (Front or rear in, top out), Push Tractor (Front or rear in, top out), Pull Tractor (Front or rear or bottom in, top out) |
| Continuous Paper(Single Sheet) | WIDTH:- 100 - 420 mm LENGTH:- 148 - 420 mm Thickness:- 0.065 - 0.14 mm |
|
| Continuous Paper(Multi part)) | Width:-100 - 420 mm Length:- 148 - 420 mm Thickness 0.12 - 0.46 mm |
|
| COPIES | 1 Original + 6 Copies | |
| LINE SPACING | 4.23mm (1/6”) or programmable in increments of 0.0706mm (1/360”) | |
| Acoustic Noise | - | 54 dB |
| INPUT DATA BUFFER | - | 128 KB |
| INTERFACE | STANDARD | Bi-directional Parallel Interface (IEEE-1284 nibble mode supported), USB 2.0 (Full Speed), Type B I/F Level 2 (Option) |
| RIBBON CARTRIDGE | STANDARD FABRIC RIBBON CARTRIDGE (BLACK) RIBBON LIFE | 15 Million Characters |
| RELIABILITY | MEAN PRINT VOLUME BETWEEN FAILURE (MVBF) | 40 million lines (Except print head) |
| MEAN TIME BETWEEN FAILURE (MTBF) | 20,000 POH (25% Duty Cycle) | |
| PRINT HEAD LIFE | Approx. 400 million strokes/wire | |
| CONTROL PANEL | - | 6 switches and 10 LEDs are located on the panel |
| Environmental Conditions | Temperature | 5 - 35°C (Operating*2), 15 - 25°C (Operating*2 *3) |
| Humidity | 10 - 80% RH (Operating*2), 30 - 60% RH (Operating*2 *3) | |
| Electrical Specification | Rated Voltage | AC 220 - 240 V |
| Rated Frequency | 50 - 60 Hz | |
| Power Consumption | Approx. 46W (ISO/IEC10561 Letter Pattern) (Energy STAR Compliant) Sleep Mode :- Approx. 3W Power Off:- 0W in powered off mode |
|

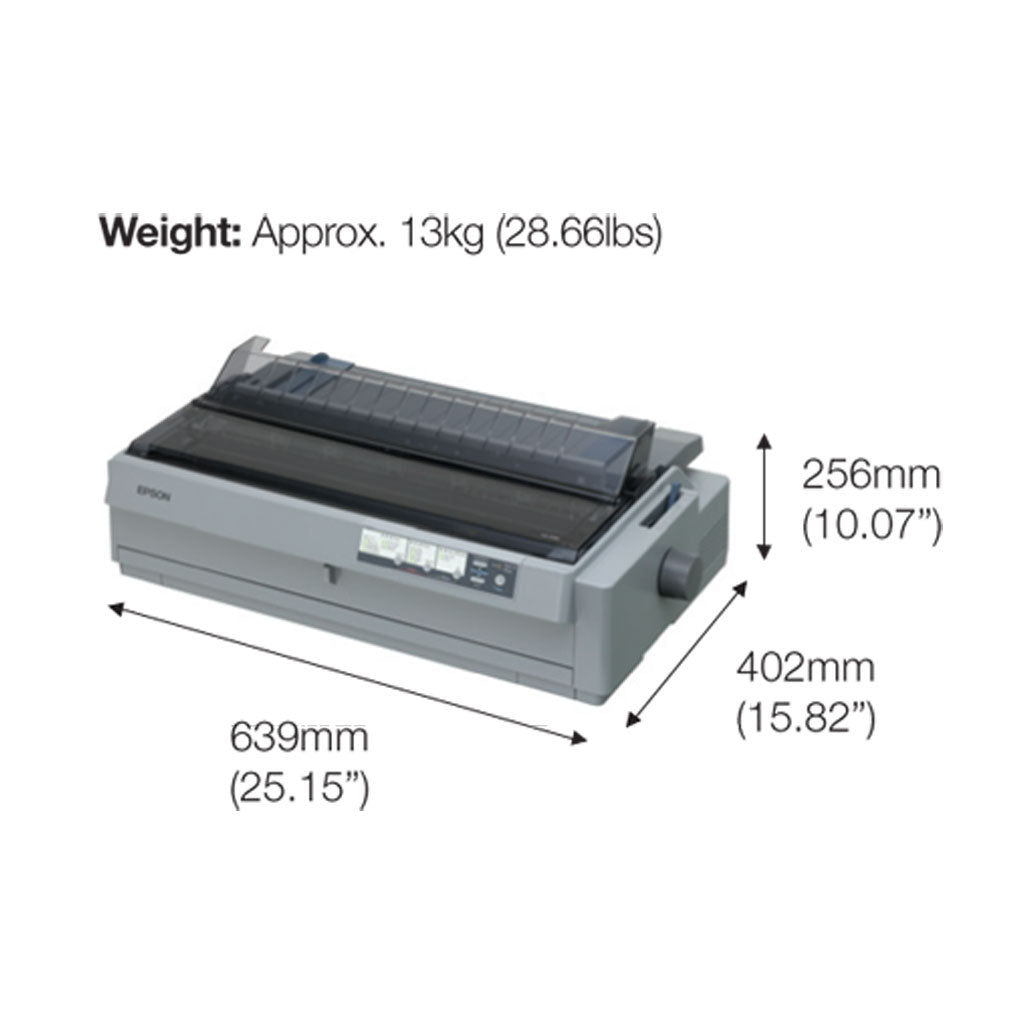

| Dimensions & Weight | Dimensions (W x D x H) | 639 mm x 402 mm x 256 mm |
| Weight | Approx. 13 Kg |
