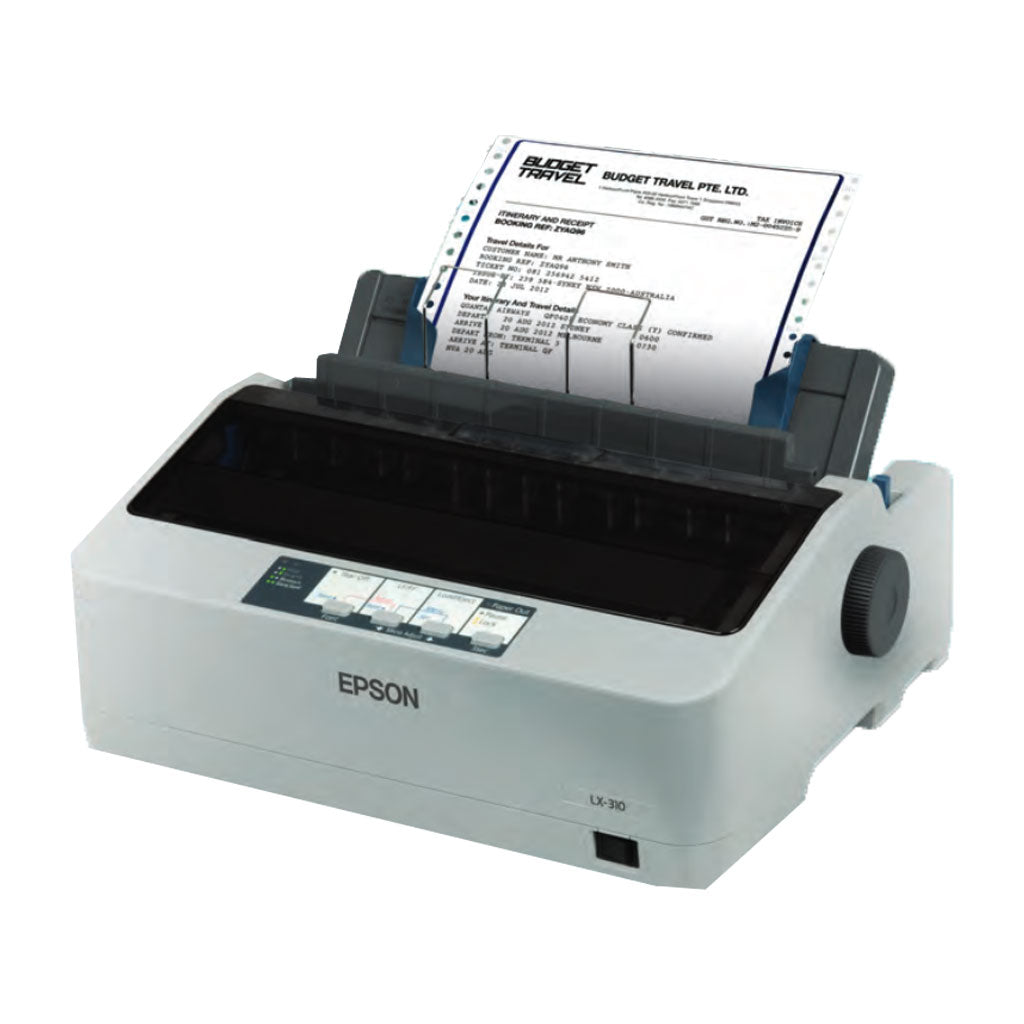

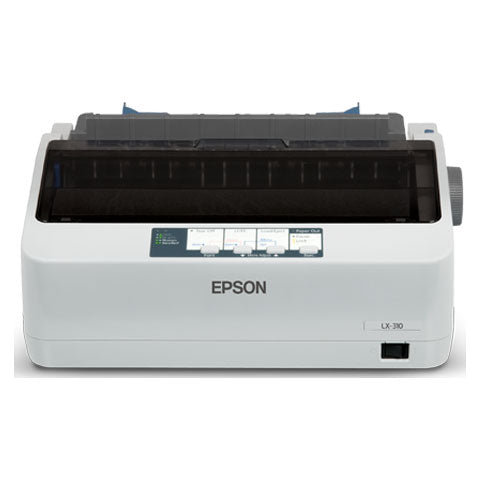

LX-310 Serial Impact Dot Matrix Printer
| Brand | - | EPSON |
| Model | - | LX-310 |
| Printer Type | PRINTING METHOD | Impact dot matrix |
| NUMBER OF PINS IN HEAD | 9 pins | |
| PRINT DIRECTION | Bi-directional with logic seeking | |
| Control Code | ESC/P and IBM PPDS emulation | |
| Printer Speed | HIGH SPEED DRAFT 10 / 12 / 15 cpi | 347 / 357 / 390 cps |
| High Speed Draft Condensed 17 / 20 cpi | 383 / 298 cps | |
| DRAFT 10 / 12 / 15 cpi | 260 / 312 / 223 cps | |
| DRAFT Condensed 17 / 20 cpi | 222 / 260 cps | |
| Draft Emphasized 10 cpi | 130 cps | |
| NLQ 10 / 12 / 15 / 17 / 20 cpi | 65 / 78 / 55 / 47 / 56 cps | |
| Print Characteristics | Character Sets | 14 International Character Sets |
| Bitmap Fonts | Epson Draft: 10, 12, 15 cpi; Epson Roman & Sans Serif: 10, 12, 15 cpi, Proportional; | |
| Barcode Fonts | EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code 39, Code 128, Postnet | |
| Printable Columns | Pitch | 10CPI - 80cpl 12CPI - 96cpl 15CPI - 120cpl 17CPI - 137cpl 20CPI - 160cpl |
| Paper / Media Handling | Paper Path | Tractor :- Rear in, Top out Manual Insertion :- Rear in, Top out |
| Paper Size (Cut Sheet (Single Sheet) ) | WIDTH:- 100 ~ 257mm LENGTH:- 100 ~ 364mm Thickness:- 0.065 ~ 0.14mm |
|
| Paper Size(Multi part)) | WIDTH:-100 ~ 257mm LENGTH:- 100 ~ 364mm Thickness:- 0.12 ~ 0.39mm |
|
| Roll Paper | WIDTH:-216mm Thickness:- 0.07 ~ 0.09mm |
|
| COPIES | Original + 4 Copies | |
| LINE SPACING | 4.23mm (1/6") or programmable in increments of 0.118mm (1/216") | |
| Acoustic Noise | - | Approx. 53 dB(A) (ISO 7779 pattern) |
| INPUT DATA BUFFER | - | 128 KB |
| INTERFACE | STANDARD | Bi-directional parallel (IEEE-1284 nibble mode supported)USB 2.0 Full-Speed |
| RIBBON CARTRIDGE | STANDARD FABRIC RIBBON CARTRIDGE (BLACK) RIBBON LIFE | Approx. 4.0 million characters (Draft 10 cpi, 14 dots/character) |
| RELIABILITY | Mean Print Volume Between Failure (MVBF) | Approx. 20 million lines (Except print head) |
| Mean Time Between Failure (MTBF) | 20,000 POH (25% Duty Cycle) | |
| PRINT HEAD LIFE | Approx. 400 million strokes/wire | |
| CONTROL PANEL | - | 4 switches and 5 LEDs |
| Environmental Conditions | Temperature | 5 ~ 35°C |
| Humidity | 10 ~ 80 % RH | |
| Electrical Specification | Rated Voltage | AC 220 - 240 V |
| Rated Frequency | 50 - 60 Hz | |
| Power Consumption | Operating :-Approx. 27W (ISO/IEC 10561 Letter pattern) Sleep Mode:-Approx. 1.1W Auto Off Mode :- Approx. 0.3W Power Off :- 0W |
|

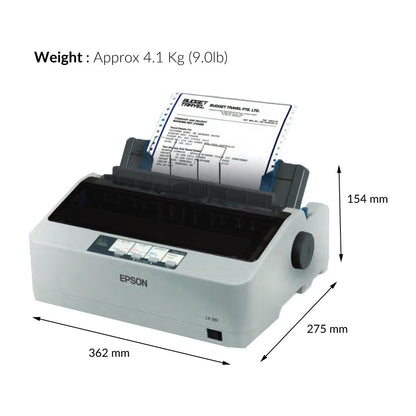

| Dimensions & Weight | Dimensions (W x D x H) | 362 mm x 275 mm x 154 mm |
| Weight | Approx. 4.1 Kg |
