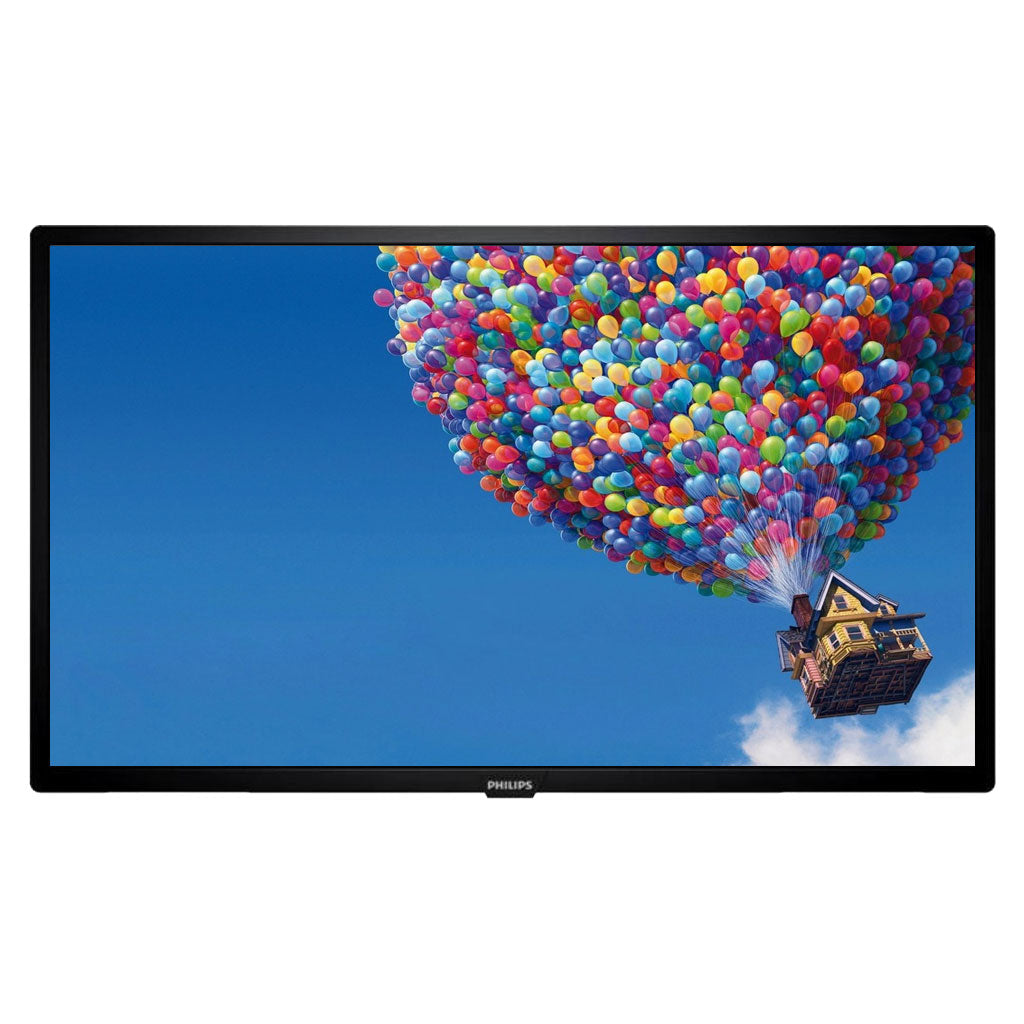

Model - 32BDL3056Q
Connectivity-HDMIx3/USBx2/RJ45 Composite AV/Inbuilt WIFI/Inbuilt Android
CMND
A robust display management platform, CMND puts the power back into your hands. Update and manage content with CMND & Create or control your settings with CMND & Control. It's all possible with CMND.
CMND & Control
With CMND & Control, easily manage multiple displays in a central location. With real time display monitoring, setting and software updates from a remote location, and the ability to customize and configure multiple displays at once, such as video wall or menu board displays, controlling your suite of displays has never been easier.
CMND & Create
Design and create compelling content with CMND & Create, a powerful authoring tool. With a drag and drop interface, preloaded templates, and integrated widgets, you'll be able to amaze your customers with compelling content. Available in portrait and landscape mode.
SmartPlayer
Turn your USB into a true cost effective digital signage device. Simply save your content (video, audio, pictures) on your USB and plug into your display.Create your playlist and schedule your content via the on screen menu, and enjoy your own created playlists anytime, anywhere.
FailOver
Keeping your content up and running is critical for demanding commercial applications. While it is unlikely you will face a content disaster, FailOver provides 24/7 protection with a revolutionary technology that plays back-up content on screen in the event of a media player failure. FailOver automatically kicks in when the primary input fails. Simply select a primary input connection and a FailOver connection and your ready for instant protection.
FailOver for Meeting Rooms
Using FailOver, simplify your presentations and videoconferencing. When a meeting or conference room is not in use, background content can run from whatever input source you choose. When the meeting starts and you need to share a presentation or your screen, simply connect your computer and the display automatically switches inputs and shows what's on your screen, with no need to manually switch inputs.
Full HD LED technology
Picture Quality matters. Regular displays deliver quality, but you expect more. Imagine crisp detail paired with high brightness, incredible contrast and realistic colors for a true to life picture.
SmartBrowser
Connect and control your content via the cloud with the integrated HTML5 browser. Design your signage content online and connect it with a display or with your complete network. Simply plug in a RJ45 internet cable for network connection, connect the display with the dedicated url-address and you are ready to play your cloud based content.
Picture/Display | |
Diagonal screen size (metric) | 80 cm |
Diagonal screen size (inch) | 32 inch |
Panel resolution | 1366 x 768p |
Optimum resolution | 1366 x 768 @ 60 Hz |
Aspect ratio | 16:9 |
Viewing angle (H / V) | 178 / 178 degree |
Display colors | 16.7 Million |
Brightness: |
240 cd/m² |
Contrast ratio (typical) | 1200:1 |
Pixel pitch | 0.51075 x 0.51075 mm |
Response time (typical) | 8 ms |
Supported Display Resolution | |
Computer formats | 1360 x 768, 60Hz 1024 x 768, 60Hz 1280 x 1024, 60Hz 1280 x 768, 60Hz 640 x 480, 60Hz 800 x 600, 60Hz |
Video formats | 480p, 60Hz 576p, 50Hz 720p, 50, 60Hz 480i, 30, 60Hz 576i, 25, 50Hz 720p, 60Hz |
Connectivity | |
Video input | USB, AV (x1), HDMI (x3) |
External control | RJ45 |
Convenience | |
Screen saving functions | Pixel Shift, Low Brightness |
Keyboard control | Hidden |
Network controllable | LAN (RJ45) |
Placement: | Landscape (16/7) |
Operating conditions | |
Temperature range (operation) | 0 ~ 40 °C |
Relative humidity | 10 ~ 80 % |
MTBF | 30,000 hour(s) |
Temperature range (storage) | -20 ~ 60 °C |
POWER | |
Consumption (On mode) | 55 W |
Standby power consumption | <0.5 W |
Sound | |
Built-in speakers | 2 x 6W RMS |
Multimedia Applications | |
USB Playback Video | MP4, MPG, WMV, AVI, MOV |
USB Playback Picture | BMP, JPEG, PNG |
USB Playback Audio | AAC, WAV, AC3 |
Accessories | |
Included accessories | Remote Control, Batteries for remote control, Quick start guide |
PHYSICAL SPECIFICATION | |
Bezel width | 13.3 (Top/Left/Right) 17.6 (Bottom) mm |
Set dimensions (W x H x D) | 731.5 x 430.2 x 73.2 mm |
Set dimensions in inch (W x H x D) | 28.80 x 16.94 x 2.88 inch |

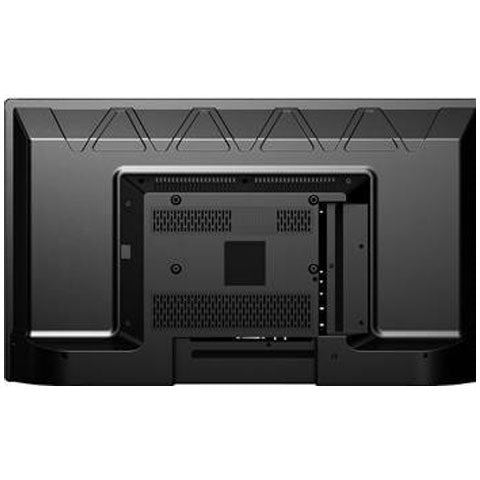

VESA Mount | 200 x 100 mm |
Product weight | 4.4 kg |
Product weight (lb) | 9.70 lb |
