ThinPC

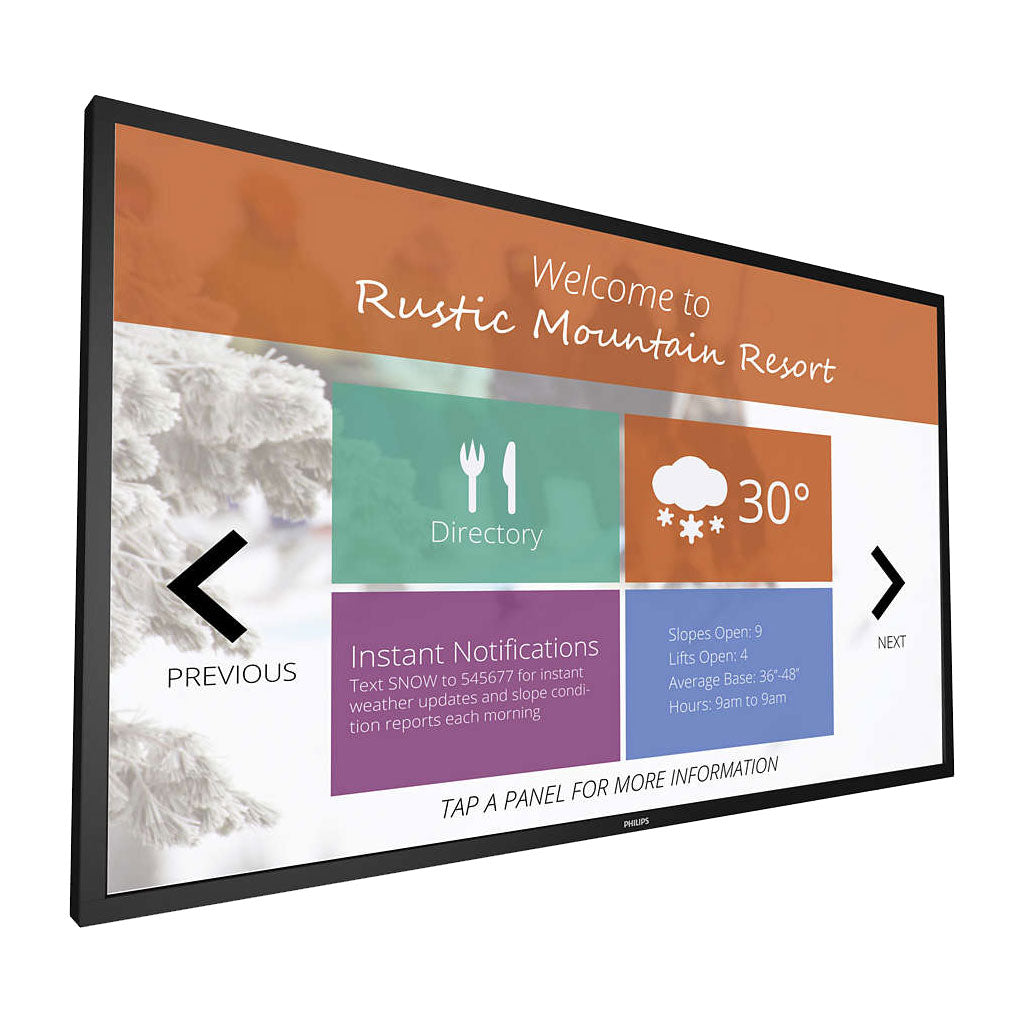

Model - 43BDL4051T / Inbuilt Web Browsing / W-Fi / Inbuilt Android / HDMI / DVI / VGA / RS232 / USB/ RJ-45

Model - 43BDL4051T / Inbuilt Web Browsing / W-Fi / Inbuilt Android / HDMI / DVI / VGA / RS232 / USB/ RJ-45

Regular price Rs. 150,000.00
Regular price Sale price Rs. 150,000.00
Sale Sold out
Tax included.
View full details

Model - 43BDL4051T
Connectivity - HDMI / DVI / VGA / RS232 / USB/ RJ-45 / Inbuilt Web Browsing/ Built -in-Speakers 10W+10W./ Integrated Wi-Fi / Inbuilt Android

Plug & Play Multi-Touch
A brand new level of interactivity is now available thanks to integrated touch technology. More flexibility and optimum simultaneous touch performance coupled with excellent operability opportunities to give you the ultimate in user interaction. The Multi-Touch displays are enabled with automatic touch recognition. The USB connector is HID compliant, providing true plug-and-play operation.

Anti-glare glass
With this integrated touch display, the anti-glare glass with low optical parallax allows for the most immersive touch experience. With little to no glare and low reflection on the display, images are crystal clear with pure color and great clarity.

Powered by Android
WIth Android OS integrated into the display, you can work with the most developed OS on the planet and save your own app directly into the display. Or, choose from the large library of Android apps and play content from there. With the built-in scheduler, you can daypart your apps and content based on your customer and time of day and with the auto orientation feature, showing content in portrait or landscape is as simple as turning the display.

FailOver
Keeping your content up and running is critical for demanding commercial applications. While it is unlikely you will face a content disaster, FailOver provides content protection with a revolutionary technology that plays back-up content on screen in the event of a media player failure. FailOver automatically kicks in when the primary input fails. Simply select a primary input connection and a FailOver connection and your ready for instant protection.

Internal Memory
Save and play content with internal memory. Upload your media into the display and playback content immediately. Working in conjunction with the internal browser, it also serves as a memory cache when streaming online content. If the network ever fails, the internal memory keeps content running by playing a cached version of the content, ensuring that your media stays up even if the network goes down.

PCI Slot
With an integrated PCI slot, you can connect an extra WiFI/bluetooth or 4G LTE module, allowing for even greater communication with the display. Machine to machine communication is also enhanced, with numerous configurations available for customers to use, such as the ability to expand product features or signal-handling capability.

CMND
A robust display management platform, CMND puts the power back into your hands. Update and manage content with CMND & Create or control your settings with CMND & Control. It's all possible with CMND.

Picture/Display
Diagonal screen size (metric) 108.0 cm
Diagonal screen size (inch) 43 inch
Optimum resolution 1920 x 1080 @ 60Hz
Brightness 450 cd/m²
Contrast ratio (typical) 1100:1
Dynamic contrast ratio 500,000:1
Aspect ratio

16:9

Response time (typical) 12 ms
Pixel pitch 0.49 x 0.49 mm
Display colors 16.7 million
Viewing angle (H / V) 178 / 178 degree
Picture enhancement 3/2 - 2/2 motion pull down, 3D Combfilter, Motion compens. deinterlacing, Progressive scan, 3D MA deinterlacing, Dynamic contrast enhancement
Panel resolution 1920 x 1080p
Surface treatment Anti-Glare coating
Interactivity
Multi-touch technology Infrared touch
Touch points 10 simultaneous touch points
Plug and play HID compliant
Protection glass 5 mm tempered safety glass, Anti-Glare, Anti-Reflective
Connectivity
Video input DisplayPort (1.2), HDMI (x2), DVI-D, USB
Video output DisplayPort, DVI-I
Audio input: 3.5 mm jack, Audio Left/Right (RCA)
Audio output Audio Left/Right (RCA), External speaker connector
External control RJ45, RS232C (in/out) 2.5 mm jack, IR (in/out) 3.5 mm jack
Other connections mPCIe, micro SD, micro USB, USB power outlet (5 V. 2 amp)
Supported Display Resolution
Computer formats 640 x 480 60, 67, 72, 75Hz
800 x 600 56, 60, 72, 75Hz
1024 x 768, 60Hz
1280 x 768, 60Hz
1280 x 800, 60Hz
1280 x 1024, 60Hz
1360 x 768, 60Hz
1366 x 768, 60Hz
1440 x 900, 60Hz
1600 x 1200, 60Hz
1920 x 1080, 60Hz
1920 x 1200, 60Hz
Video formats

480i, 60Hz
480p, 60Hz
576p, 50Hz
576i, 50Hz
720p, 50, 60Hz
1080i, 50, 60Hz
1080p, 50, 60Hz

Convenience
Placement Landscape (24/7), Portrait (24/7)
Energy saving functions Smart Power
Keyboard control Hidden, Lockable
Signal Loop Through RS232, VGA, IR Loopthrough, DisplayPort, DVI
Network controllable RS232, RJ45, One Wire (HDMI-CEC), HDMI (One Wire)
Picture performance Advanced color control
Picture in picture PIP
Screen saving functions Pixel Shift, Low Brightness
Remote control signal Lockable
Other convenience Carrying handles
POWER
Standby power consumption <0.5 W
Mains power 100 ~ 240 VAC, 50/60Hz
Consumption (Typical) 59 W
Operating conditions
Temperature range (operation) 5 ~ 40 °C
Temperature range (storage) -20 ~ 60 °C
Relative humidity 20 ~ 80 %
MTBF 50,000 hour(s)
Altitude 0 ~ 3000 m
Sound
Built-in speakers 2 x 10W RMS
Accessories
Included accessories AC Power Cord, RS232 cable, USB cable, Remote Control, Batteries for remote control, Quick start guide
Optional accessories ColourCalibrationKit (CCK4601)
Stand BM05922 (Optional)
Multimedia Applications
USB Playback Audio AAC, AIF, AIFF, ASF, LPCM, M3U, M4A, MP3, MP4, WAV, WMA
USB Playback Picture BMP, GIF, JPEG, JPG, PDF
USB Playback Video M2TS, M4V, MK3D, MKV, MP4, MPEG, MPG, MTS, TS, TTS, VOB, WMV
Internal Player
CPU Quad Core Cortex A9 1.8GHz
GPU ARM Mali400 Quad Core 533MHz
Memory 2GB DDR3
Storage 16GB EMMC

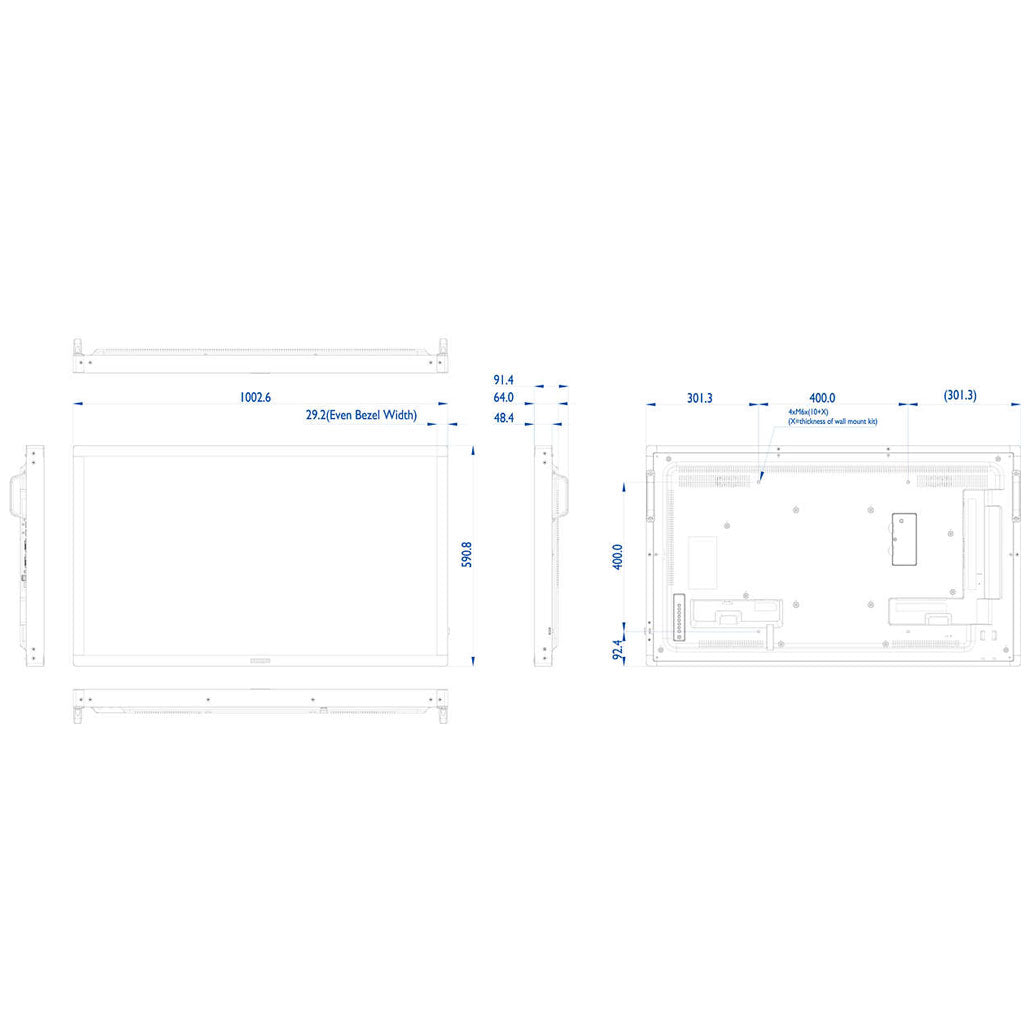

PHYSICAL SPECIFICATION
Bezel width 29.2 mm
Set dimensions (W x H x D) 1002.6 x 590.8 x 91.4 mm
VESA Mount 400 x 400 mm, M6
Product weight 19.4 kg
Product weight (lb) 42.77 lb
