Model - 43LV640S Commercial-Signage TV (16 x 7)IPS Panel | Full HD Resolution | VGA | HDMI(3) | USB(2) | AV | RF IN | RS232C IN | SmartShare, ScreenShare | Pre-loaded Youtube App & Web Browser | Built In Wi-Fi | LAN | External Speaker Out | Optical Digital Out | Built In Speakers | 400 nits
The LV640S series is a newly launched Smart TV Signage with easier content management possible. The series is especially designed for broadcasting TV programs and delivering advertisements simultaneously via a built-in TV tuner. Furthermore, with its improved content management solutions such as Content Manager, Group Manager, and enriched content via preloaded YouTube App and web browser, users can efficiently and timely deliver messages / promotions.
Content Manager
Without extra PC, content can be easily created using embedded templates and can be played according to its schedule managers set.
Group Manager
A Smart TV Signage itself works as a server, so without any extra device, a master TV can distribute content and set data on a selected group within the same network.
Enriched Smart Content
Customers can easily access to various content via pre-loaded YouTube app, web browser as well as live channel
ScreenShare
Connect a smartphone or a laptop PC to TV via a Wi-Fi Direct connection. The TV will display the device's screen, and users can share their content and memories together.
WOL
WOL (Wake on LAN) helps you remotely turn on TVs over the internet. Connect TVs and a PC in the same network, and send Magic Packet program to the MAC addresses of registered TVs. Then, it will wake up the TVs via LAN port.
SNMP
SNMP (Simple Network Management Protocol) ensures convenient network management for SI and business managers.
Built-in WiFi
With built-in WiFi, installation and content distribution have been simplified.
Fail Over (Internal Memory only)
The USB fail over function enables content to be displayed without dead spots when no input signal is available. This feature supports files in JPG format with a maximum file size of 10 MB.
RTC
Save time and improve convenience with RTC (Real Time Clock). When the TV's power is off, time information is stored on the RTC module via an internal memory, and a time sync process can be omitted as the TV turns on.
NTP
With NTP (Network Time Protocol), the TV receives real time updates from the networkand synchronizes its time accordingly.
| Panel Specification | |
| Type | Direct LED |
| Resolution | 1,920 x 1,080 (FHD) |
| Brightness | 400cd/m2 |
| Viewing Angle Degree | 178° / 178° |
| Response Time | 9 |
| Broadcasting System | |
| Analog | PAL/SECAM |
| Digital | DVB-T2/C/S2 |
| Video | |
| Picture Engine | XD Engine |
| Real Cinema 24p (3:3 Pull down) | • |
| Aspect Ratio | • 8 modes (16:9, Just scan, Original, Full Wide, 4:3, 14:9, Cinema Zoom 1, Zoom) |
| Audio | |
| Audio Output | 10W + 10W / 2.0 ch |
| Sound Mode | • 6 modes (Standard, Cinema, Clear Voice, Sports, Music, Game) |
| Clear Voice | • (Clear VoiceⅢ) |
| Feature | |
| Installation |
USB Cloning |
| Management | WOL (Wake on LAN), SNMP (Simple Network Management Protocol), Self Diagnostics, IR Out, Multi IR Code, HDMI-CEC |
| Hospitality | Hotel Mode, Lock Mode, Welcome Screen, Insert Image, One Channel Map, External Speaker Out, Content Manager, Group Manager, Crestron Connected® Certification, RTC (Real Time Clock), NTP sync timer |

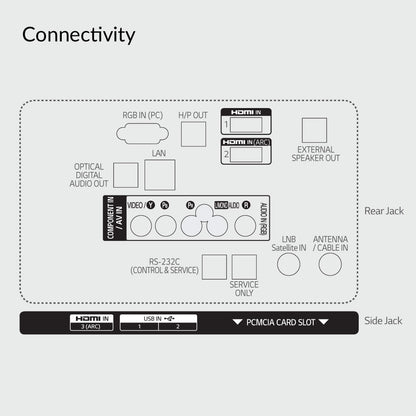

| Interface | |
| Side | HDMI In, USB (2), CI Slot |
| Rear | RF(2), AV In, Component In (RCA5), Digital Optical Audio Out, HDMI Input (2), RGB In, PC Audio Input (Sharing with Component Audio), RS-232C (Control & Service), Headphone Out, RJ45 (Ethernet), External Speaker |
| POWER (Unit : Watts) | |
| Voltage, Hz | 100-240V, 50/60Hz |
| Max | 97 |
| Typical | 74 |
| Energy Saving (Min) | 59.2 |
| Energy Saving (Med) | 40.7 |
| Energy Saving (Max) | 22.2 |
| Stand-by | 0.5 ↓ |

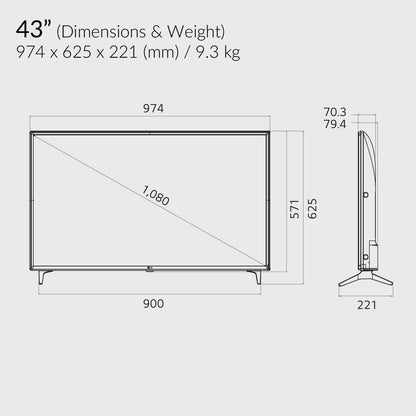

| Dimensions & Weight | |

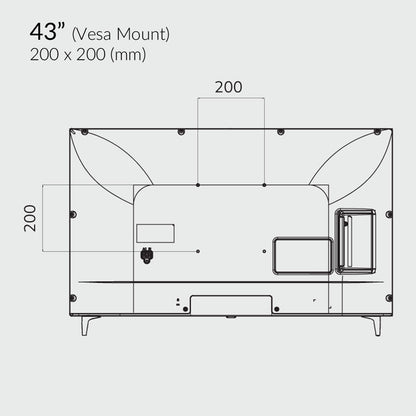

| Vesa | 200 x 200 |
| Dimension W x H x D (With Stand) | 974 x 625 x 220 (mm) |
| Dimension W x H x D (Packing) | 1,060 x 660 x 152 (mm) |
| Weight (With Stand) | 9.3kg |
| Weight (Packing) | 11.3kg |
