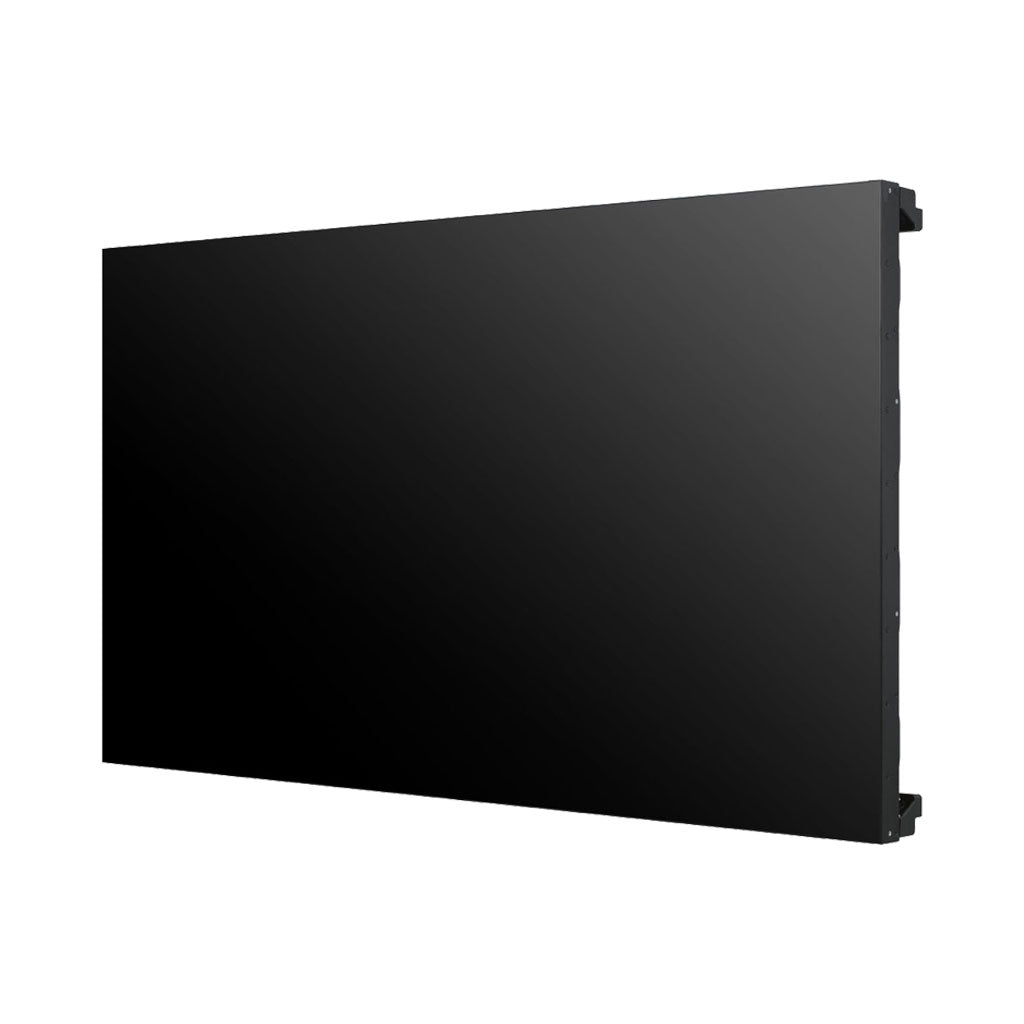

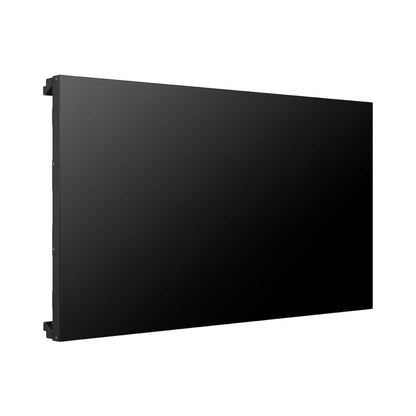

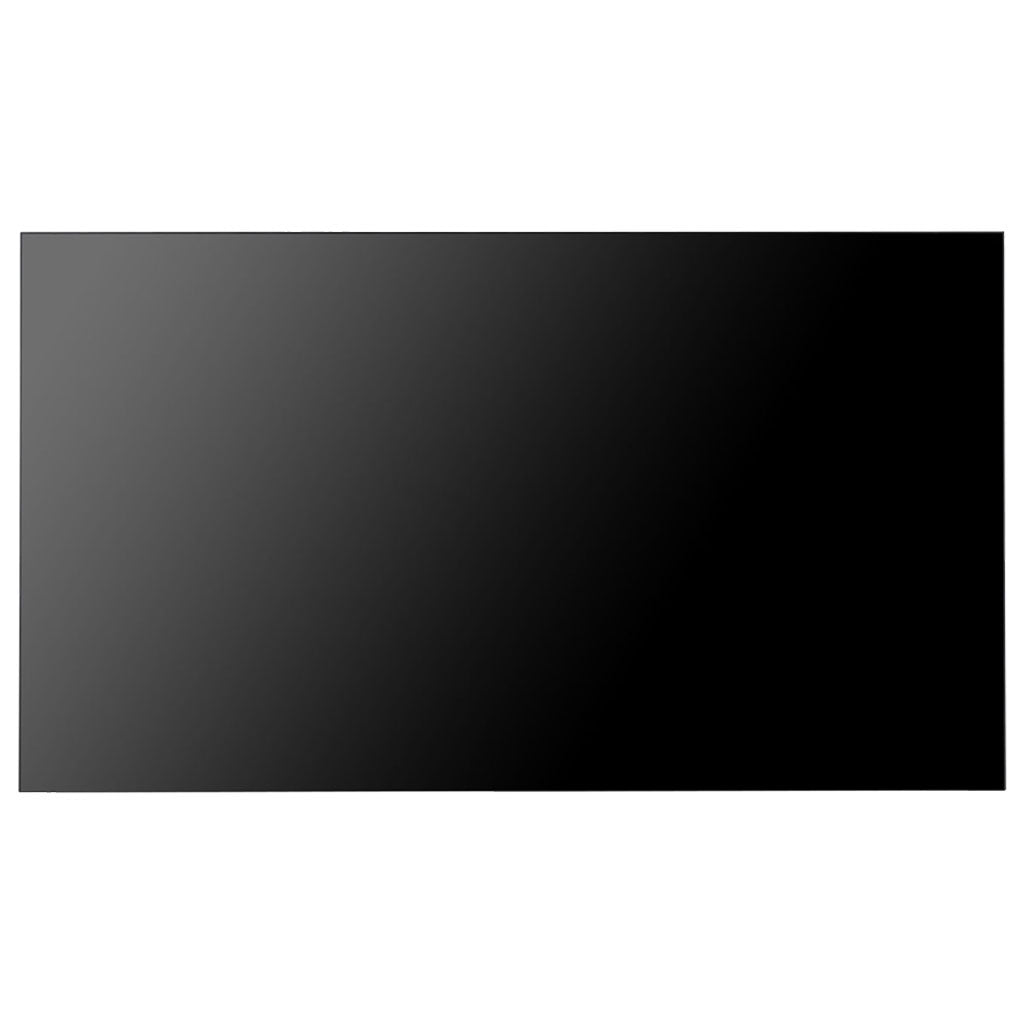

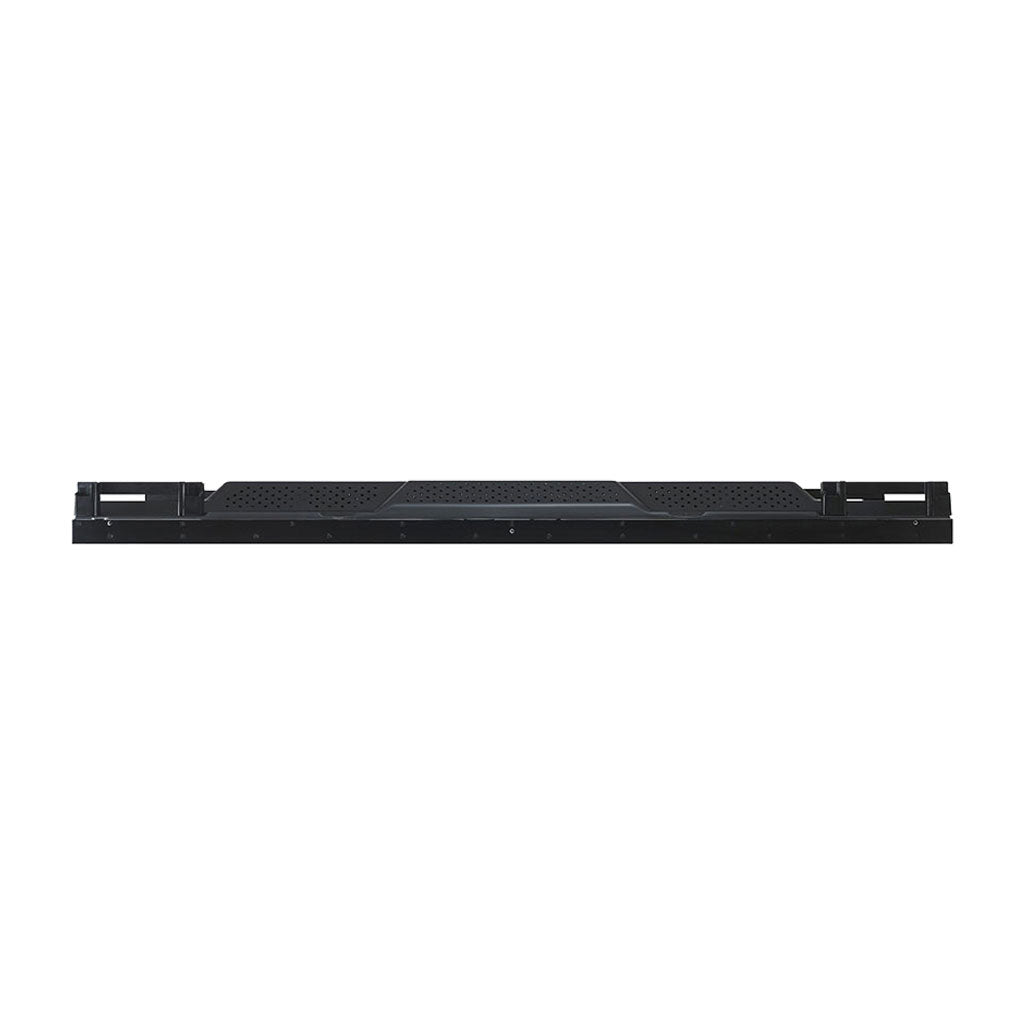

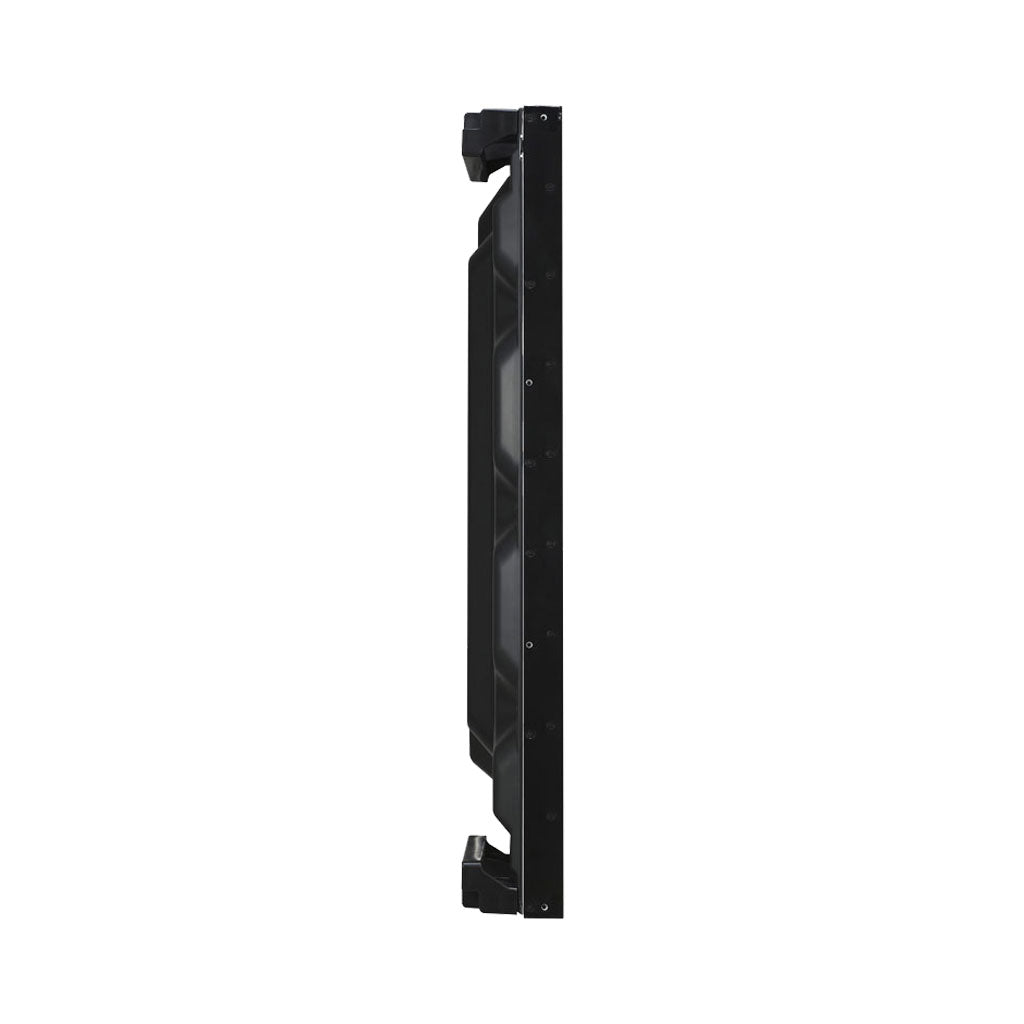

Model - 55LV75A FULL HD , VIDEO WALL / LANDSCAPE AND PORTRAIT MODE ,HDMI, USB, DVIX, DISPLAY PORT, SPEAKER
No Blackening Defect
Display has a built-in temperature control that adjusts to light and heat eliminating dark or blackened areas.
True Wide Viewing
Color changes and distortion are eliminated from any viewing angle. Color change average @ 60°, Gamma change average @ 60°
Panel Stability
Minimized image distortion when external pressure is applied

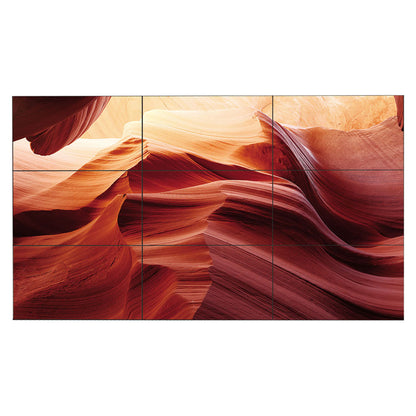

Slimmer Bezel
4.9mm, the slimmest bezels create powerful and impactful video walls.
Auto Calibration
WV Series provide Automatic Calibration solution which enables to save time and labor on installation by adjusting the white balance on video wall easily.
Auto Higher Resolution
WV50 supports Full HD. You can enjoy super fine image from each and every displays composing video wall.
| PANEL SPECIFICATION | |
| Screen Size | 55" (54.64" measured diagonal) |
| Resolution | IPS |
| Aspect Ratio | 16 : 9 |
| Native Resolution | 1920 x 1080 (FHD) |
| Brightness | 500cd/m² |
| Contrast Ratio | 1,400:1 |
| Dynamic CR | 500,000 : 1 |
| Viewing Angle (H x V) |
178 x 178 |
| Response Time | 12ms (G to G) |
| Surface Treatment | Hard coating(3H), Anti-glare treatment of the front polarizer (Haze 10%) |
| Life time | 60,000 Hrs |
| Orientation | Portrait & Landscape |
| CONNECTIVITY | |
| Input (Rear) | Digital : DVI-D (1), HDMI (2), Display Port (1) with HDCP for input Analog : RGB (1), Shared Component, AV (1) Audio : PC Audio In (1) External Control : RS232C (1), RJ45 (1), IR Receiver (1) USB : USB (1) |
| Output (Rear) | Digital : Display Port(1) Audio : Audio Out(1) External Control : RS232C(1) |
| SPECIAL FEATURES | |
| Temperature Sensor | Yes |
| Cooling FAN | No |
| Tile Mode | Yes, Up to 15 x 15 |
| Natural mode @Tile mode | Yes |
| Source Selection | RGB / DVI-D / HDMI / Component / AV / Display Port / USB |
| Brightness / Contrast / Backlight | Yes |
| Position/Size | Yes |
| Auto Config/Phase | Yes |
| ISM Method | Normal, Orbiter, inversion, White wash |
| Input Label | Yes |
| Auto Power/Source Memory | Yes |
| DPM Select | Yes |
| Energy Saving | Yes, Off / Minimum / Medium / Maximum / Screen Off |
| Smart Energy Saving | Yes |
| Environment Conditions | |
| Operation Temperature | 0°C ~ 40°C |
| Operation Humidity | 10% ~ 80% |
| POWER (Unit : Watts) | |
| Power Supply | 100-240V~, 50/60Hz |
| Power Type | Built-in Power |
| Power Consumption | Typ. :- 160W Smart Energy Saving :- 130W DPM :- 0.7W Power Off :- 0.5W |
| Media Player Compatibility | |
| External Media Player Attachable | Yes |
| PHYSICAL SPECIFICATION | |
| Color | Black |
| Bezel Width | 2.25mm (left/top), 1.25mm (right/bottom) |
| VESATM Standard Mount Interface | 600mm x 400mm |
| Monitor Dimension(W x H x D) | 1213.4 x 684.2 x 88.5 mm |
| Weight (Head) | 23kg |
| Carton Dimensions(W x H x D) | 1337 x 828 x 239mm |
| Packed Weight | 30.3kg |
| Handle | Yes |
