Model - 55LW540S FULL HD, Welcome Screen/ Video, SUPERSIGN , Ports – 2x HDMI, 1x USB, 1x VGA, AV, RF IN.
The 55LW540S includes a built-in TV tuner to broadcast TV programs and deliver advertisements simultaneously. This affordable solution allows you to create content and manage the display using the SuperSingh TM software. The 74 pre-installed templates make it easier than ever to create dazzling content for various verticals.
Simple Wi-Fi Connectivity
With Wi-Fi dongle support, distribution of advertisement content has been simplifi ed. By removing the need of an external media player and Ethernet/RS-232C cables, the total cost of ownership (TCO) can be reduced.
Fail Over (Internal Memory only)
The USB fail over function enables content to be displayed without dead spots when no input signal is available. This feature supports files in JPG format with a maximum file size of 10 MB.
RTC
Save time and improve convenience with RTC (Real Time Clock). When the TV's power is off, time information is stored on the RTC module via an internal memory, and a time sync process can be omitted as the TV turns on.
NTP
With NTP (Network Time Protocol), the TV receives real time updates from the network and synchronizes its time accordingly.
| PANEL SPECIFICATION | |
| Screen Size | 55" |
| Type | Edge LED |
| Native Resolution | 1,920 x 1,080 (FHD) |
| Brightness | 400 cd/m2 |
| Static Contract Ratio | 1,200:1 |
| Dynamic Contract Ratio | 100,000:1 |
| Viewing Angle (H x V) | 178 x 178 |
| Response Time | 9 |
| Frame Rate | 60 Hz |
| Guaranteed Operating Hour | 18 Hours / 7 Days (Moving Video Only) |
| Orientation | Landscape & Portrait |
| BROADCASTING SYSTEM | |
| Analog | PAL/SECAM |
| Digital | DVB-T2/C (Varied by Countries) *Philippiness : 6MHz available |
| VIDEO | |
| Triple XD Engine | Yes |
| Real Cinema 24p (3:3 pull down) | Yes |
| AUDIO | |
| Audio Output / Speaker System | 10W + 10W / 2.0 ch |
| Sound Mode | 6 mode (Standard, News, Music, Cinema, Soccer, Game) *India only : 6 modes (Standard, News, Bollywood, Cinema, Cricket, Game) |
| Clear Voice | Yes |
| GENERAL FEATURES | |
| Management | Diagnostics (USB) |
| Interactivity | HTNG / HDMI-CEC |
| Connectivity | MHL |
| RJP Interface | RS-232, HDMI |
| RJP Compatibility | Teleadapt (RS-232C) , Teleadapt / Guestlink (HDMI / CEC) |
| Advanced Setting Option | Auto Off / Auto Sleep, Motion Eye Care, Energy Saving |
| Anti-theft System | Kensington Lock |
| COMMERCIAL FEATURES | |
| Commercial | Hotel Mode, Lock Mode, IR Out, External Spaker Out, USB Auto Play Back, USB Cloning, One Channel Map, Multi IR Code, Welcome Screen / Video, Time Scheduler, SNMP, RTC, NTP, Wi-Fi Dongle Ready |
| INTERFACE | |
| Side | HDMI In, USB 2.0 (2) , CI Slot |

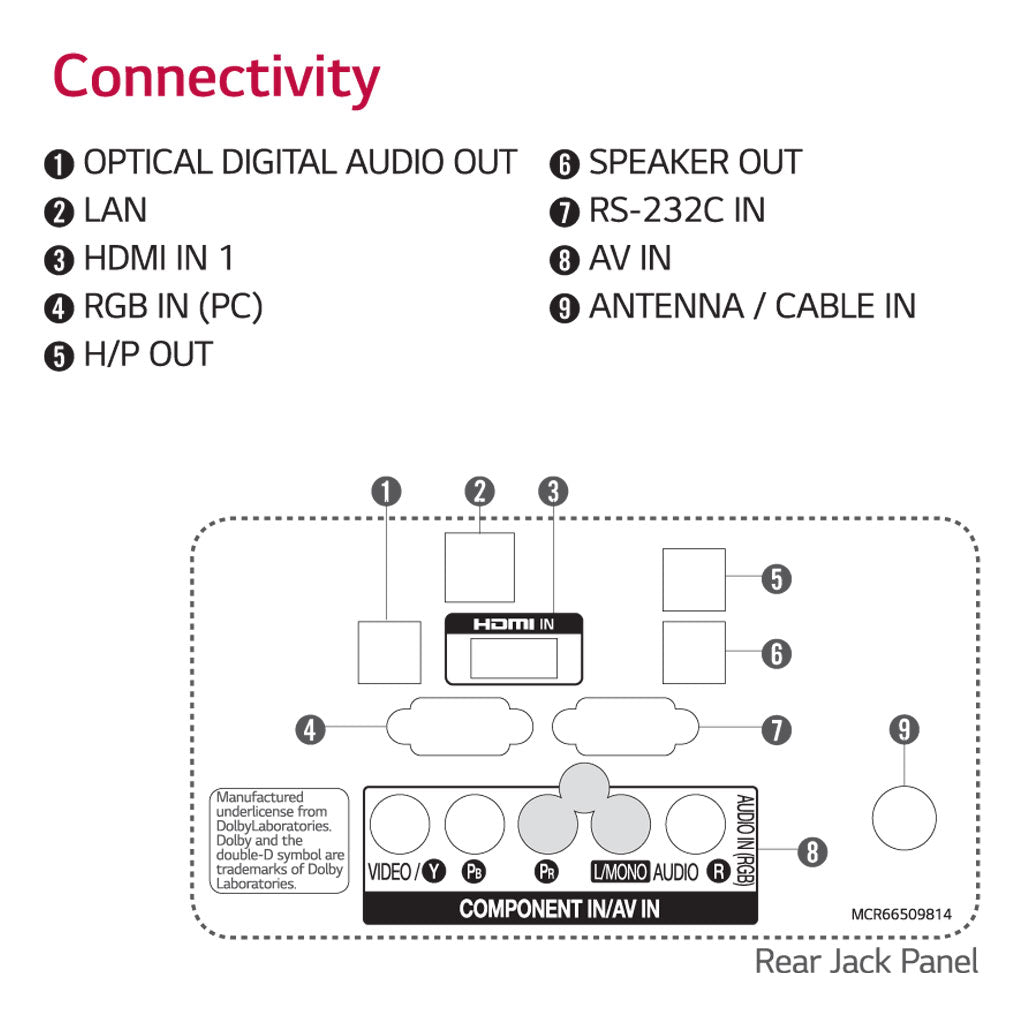

| Rear | RF In, Component In, Digital Audio Out (Optical) , RGB In, PC Audio Input (Sharing with Component) , RS-232C HDMI In, LAN Port, Headphone Out External Speaker Out |
| POWER (Unit : Watts) | |
| Voltage, HZ | 100 ~ 240V, 50/60Mz |
| Max | 122.3 |
| Typical (Watts) | 98.8 |
| Energy Saving (Min.) | 73.7 |
| Energy Saving (Med.) | 58.7 |
| Energy Saving (Max.) | 45.6 |
| Stand-by (Watts) | 0.20 |
| PHYSICAL SPECIFICATION | |
| Bezel Width (L/R, U, B) : on bezel based (mm) | 12.9, 12.9, 15.9 |
| Bezel Width (L/R, U, B) : off bezel based (mm) | 10.4, 10.4, 13.4 |
| Vesa (mm) | 300 x 300 |
| W x H x D (Without Stand) | 1241 x 720 x 41.5 mm(SPK 63.0) |
| W x H x D (With Stand) | 1241 x 775 x 216 mm |
| W x H x D (Carton) | 1360 x 835 x 152 mm |
| Weight (Without Stand) | 16.3 Kg |
| Weight (With Stand) | 16.6 Kg |
| Weight (Carton) | 21.3 Kg |
