Model - 65BDL4050D
Connectivity - HDMI / DVI / VGA / RS232 / USB/ RJ-45 / Inbuilt Web Browsing/ Built -in-Speakers 10W+10W./ Integrated WIFI
Powered by Android
WIth Android OS integrated into the display, you can work with the most developed OS on the planet and save your own app directly into the display. Or, choose from the large library of Android apps and play content from there. With the built-in scheduler, you can daypart your apps and content based on your customer and time of day and with the auto orientation feature, showing content in portrait or landscape is as simple as turning the display.
PCI Slot
With an integrated PCI slot, you can connect an extra WiFI/bluetooth or 4G LTE module, allowing for even greater communication with the display. Machine to machine communication is also enhanced, with numerous configurations available for customers to use, such as the ability to expand product features or signal-handling capability.
Internal Memory
Save and play content with internal memory. Upload your media into the display and playback content immediately. Working in conjunction with the internal browser, it also serves as a memory cache when streaming online content. If the network ever fails, the internal memory keeps content running by playing a cached version of the content, ensuring that your media stays up even if the network goes down.
Proof of Play
Content is king, and with the automatic screenshot feauture, you can make sure that your content is up and running at all times. Screenshots are taken throughout the day, which are then stored in the FTP server. From there, the screenshots can be viewed no matter when, or where you are.
FailOver
Keeping your content up and running is critical for demanding commercial applications. While it is unlikely you will face a content disaster, FailOver provides 24/7 protection with a revolutionary technology that plays back-up content on screen in the event of a media player failure. FailOver automatically kicks in when the primary input fails. Simply select a primary input connection and a FailOver connection and your ready for instant protection.
FailOver for Meeting Rooms
Using FailOver, simplify your presentations and videoconferencing. When a meeting or conference room is not in use, background content can run from whatever input source you choose. When the meeting starts and you need to share a presentation or your screen, simply connect your computer and the display automatically switches inputs and shows what's on your screen, with no need to manually switch inputs.
SmartPower
The backlight intensity can be controlled and pre-set by the system to reduce the power consumption by up to 50%, which saves substantially on energy costs.
CMND
A robust display management platform, CMND puts the power back into your hands. Update and manage content with CMND & Create or control your settings with CMND & Control. It's all possible with CMND.
CMND & Control
With CMND & Control, easily manage multiple displays in a central location. With real time display monitoring, setting and software updates from a remote location, and the ability to customize and configure multiple displays at once, such as video wall or menu board displays, controlling your suite of displays has never been easier.
CMND & Create
Design and create compelling content with CMND & Create, a powerful authoring tool. With a drag and drop interface, preloaded templates, and integrated widgets, you'll be able to amaze your customers with compelling content. Available in portrait and landscape mode.
Picture/Display | |
Diagonal screen size (metric) | 166.37 cm |
Diagonal screen size (inch) | 65 inch |
Optimum resolution | 1920 x 1080 @ 60Hz |
Brightness | 450 cd/m² |
Contrast ratio (typical) | 1100:1 |
Dynamic contrast ratio | 500,000:1 |
Aspect ratio |
16:9 |
Response time (typical) | 12 ms |
Pixel pitch | 0.744 x 0.744 mm |
Display colors | 16.7 million |
Viewing angle (H / V) | 178 / 178 degree |
Picture enhancement | 3/2 - 2/2 motion pull down, 3D Combfilter, Motion compens. deinterlacing, 3D MA deinterlacing, Dynamic contrast enhancement, Progressive scan |
Panel resolution | 1920 x 1080p |
Connectivity | |
Video input | DisplayPort (1.2), HDMI (x2), DVI-D, USB, VGA (via DVI) |
Video output | DisplayPort, DVI-I, VGA (via DVI-D) |
Audio input: | 3.5 mm jack, Audio Left/Right (RCA) |
Audio output | Audio Left/Right (RCA), External speaker connector |
External control | RJ45, RS232C (in/out) 2.5 mm jack, IR (in/out) 3.5 mm jack |
Other connections | mPCIe, micro SD, micro USB, USB power outlet (5 V. 2 amp) |
Supported Display Resolution | |
Computer formats | 1920 x 1080, 60Hz 1440 x 900, 60Hz 1366 x 768, 60Hz 1360 x 768, 60Hz 1280 x 800, 60Hz 1280 x 768, 60Hz 1024 x 768, 60Hz 800 x 600, 56, 60, 72, 75Hz 640 x 480, 60, 67, 72, 75Hz |
Video formats |
1080p, 50, 60Hz |
Convenience | |
Placement | Landscape (24/7), Portrait (24/7) |
Tiled Matrix | Up to 15 x 15 |
Keyboard control | Hidden, Lockable |
Signal Loop Through | DVI, VGA, RS232, IR Loopthrough, DisplayPort |
Network controllable | RJ45, RS232, One Wire (HDMI-CEC), HDMI (One Wire) |
Energy saving functions | Smart Power |
Screen saving functions | Pixel Shift, Low Bright |
Ease of installation | Smart Insert |
Picture in picture | PIP |
POWER | |
Standby power consumption | <0.4 W |
Mains power | 100 ~ 240 VAC, 50 ~ 60 Hz |
Consumption (EPA 6.0) | 99 W |
Consumption (Typical) | 103 W |
Operating conditions | |
Temperature range (operation) | 0 ~ 40 °C |
Temperature range (storage) | -20 ~ 60 °C |
Relative humidity | 20 ~ 80 % |
MTBF | 50,000 hour(s) |
Altitude | 0 ~ 3000 m |
Sound | |
Built-in speakers | 2 x 10W RMS |
Accessories | |
Included accessories | Remote Control, Batteries for remote control, Quick start guide, RS232 cable, AC Power Cord |
Optional accessories | ColourCalibrationKit (CCK4601) |
Stand | BMO5922 (Optional |
Multimedia Applications | |
USB Playback Audio | AAC, AIF, AIFF, M4A, MP3, WAV, WMA, ASF, LPCM, M3U, MP4 |
USB Playback Picture | BMP, GIF, JPEG, JPG, PDF |
USB Playback Video | M2TS, M4V, MK3D, MKV, MP4, MPEG, MPG, MTS, TS, TTS, VOB, WMV |
Internal Player | |
CPU | Quad Core Cortex A9 1.8GHz |
GPU | ARM Mali400 Quad Core 533MHz |
Memory | 2GB DDR3 |
Storage | 16GB EMMC |

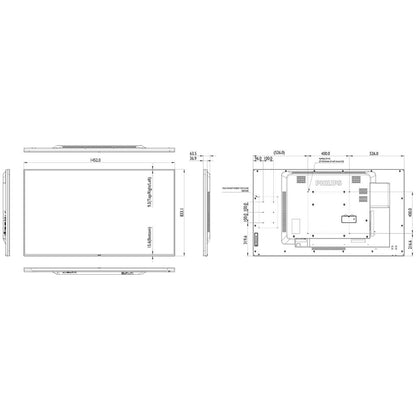

PHYSICAL SPECIFICATION | |
Bezel width | 9.5 (T/L/R) 15.6 (B) |
Set dimensions (W x H x D) | 1452.0 x 833.1 x 63.5 mm |
VESA Mount | 400 x 400, M6 |
Product weight | 29.8 kg |
Smart Insert mount | 100 x 100 mm, 100 x 200 mm |
