Model - 65UV340C 4K UHD, Ports - HDMI, USB, RS232C, RJ45, EXTERNAL SPEAKER OUT
The UV340C series has been designed for a wide variety of business environments and use cases, with UHD/4K resolution that provides an optimal viewing experience. The Crestron Connected® Certification and Display Power Management (DPM) features enable easy remote management. Other management features include Wake-On-Lan (WOL) and Simple Network Management Protocol (SNMP), creating even more flexibility in how the UV340C can be managed.
Public Display Mode
From channel selection to volume level, you can control the TV settings in public areas. Public Display Mode also enables you to restore default settings, as required, on the TVs.
RS-232C Control
Via the TV's RS-232C port, you can remotely control power and volume settings simultaneously.
WOL (Wake on LAN)
WOL (Wake on LAN) helps you remotely turn on TVs over the internet. Connect TVs and a PC in the same network, and send Magic Packet program to the MAC addresses of registered TVs. Then, it will wake up the TVs via LAN port.
Self Diagnosis
Self Diagnosis enables engineers and IT to engineers to analyze the data and identify technical issues quickly and easily through a USB memory device.
USB Cloning
Clone your UV340C's with efficiency and ease. The USB Cloning feature allows you to simply copy the TV settings to all the UV340C's using a USB memory device (sold separately).
| PANEL SPECIFICATION | |
| Screen Size | 65" (64.6" measured diagonal) |
| Type | Edge LED |
| Resolution | 3,840 x 2,160 (4K UHD) |
| Brightness | 500cd/m2 |
| Dynamic Contrast Ratio | 1,000,000:1 |
| Static (Panel) Contrast Ratio | 1,200:1 |
| Viewing Angle Degree | 178° / 178° |
| Response Time (G to G) |
8 |
| Frame Rate | T120 |
| BROADCASTING SYSTEM | |
| Analog | NTSC |
| Digital | ATSC / VSB / Clear QAM |
| VIDEO | |
| XD Engine | • |
| Real Cinema 24p (3:3 Pull down) | • |
| Aspect Ratio | 6 modes (16:9, Original, 4:3, Vertical Zoom, All-Direction Zoom, Just Scan) |
| AUDIO | |
| Audio Output / Speaker System | 10W + 10W / 2.0 ch |
| Sound Mode | 6 modes (Standard, Cinema, Clear Voice III, Sports, Music, Game) |
| Clear Voice | • |
| GENERAL FEATURES | |
| Installation | USB Cloning |
| Management | WOL, SNMP, Self Diagnostics via USB, Multi IR Code, HTNG/HDMI-CEC* *HDMI-CEC : Compatibility can differ by equipment. |
| USB | Moving Picture Playback (.asf, .wmv, .avi, .mp4, .m4v, .mov, .3gp, .3g2, .mkv, .mpg, .mpeg, .dat, etc.), Picture (jpeg, jpg, jpe, BMP, PNG), Audio Codec (.mp3, .wav, .OGG, .WMA, .flac) |
| Setting Option | Auto Off / Sleep Timer, Smart Energy Saving, Motion Eye Care |
| HOSPITALITY FEATURES | |
| Hospitality Features | PDM (Public Display Mode), Lock Mode, Welcome Screen (Splash Image) / Video, Insert Image, External Speaker Out, RJP Compatibility, Crestron Connected® Certification, DPM (Display Power Management) mode, Time Scheduler |
| INTERFACE | |
| Side | HDMI In (2), USB 2.0 |
| Rear | RF In, AV In (Sharing with Component In), Component In + Video, Optical Digital Audio Out, HDMI In, RS-232C In, RJ45 (SNMP), External Speaker Out |
| POWER | |
| Voltage, Hz | 100~240V, 50 / 60 Hz |
| Typical (Watts) | 68.0 |
| Stand-by (Watts) | 0.5↓ |
| PHYSICAL SPECIFICATION | |
| Bezel Width (L / R, U, B) : on bezel based (mm) | 9, 9, 13.8 |
| Bezel Width (L / R, U, B) : off bezel based (mm) | 7, 7, 12.3 |

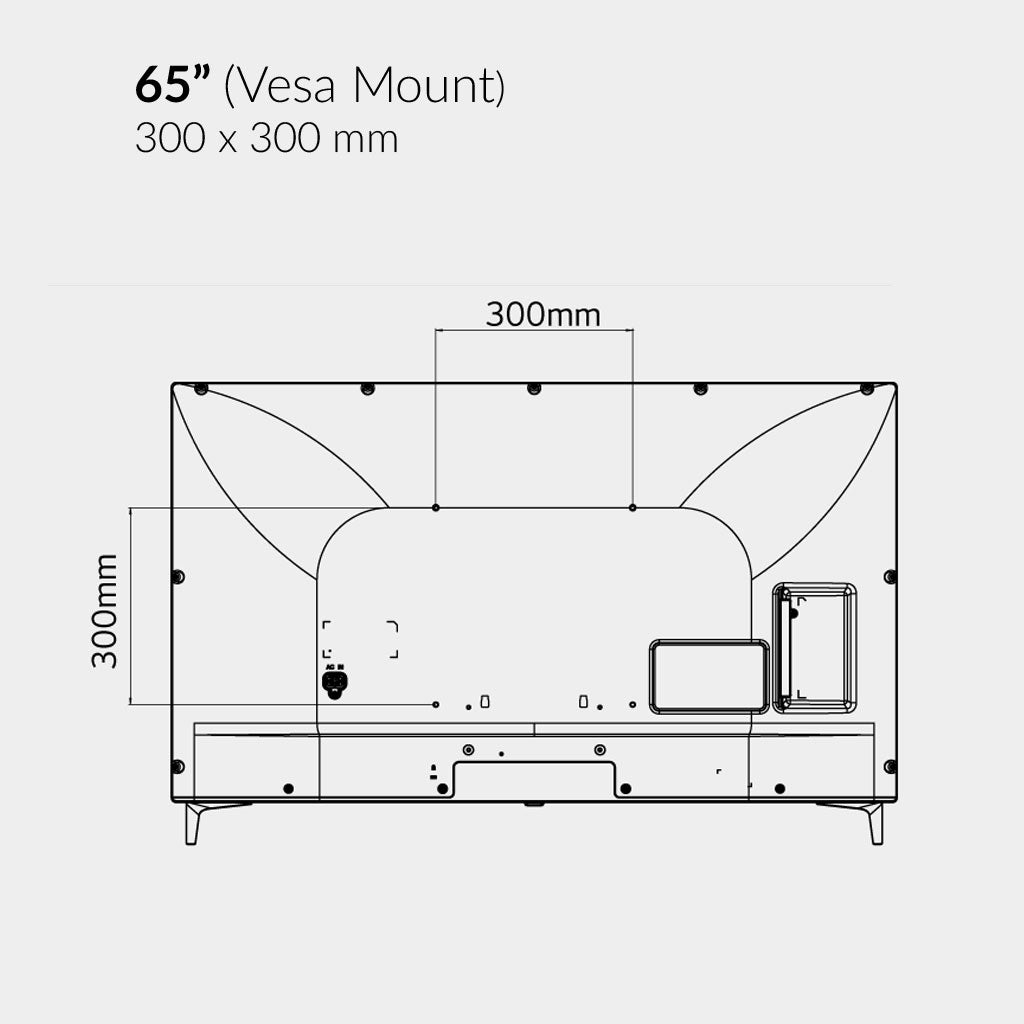

| Vesa (mm) | 300 x 300 |

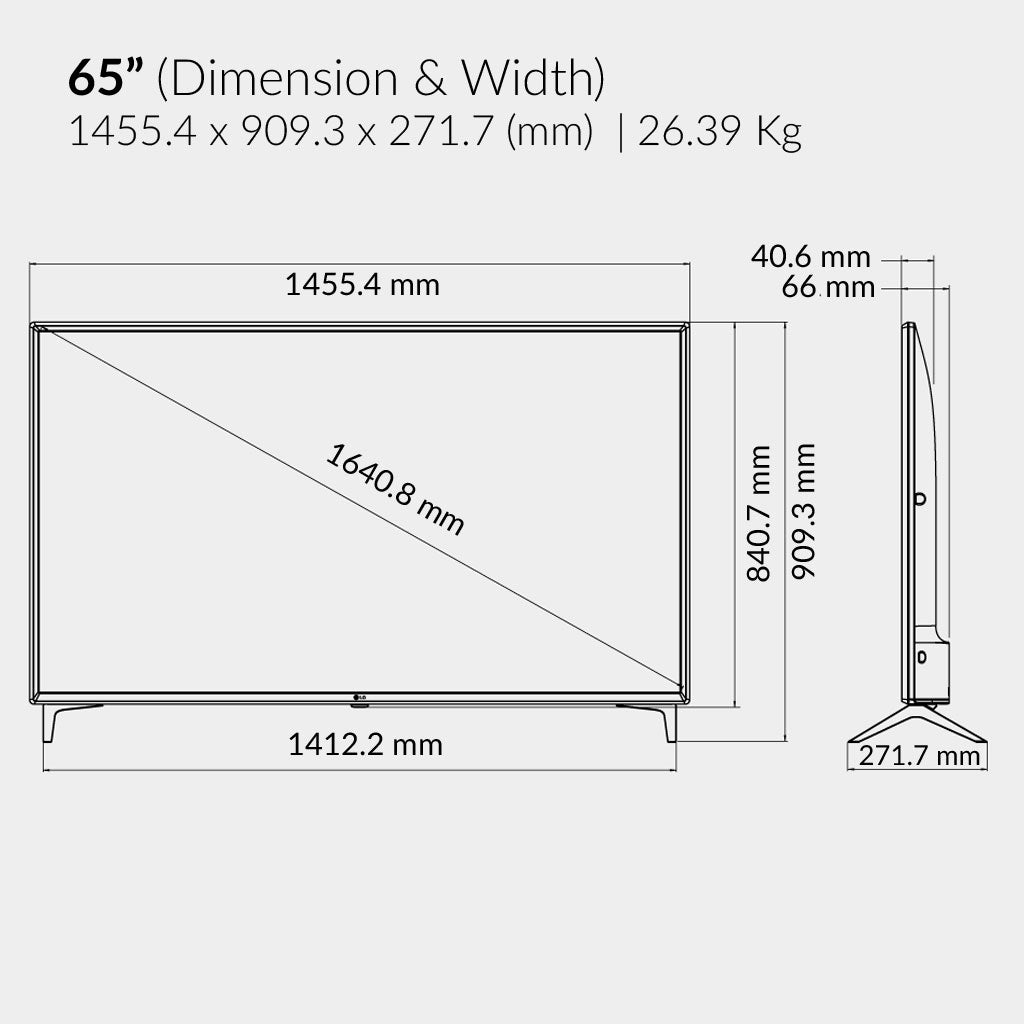

| Dimension WxHxD (without stand) | 1455.4 x 840.7 x 40.6 (mm) |
| Dimension WxHxD with stand) | 1455.4 x 909.3 x 271.7 (mm) |
| Dimension WxHxD (Carton) | 1600.2 x 970.2 x 175.2 (mm) |
| Weight (without stand) | 25.9 Kg |
| weight (with stand) | 26.3 Kg |
| weight (Carton) | 32.79 Kg |
