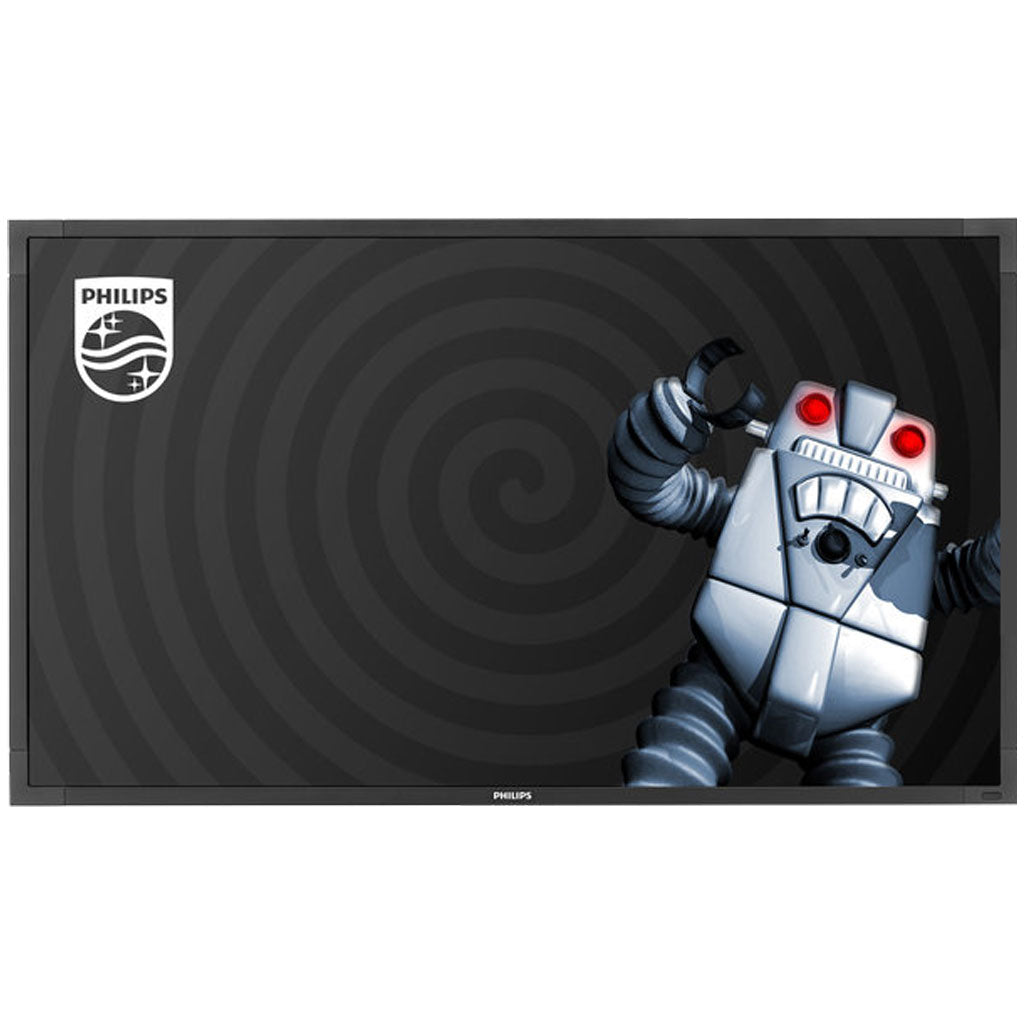

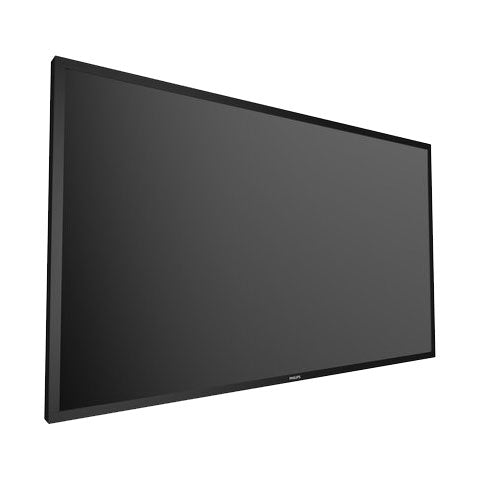

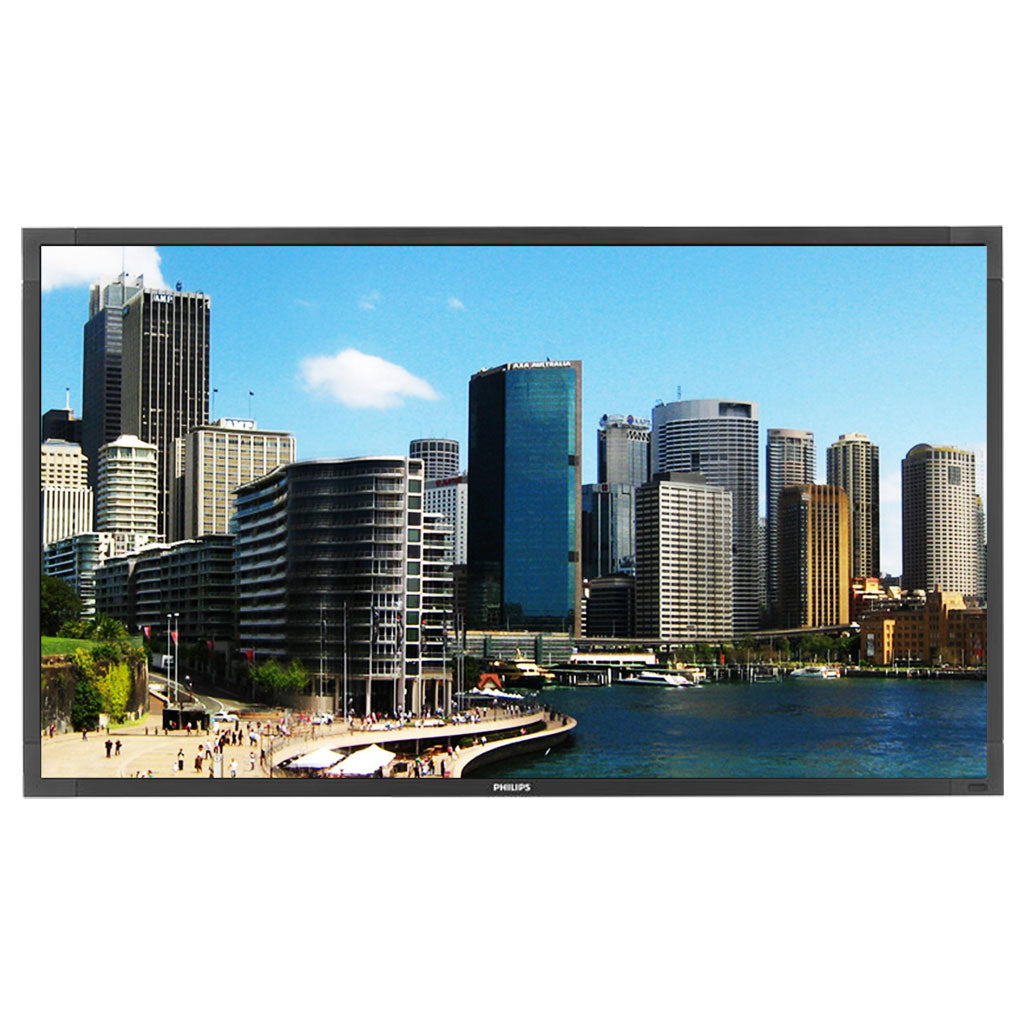

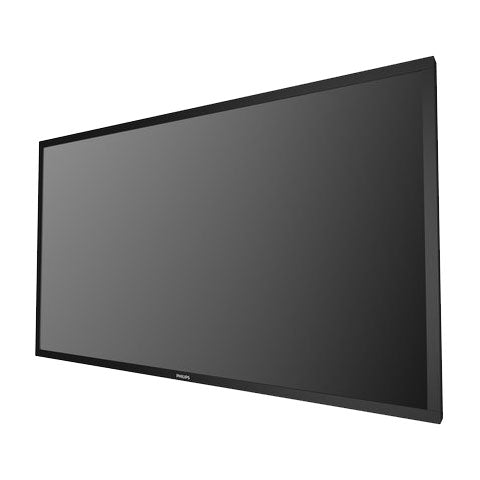

Model - 75BDL3051T
Connectivity - HDMI / DVI / VGA / RS232 / USB/ RJ-45 / Inbuilt Web Browsing/ Built -in-Speakers 10W+10W./ Integrated Wi-Fi / Inbuilt Android
Plug & Play Multi-Touch
A brand new level of interactivity is now available thanks to integrated touch technology. More flexibility and optimum simultaneous touch performance coupled with excellent operability opportunities to give you the ultimate in user interaction. The Multi-Touch displays are enabled with automatic touch recognition. The USB connector is HID compliant, providing true plug-and-play operation.
4K Ultra HD Resolution
See your Signage Solutions like never before thanks to four times the resolution of a conventional Full HD display. 3840 x 2160 pixels provide and image so refined, so lifelike, it's a window to a new world.
QuadViewer
Be more flexible with your screen real estate. With the ability to play content from up to four separate inputs, all on one screen. QuadViewer is ideal for control rooms, corporate environments, and meeting rooms.
FailOver for Meeting Rooms
Using FailOver, simplify your presentations and videoconferencing. When a meeting or conference room is not in use, background content can run from whatever input source you choose. When the meeting starts and you need to share a presentation or your screen, simply connect your computer and the display automatically switches inputs and shows what's on your screen, with no need to manually switch inputs.
FailOver
Keeping your content up and running is critical for demanding commercial applications. While it is unlikely you will face a content disaster, FailOver provides content protection with a revolutionary technology that plays back-up content on screen in the event of a media player failure. FailOver automatically kicks in when the primary input fails. Simply select a primary input connection and a FailOver connection and your ready for instant protection.
OPS Insert
Turn your display into an all-in-one digital signage solution and create a display network which is connected, intelligent and secure. Open Pluggable Specification (OPS) is an industry standard slot into which you can add an OPS-standardized media player. This cable free solution gives you the ability to install, use or maintain your hardware whenever you need.
CMND
A robust display management platform, CMND puts the power back into your hands. Update and manage content with CMND & Create or control your settings with CMND & Control. It's all possible with CMND.
SmartPower
The backlight intensity can be controlled and pre-set by the system to reduce the power consumption by up to 50%, which saves substantially on energy costs.
| Picture/Display | |
| Diagonal screen size (metric) | 189.3 cm |
| Diagonal screen size (inch) | 75 inch |
| Optimum resolution | 3840 x 2160 @ 60Hz |
| Brightness | 410 cd/m² |
| Contrast ratio (typical) | 1200:1 |
| Dynamic contrast ratio | 500,000:1 |
| Aspect ratio |
16:9 |
| Response time (typical) | 8 ms |
| Pixel pitch | 0.429 x 0.429 mm |
| Display colors | 1073M |
| Viewing angle (H / V) | 178 / 178 degree |
| Picture enhancement | 3/2 - 2/2 motion pull down, 3D Combfilter, Motion compens. deinterlacing, Progressive scan, 3D MA deinterlacing, Dynamic contrast enhancement |
| Panel resolution | 3840 x 2160 |
| Surface treatment | Anti-Glare coating |
| Panel technology | IPS |
| Interactivity | |
| Multi-touch technology | Infrared touch |
| Touch points | 10 simultaneous touch points |
| Plug and play | HID compliant |
| Protection glass | 5 mm tempered safety glass, Anti-Glare, Anti-Reflective |
| Connectivity | |
| Video input | DisplayPort (1.2), DVI-D, VGA (Analog D-Sub), Component (RCA), Composite (RCA), HDMI (x3) |
| Video output | DisplayPort |
| Audio input: | Audio Left/Right (RCA), 3.5 mm jack |
| Audio output | External speaker connector, 3.5mm jack, SPDIF |
| External control | RJ45, RS232C (in/out) 2.5 mm jack, IR (in/out) 3.5 mm jack |
| Other connections | USB, OPS, AC-out |
| Supported Display Resolution | |
| Computer formats | 640 x 480, 60, 67, 72, 75Hz 720 x 400, 70Hz 800 x 600, 60, 72, 75Hz 1024 x 768, 60Hz 1280 x 768, 60Hz 1280 x 800, 60Hz 1280 x 1024, 60Hz 1360 x 768, 60Hz 1600 x 1200, 60Hz 1920 x 1080, 60Hz 1920 x 1200, 60Hz 3840 x 2160, 30Hz 3840 x 2160, 60Hz |
| Video formats |
480p, 60Hz |
| Convenience | |
| Placement | Landscape (16/7) |
| Energy saving functions | Smart Power |
| Keyboard control | Hidden, Lockable |
| Signal Loop Through | RS232, IR Loopthrough, DisplayPort |
| Network controllable | RS232, HDMI (One Wire), LAN (RJ45) |
| Picture performance | Advanced color control |
| Picture in picture | PIP |
| Screen saving functions | Pixel Shift, Low Brightness |
| Remote control signal | Lockable |
| Other convenience | Carrying handles |
| Ease of installation | Smart Insert |
| POWER | |
| Standby power consumption | <0.5 W |
| Mains power | 100 ~ 240 VAC, 50/60Hz |
| Consumption (Typical) | 200 W |
| Operating conditions | |
| Temperature range (operation) | 5 ~ 40 °C |
| Temperature range (storage) | -20 ~ 60 °C |
| Relative humidity | 20 ~ 80 % |
| MTBF | 50,000 hour(s) |
| Altitude | 0 ~ 3000 m |
| Sound | |
| Built-in speakers | 2 x 10W RMS |
| Accessories | |
| Included accessories | AC Power Cord, RS232 cable, USB cable, Remote Control, Batteries for remote control, Quick start guide, User manual on CD-ROM, HDMI cable |
| Optional accessories | HDBaseT OPS Receiver (CRD25), IR Light Motion Sensor (CRD41) |
| Multimedia Applications | |
| USB Playback Audio | AAC, AIF, AIFF, ASF, LPCM, M3U, M4A, MP3, MP4, WAV, WMA |
| USB Playback Picture | BMP, GIF, JPEG, JPG |
| USB Playback Video | M2TS, M4V, MK3D, MKV, MP4, MPEG, MPG, MTS, TS, TTS, VOB, WMV |
| PHYSICAL SPECIFICATION | |
| Bezel width | 29.20 mm |
| Set dimensions (W x H x D) | 1709.70 x 988.60 x 92.50 mm |
| VESA Mount | 600 x 400, M8 |
| Product weight | 75 kg |
| Smart Insert mount | 100 x 100 mm, 100 x 200 mm |
