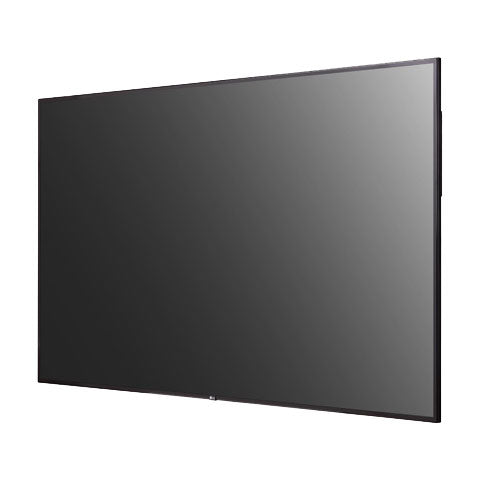

Model - 86UH5C
86” Ultra HD Signage with Split-Screen /High Efficiency Video Coding/Multiple Screen with PBP or PIP/MIRRORING
The new Ultra HD large display, UH5C Series supports displaying Ultra HD content as well as a divided content layout to show up to 4 split images on one screen. Its benefit enables you to create various formats of content to deliver commercial message effectively. Also, it is enhanced in content management. With LG SuperSign EZ providing basic content templates, you can create and edit content simply and quickly on your mobile device or signage display
Ultra HD Resolution
Ultra HD Large screen delivers immersive viewing experience by 4 times higher definition picture quality than FHD.
High Efficiency Video Coding
Supports HEVC-based content which has the double data compression ratio than the H.264 so network traffic can be reduced by half.
Multiple Screen with PBP or PIP
PBP (Picture-By-Picture) and PIP (Picture-In-Picture) feature gives a chance to compose up to 4 divided split screen on landscape or portrait display format.
| PANEL SPECIFICATION | |
| Screen Size | 86 |
| Panel Technology | IPS |
| Aspect Ratio | 16 : 9 |
| Native Resolution | 3,840 x 2,160 (UHD) |
| Brightness | 500cd/m2 |
| Contrast Ratio | 1,200:1 |
| Dynamic CR | 4,000,000:1 |
| Viewing Angle (H x V) |
178 x 178 |
| Response Time | 8ms (G to G) |
| Surface Treatment | Low Haze 3% |
| Life time (Min.) | 50,000 Hrs |
| Guaranteed Operation Hours |
24 Hrs |
| Orientation | Portrait & Landscape |

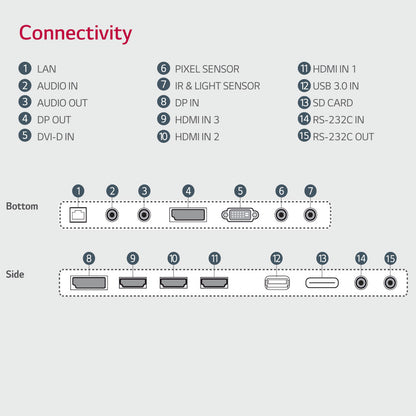

| CONNECTIVITY | |
| Input | HDMI, DP, DVI-D, Audio, USB 3.0, SD Card |
| Output | DP, Audio |
| External Control | RS232C, RJ45, IR Receiver, Pixel Sensor |
| SPECIAL FEATURES | |
| SPECIAL FEATURES | Temperature Sensor, Auto Brightness Sensor, Tile Mode (up to 15x15), Natural Mode@Tile Mode, ISM Method, Internal Memory, Wi-Fi built-in, USB Cloning, Contents Scheduling, Sync mode, PM mode, Fail Over, Wake on LAN, BEACON (On/Off), Embedded Template |
| ENVIRONMENT CONDITIONS | |
| Operation Temperature Range | 32°F to 104 °F |
| Operation Humidity Range | 10 % to 80 % |
| MEDIA PLAYER COMPATIBILITY | |
| OPS type compatible | Yes |
| External Media player Attachable | Yes (MP500 / MP700) |
| POWER | |
| Power Supply | 100-240V~, 50/60Hz |
| Power Type | Built-In Power |
| Power Consumption Typ. | 275 W |
| Power Consumption Smart Energy Saving | 193 W |
| PHYSICAL SPECIFICATION | |
| Bezel Color | Black |
| Bezel Width | 14.7mm |

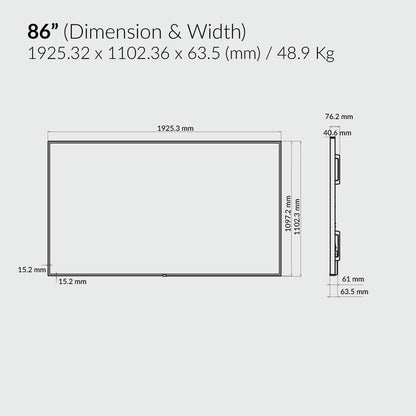

| Monitor Dimension (W x H x D) | 1925.3 x 1097.2 x 61 mm (without Logo/Handle) |
| Weight (Head) | 48.98 Kg |
| Carton Dimensions (W x H x D) | 2072.6 x 1259.8 x 292.1 mm |
| Packed Weight | 61.09 Kg |

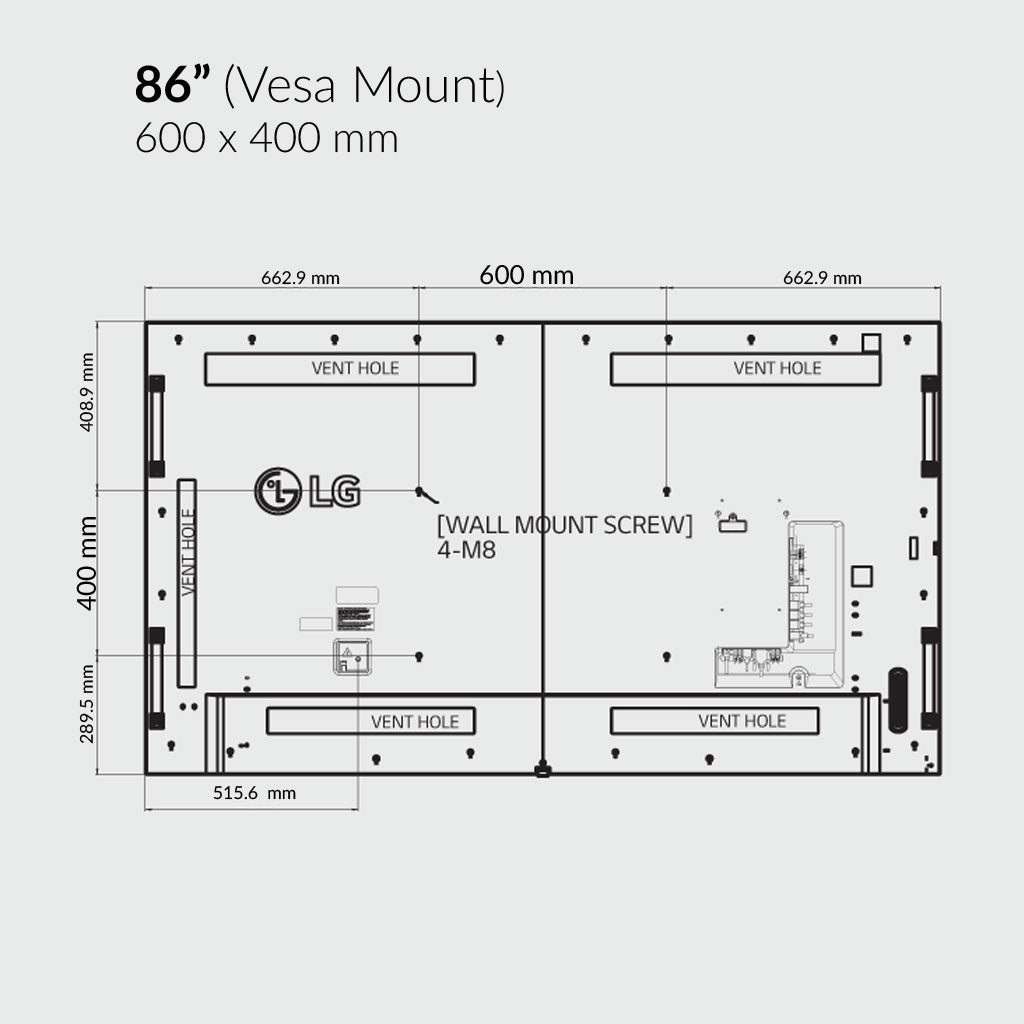

| VESATM Standard Mount Interface | 600 x 400 mm |
