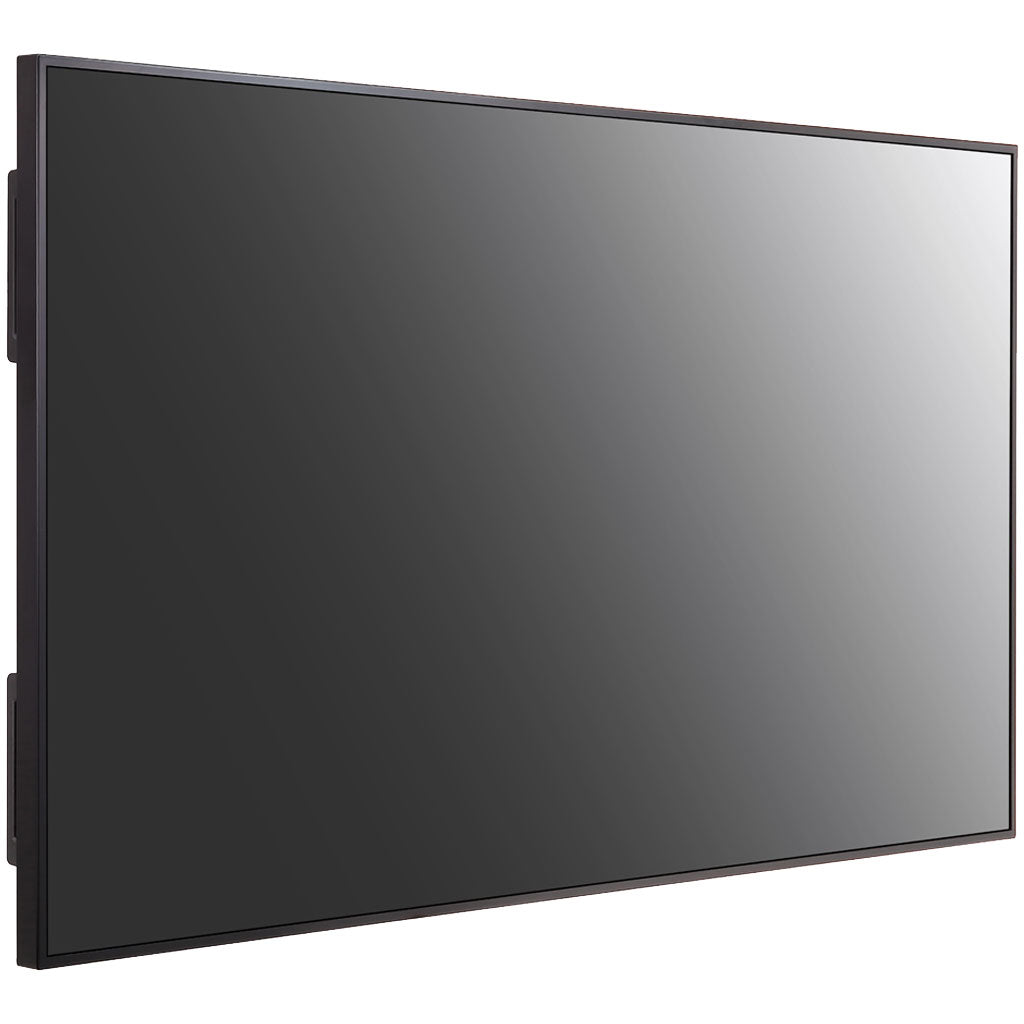

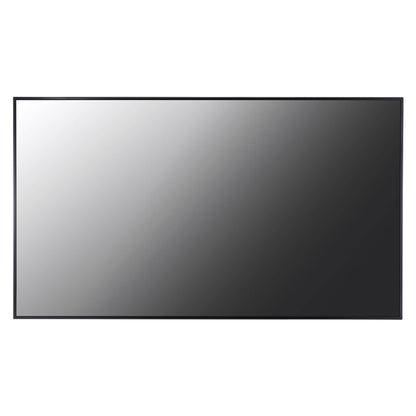

Model - 86UM3C
86" Ultra HD Signage with Split-Screen High Efficiency Video Coding / Multiple Screen with PBP or PIP / MIRRORING
The Ultra HD large format, UM3C series delivers the content in fine detail with vivid and lifelike colors without any distortion. Powered by webOS platform, it maximizes user convenience by allowing multi screen in a single display with up to 4 input sources and the USB content playing and scheduling. Also, the reliable compatibility with AV control systems totally improves the business productivity in meeting rooms.
Ultra HD Resolution
Ultra HD large screen delivers immersive viewing experience by 4 times higher definition picture quality than FHD, which enables to describe fine details without distortion. Especially UM3C series ensures stable UHD video playback by supporting HEVC* that offers double data compression ratio at the same level of video quality compared to
Multiple screen by PBP/PIP
PBP (Picture-By-Picture) features multi screen in a single display with upto 4 input sources, thus maximizing the usability of large UHD display. In addition, PIP (Picture-In-Picture) supports playing both main screen and sub screen at the same time with various layouts, so that users can arrange many different usage scenarios efficiently.
USB Contents Playback and Scheduling
Contents can be simply played and scheduled via USB, so additional server connection is not required, enabling easy content management.
Wireless Solution
UM3C series supports wireless services for more optimized user experience with built-in Wi-Fi(802.11n). Mirroring supports sharing contents among devices on a Wi-Fi network and Soft AP makes the display operate as a wireless access point for other digital devices.
Compatibility for Meeting Room
UM3C series ensures secured compatiblity with AV control Systems for seamless integration and automated control in meeting rooms, boosting business management efficiency.
OPS / HDBaseT Connectivity
The UM3C provides an OPS (Open Pluggable Specification) Kit to connect a third-party OPS player or HDBaseT box. Users have the flexibility to choose any media player as long as it complies with the OPS.
High-Performance SoC with webOS
Quad Core SoC* can execute several tasks at the same time without a separate media player, saving TCO. Due to its internal memory (8GB), pre-loaded contents are displayed without external inputs. In addition, webOS platform enhances user convenience with intuitive UI and simple app development tools. *System on Chip

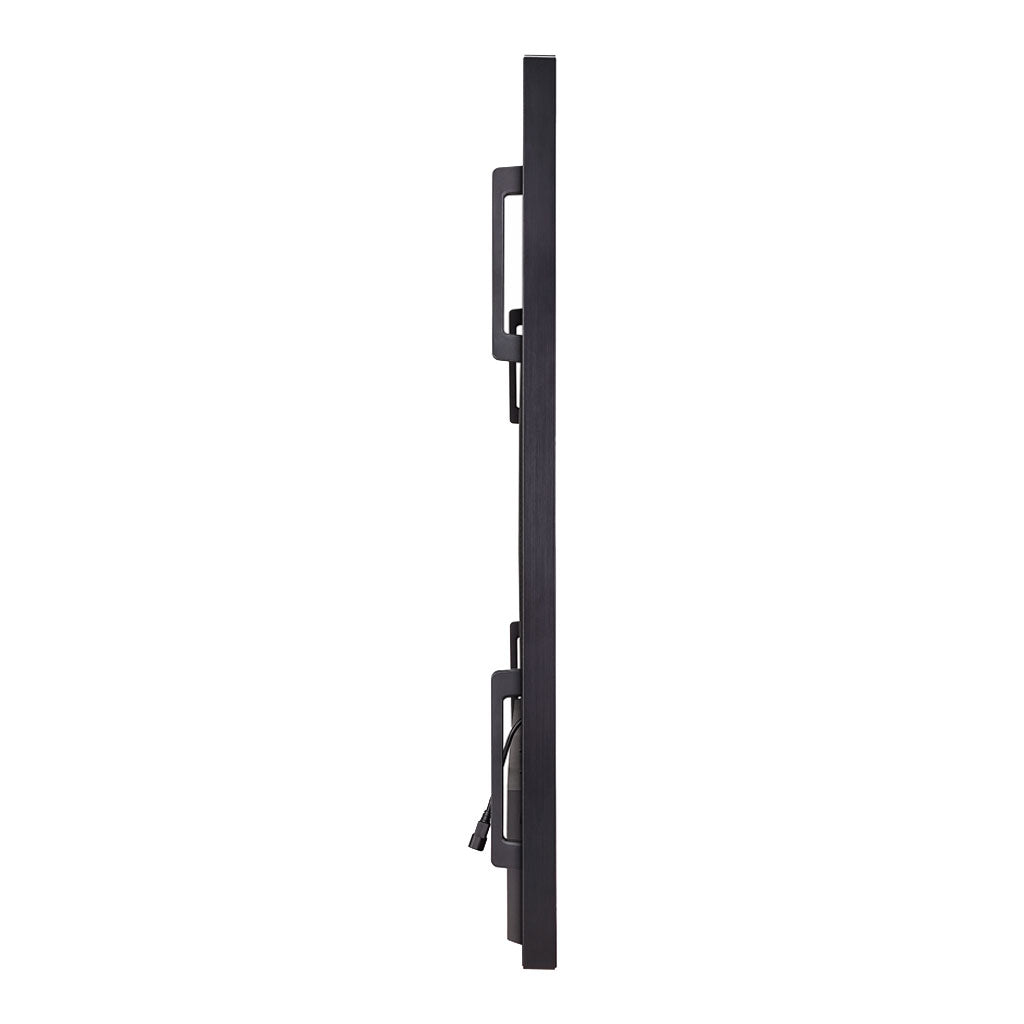

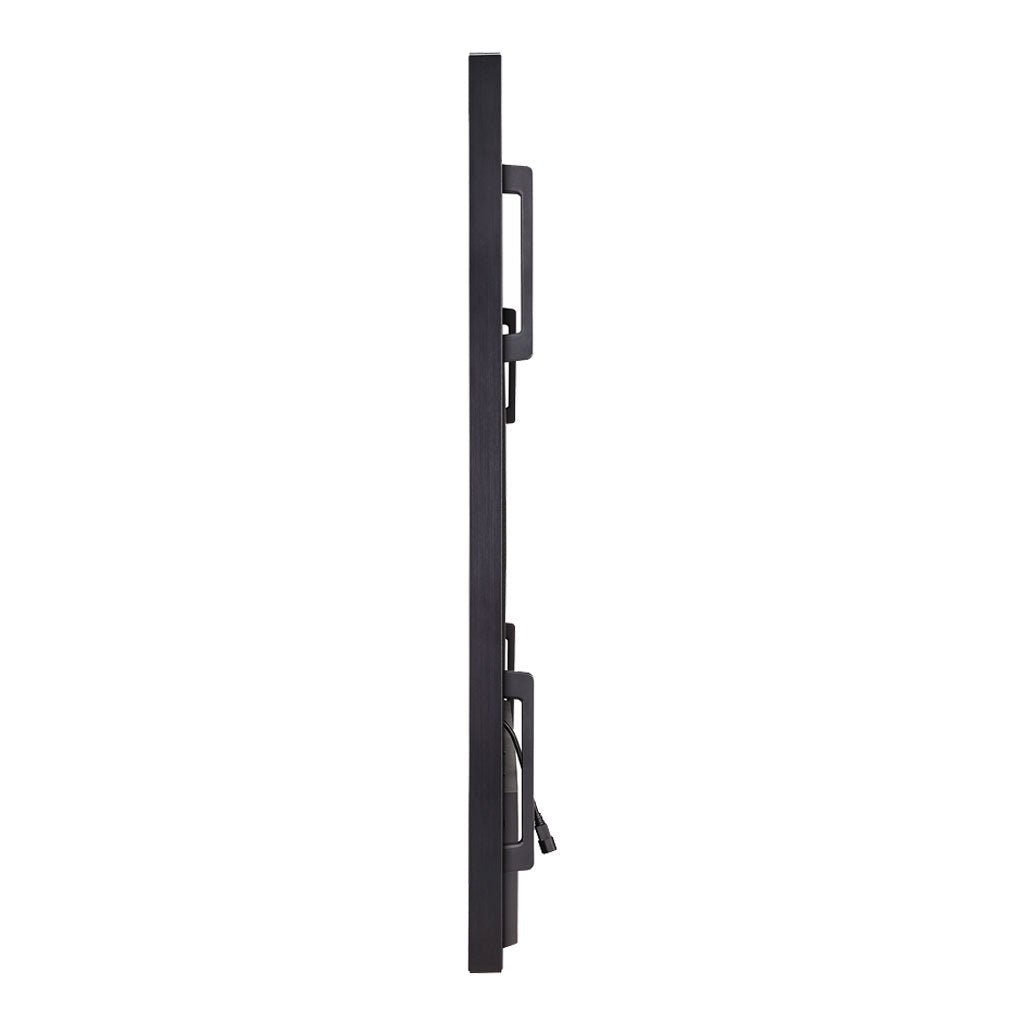

Slim Depth & Even Bezel
The slim depth and even bezel allows an easy installation and a perfect fit for a sleek look.
| PANEL SPECIFICATION | |
| Screen Size | 86 |
| Panel Technology | IPS |
| Aspect Ratio | 16 : 9 |
| Native Resolution | 3,840 x 2,160 (UHD) |
| Brightness | 350cd/m2 |
| Contrast Ratio | 1,200:1 |
| Dynamic CR | 500,000:1 |
| Viewing Angle (H x V) |
178 x 178 |
| Response Time | 8ms (G to G) |
| Surface Treatment | Low Haze 3% |
| Life time (Min.) | 30,000 Hrs |
| Guaranteed Operation Hours |
16 Hrs |
| Orientation | Landscape |

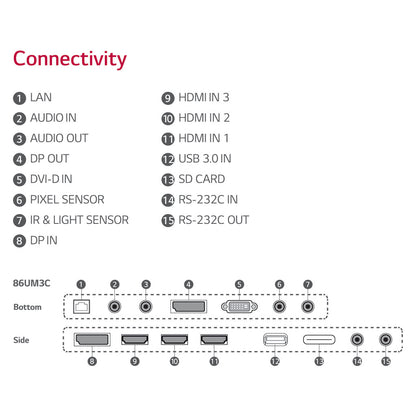

| CONNECTIVITY | |
| Input | HDMI(3), DP, DVI-D, Audio, USB 3.0, SD Card |
| Output | DP, Audio |
| External Control | RS232C, RJ45, IR Receiver, Pixel Sensor |
| SPECIAL FEATURES | |
| SPECIAL FEATURES | Temperature Sensor, Auto Brightness Sensor, Tile Mode (up to 15x15), Natural Mode@Tile Mode, ISM Method, Internal Memory (8GB, System 4GB), Wi-Fi built-in (802.11n), USB Cloning, Content Scheduling, Sync mode, PM mode, Fail Over, Wake on LAN, BEACON (On/Off), Embedded Template, PIP/PBP (2/3/4) |
| ENVIRONMENT CONDITIONS | |
| Operation Temperature Range | 0 °C to 40 °C |
| Operation Humidity Range | 10 % to 80 % |
| MEDIA PLAYER COMPATIBILITY | |
| OPS type compatible | Yes |
| External Media player Attachable | Yes (MP500 / MP700) |
| POWER | |
| Power Supply | 100-240V~, 50/60Hz |
| Power Type | Built-In Power |
| Power Consumption Typ. | 315W |
| Power Consumption Smart Energy Saving | 220W |
| PHYSICAL SPECIFICATION | |
| Bezel Color | Black |
| Bezel Width | On: 15.6mm, Off: 14.3mm |
| Monitor Dimension (W x H x D) | 1,926.2 x 1,097.2 x 60.6mm (without logo / handle) |
| Weight (Head) | 49kg |
| Carton Dimensions (W x H x D) | 2,073 x 1,260 x 292mm |
| Packed Weight | 61.1kg |

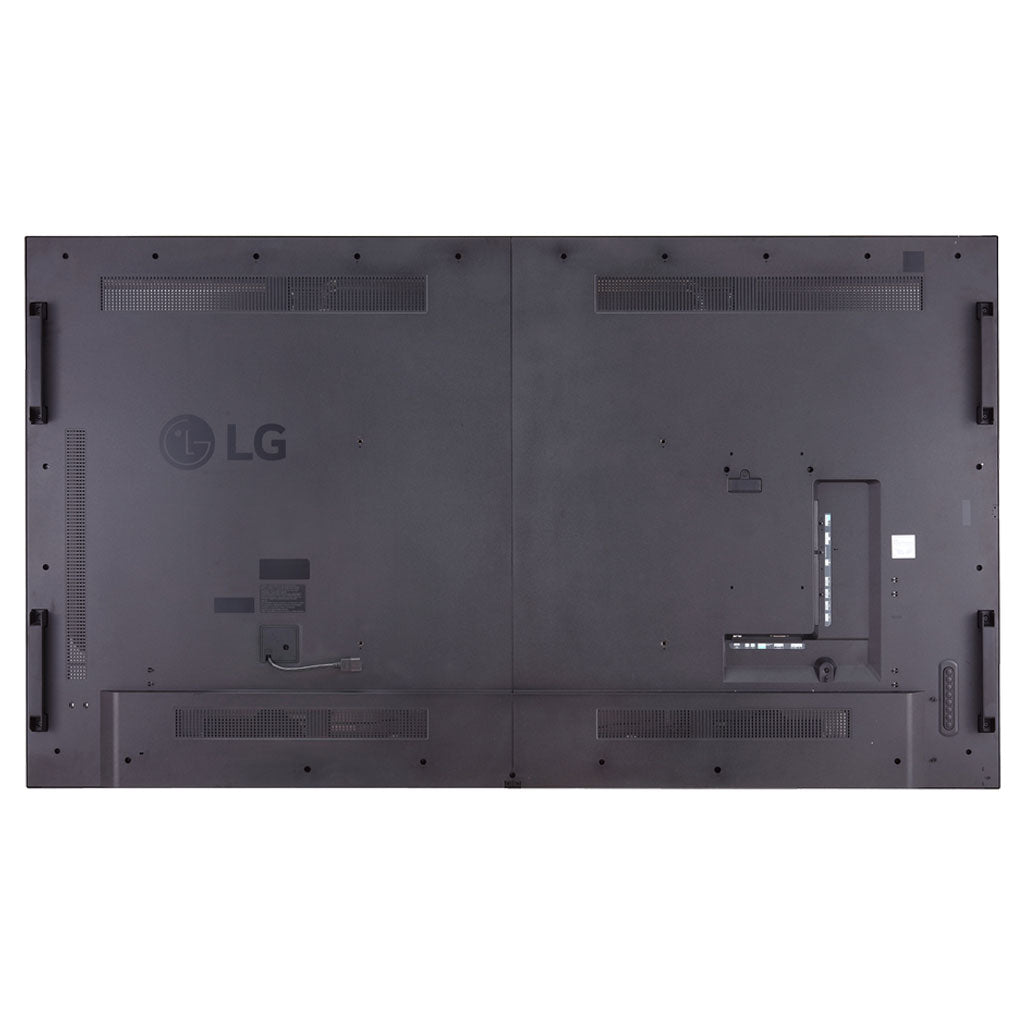

| VESATM Standard Mount Interface | 600 x 400mm |
