Model - 88BH7D | Professional Large Format Information Display (24*7)
88BH7D is a newly designed format with a 32:9 widescreen. It enables to deliver compound content consisting of video and text effectively, and also fully keeps the ratio of the advertising target as it is and shows smoothly. This product itself attracts viewrs’ attention and maximizes the advertisement effect.
32:9 Extended Wide Format
It is a totally new wide screen format with 32:9 bar type, the most promising display for advertisement and information delivery.
Ultra HD Resolution (3,840 x 1,080)
Ultra HD resolution delivers an immersive viewing experiences with vivid colors and clear images.
Optimized Content Delivery
88BH7D is ready to organize multi content with video and text according to user's desired ratio. Also, it is optimal to show a vertical or horizontal object without truncation, providing real-like viewing experiences to the audience. It is the best way to attract people's attention and maximize advertisement effect.
PBP with Four Divisions in Landscape or Portrait
The Picture-by-Picture (PBP) feature allows you to compose multi content in one single display with upto four parts. It is very useful and convenient to deliver many different advertisements or pieces of information at the same time without calibration.
32:9 Content Editing
With the LG SuperSign Media Editor, you can easily edit images or video clips of original content to fit 32:9 ratio.
Multiple Content Creation
Users can edit content that consists of one video and several still images (up to 20) as they want.
Easy Management with LAN Daisy Chain
The LAN daisy chain allows you to control and monitor devices, distribute content, and even update firmware.
Tiling Scene with DP Daisy Chain
This product supports lateral tiling for 1x4 or 4x1 installations (landscape or portrait), and up to a 4x4 installation with a daisy chain configuration.
| PANEL SPECIFICATION | |
| Screen Size | 88 |
| Panel Technology | IPS |
| Aspect Ratio | 32 : 9 |
| Native Resolution | 3,840 x 1,080 (UHD) |
| Brightness | 700cd/m2 (Typ) |
| Contrast Ratio | 1,100:1 (Typ) |
| Dynamic CR | 500,000:1 (Typ) |
| Viewing Angle (H x V) |
178 x 178 |
| Color Depth | 10bit(D), 1.07 Billion |
| Response Time | 8ms (G to G BW, Typ) |
| Surface Treatment | AGLR (Haze 3%) |
| Orientation | Landscape & Portrait Mode |

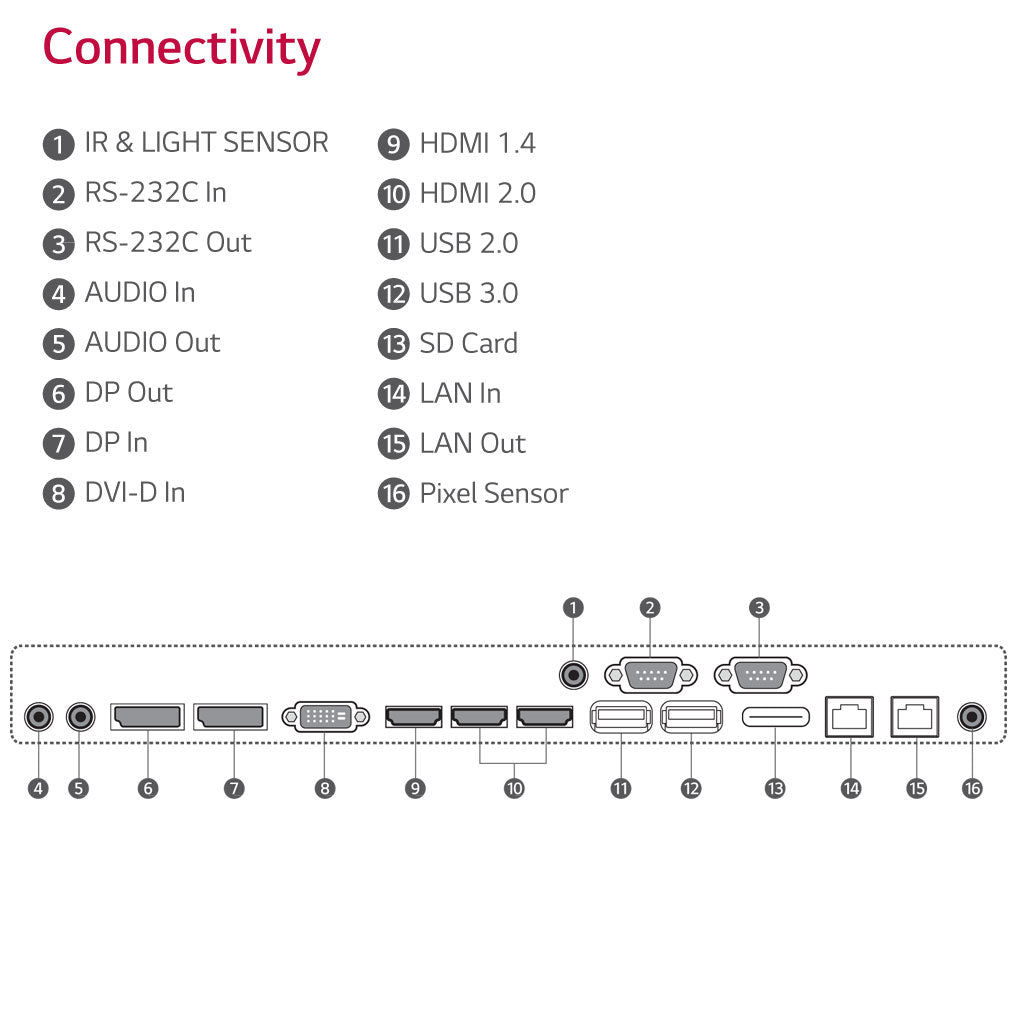

| CONNECTIVITY | |
| Input | HDMI (3), DP, OPS, DVI-D, Analog Audio, USB 2.0, USB 3.0, SD Card |
| Output | DP, Analog Audio |
| External Control | RS232C In/Out, RJ45 In/Out, IR & Light Sensor, Pixel Sensor |
| SPECIAL FEATURES | |
| SPECIAL FEATURES | Temperature Sensor, Auto Brightness Sensor, Tile Mode, Natural Mode@Tile Mode, ISM Method, DPM Select, Energy Saving, Smart Energy Saving, File Play with USB/SD/Internal Memory, 2/3/4PBP, Internal Memory 8GB (System 4GB + Available 4GB), Wi-Fi Dongle Ready (Support Beacon function), 4K Up Scaling |
| ENVIRONMENT CONDITIONS | |
| Operation Temperature Range | 0 °C to 40 °C |
| Operation Humidity Range | 10 % to 80 % |
| MEDIA PLAYER COMPATIBILITY | |
| OPS type compatible | Yes |
| External Media player Attachable | No |
| POWER | |
| Power Supply | 100-240V~, 50/60Hz |
| Power Type | Built-In Power |
| Power Consumption Typ. | 400 W / 500 W |
| Power Consumption Smart Energy Saving | 30% of typical |
| PHYSICAL SPECIFICATION | |
| Bezel Color | Black |
| Bezel Width | 4.4 mm (L/R), 5.9 mm (U/D) |

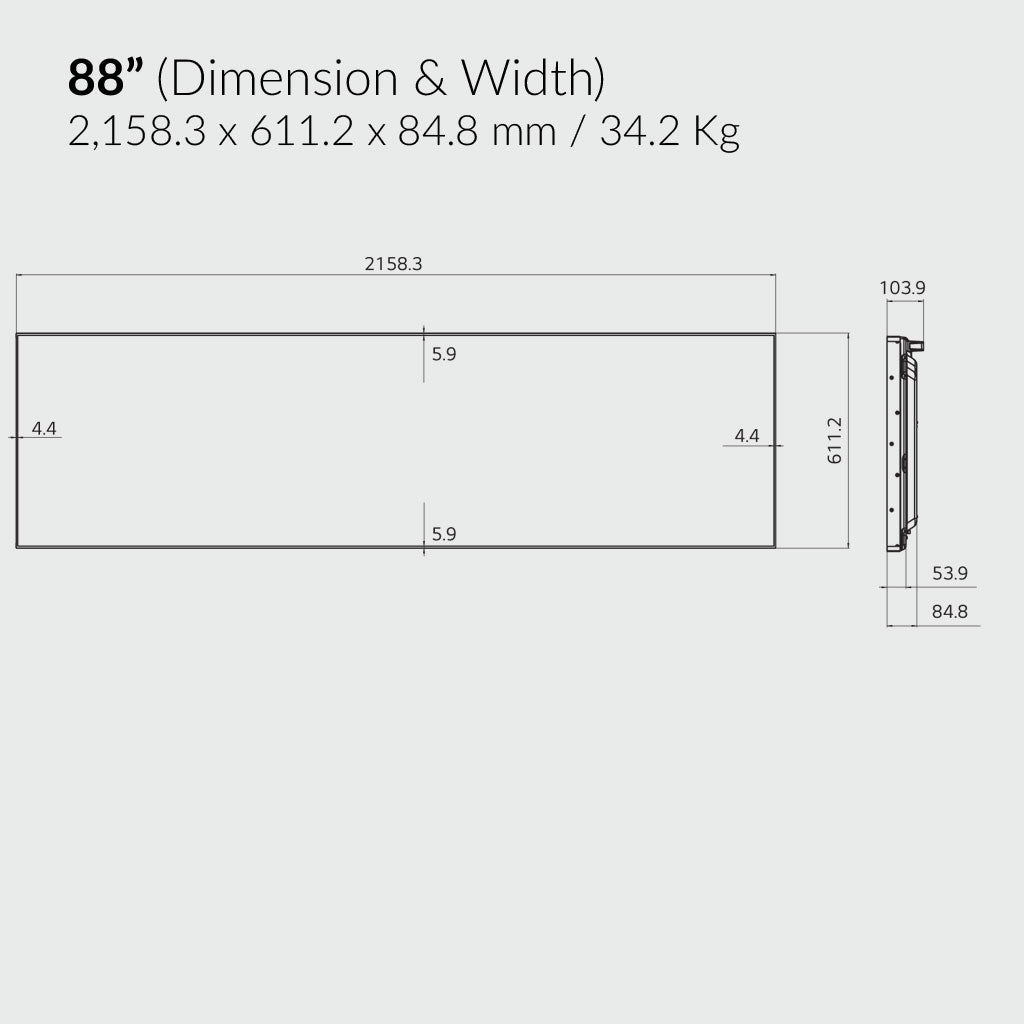

| Monitor Dimension (W x H x D) | 2,158.3 x 611.2 x 84.8 mm (w/o Handle) |
| Weight (Head) | 34.2 kg |
| Carton Dimensions (W x H x D) | 2,274 x 717 x 212 mm |
| Packed Weight | 53.2 kg (Pallet included) |
| Handle | Yes |

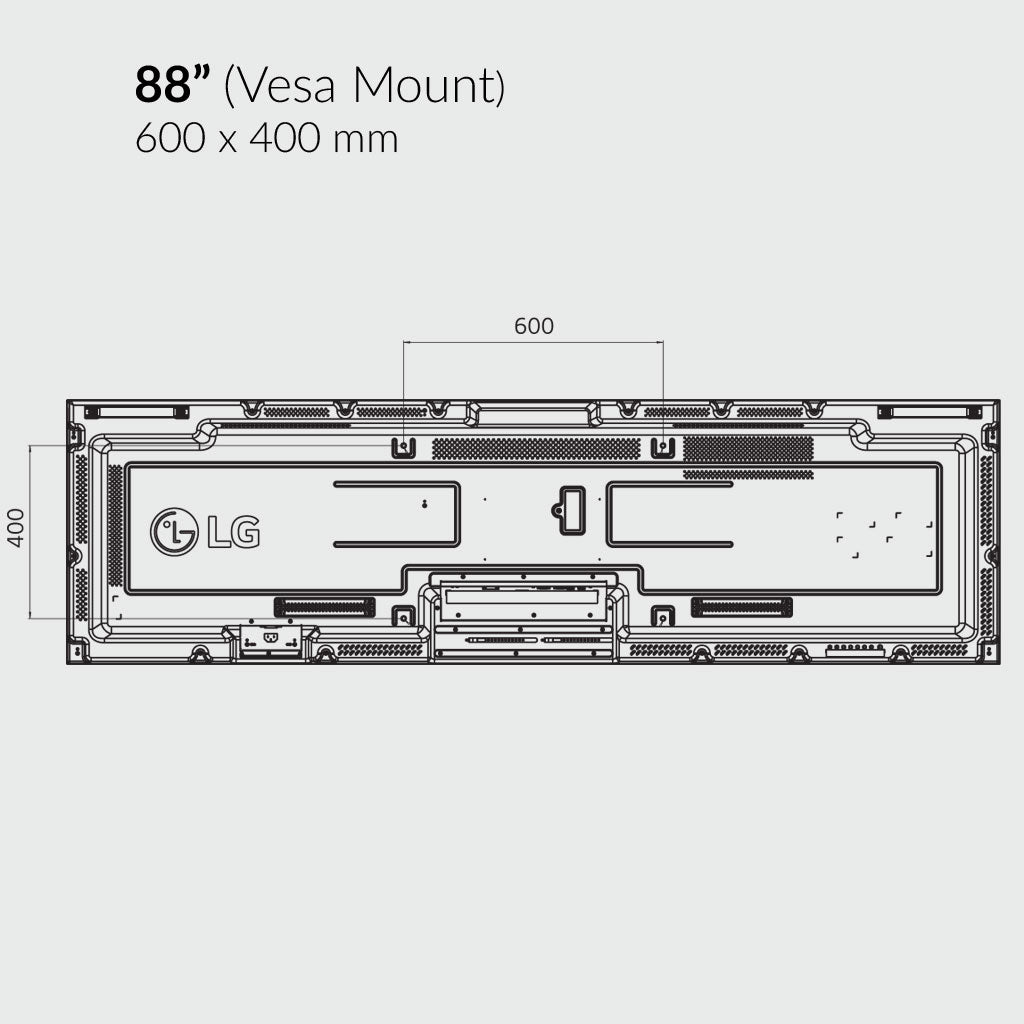

| VESATM Standard Mount Interface | 600 x 400 mm |
