Model - BDL5530QL
Connectivity - HDMI / DVI / VGA / RS232 / USB/ RJ-45 / Inbuilt Web Browsing/ Built -in-Speakers 10W+10W.
Full HD LED technology
Picture Quality matters. Regular displays deliver quality, but you expect more. Imagine crisp detail paired with high brightness, incredible contrast and realistic colors for a true to life picture.
Smart Control
SmartControl lets you remotely control and manage your network of displays via RJ45 and RS232C. Easily fine-tune all display settings including resolution, brightness, contrast and cloning of your settings over your complete network.
SmartCMS
Free and easy-to-use content management system that works exclusively with Philips Sigage Solutions displays to manage your digital signage content. With SmartCMS you can create and schedule your own content over 24 hours every day. Simply create your network, design your content, schedule your playlist and you are ready to play!
Smart Browser
Connect and control your content via the cloud with the integrated HTML5 browser. Design your signage content online and connect it with a display or with your complete network. Simply plug in a RJ45 internet cable for network connection, connect the display with the dedicated url-address and you are ready to play your cloud based content.
Internal Memory
Save and play content with internal memory. Upload your media into the display and playback content immediately. Working in conjunction with the internal browser, it also serves as a memory cache when streaming online content. If the network ever fails, the internal memory keeps content running by playing a cached version of the content, ensuring that your media stays up even if the network goes down.
Smart Player
Turn your USB into a true cost effective digital signage device. Simply save your content (video, audio, pictures) on your USB and plug into your display.Create your playlist and schedule your content via the on screen menu, and enjoy your own created playlists anytime, anywhere.
Clinical D-image
D-image helps you to review and diagnose clinical images with consistent and accurate display performance. To achieve reliable clinical interpretations our professional displays are factory calibrated to give optimized greyscale standard display performance. D-image helps you to excel in every aspect of patient care.
Smart Power
The backlight intensity can be controlled and pre-set by the system to reduce the power consumption by up to 50%, which saves substantially on energy costs.
Smart Collection
SmartCollection offers you customizable solutions to meet your specific requirements. Both integrators and solution providers are offered the latest innovations, while the audience can enjoy impactful solutions. When developing smart innovations we focus on Caring, Innovative and Impactful solutions.
| Picture/Display | |
| Diagonal screen size (metric) | 138.7 cm |
| Diagonal screen size (inch) | 55 inch |
| Panel resolution | 1920 x 1080p |
| Optimum resolution | 1920 x 1080 @ 60 Hz |
| Brightness | 350 cd/m² |
| Contrast ratio (typical) | 1200:1 |
| Dynamic contrast ratio | 500,000:1 (Typ) |
| Response time (typical) |
6.5 ms |
| Aspect ratio | 16:9 |
| Viewing angle (H / V) | 178 / 178 degree |
| Pixel pitch | 0.63 x 0.63 mm |
| Display color | 16.7 Million |
| DICOM | Clinical D-image |
| Supported Display Resolution | |
| Computer formats | 640 x 480, 60, 67, 72, 75Hz 800 x 600, 56, 60, 72, 75Hz 1024 x 768, 60Hz 1280 x 768, 60Hz 1280 x 800, 60Hz 1360 x 768, 60Hz 1366 x 768, 60Hz 1440 x 900, 60Hz 1600 x 1200, 60Hz 1920 x 1080, 60Hz 1920 x 1200, 60Hz |
| Video formats | 480i, 60Hz 480p, 60Hz 576p, 50Hz 576i, 50Hz 720p, 50, 60Hz 1080i, 50, 60Hz 1080p, 50, 60Hz |
| Connectivity | |
| Video input | DVI-D, HDMI, Component (RCA), Composite (RCA), VGA (Analog D-Sub) |
| Audio input | 3.5 mm jack, Audio Left/Right (RCA) |
| Audio output | Audio Left/Right (RCA), 3.5mm jack |
| External control | RJ45, RS232C (in/out) 2.5 mm jack, IR (in/out) 3.5 mm jack |
| Other connections | USB |
| Convenience | |
| Memory | Internal memory access, 8GB eMMC |
| Screen saving functions | Pixel Shift |
| Energy saving functions | Smart Power |
| Tiled Matrix | Up to 15 x 15 |
| Start-up | Wake up on LAN, Switch on delay, Switch on status |
| Start-up window | enable / disable Philips logo |
| Keyboard control | Lockable, Hidden |
| Network controllable | RS232, RJ45, One Wire (HDMI-CEC) |
| Signal Loop Through | RS232, IR Loopthrough |
| Operating conditions | |
| Temperature range (operation) | 5 ~ 40 °C |
| Temperature range (storage) | -20 ~ 60 °C |
| Relative humidity | 20 ~ 80 % |
| MTBF | 50,000 hour(s) |
| POWER | |
| Consumption (On mode) | 141 W (EnergyStar 6.0 test method) |
| Mains power | 100 ~ 240 VAC |
| Standby power consumption | <0.5 W |
| Sound | |
| Built-in speakers | 2 x 10W RMS |
| Multimedia Applications | |
| USB Playback Video | 3G2, 3GP, ASF, ASX, AVI, DAT, DivX, F4V, FLV, M2TS, M4V, MK3D, MKV, MOV, MP4, MPE, MPEG, MPG, MTS, QT, TRP, TS, TTS, VOB, WEBM, WMV, Xvid |
| USB Playback Picture | BMP, GIF, JPEG, JPG |
| USB Playback Audio | AAC, AC3, AIF, AIFF, AMR, EC3, M4A, MP3, OGA, OGG, WAV, WMA |
| Accessories | |
| Included accessories | AC Power Cord, RS232 cable, VGA cable, Remote Control, Batteries for remote control, User manual on CD-ROM, Quick start guide |
| PHYSICAL SPECIFICATION | |

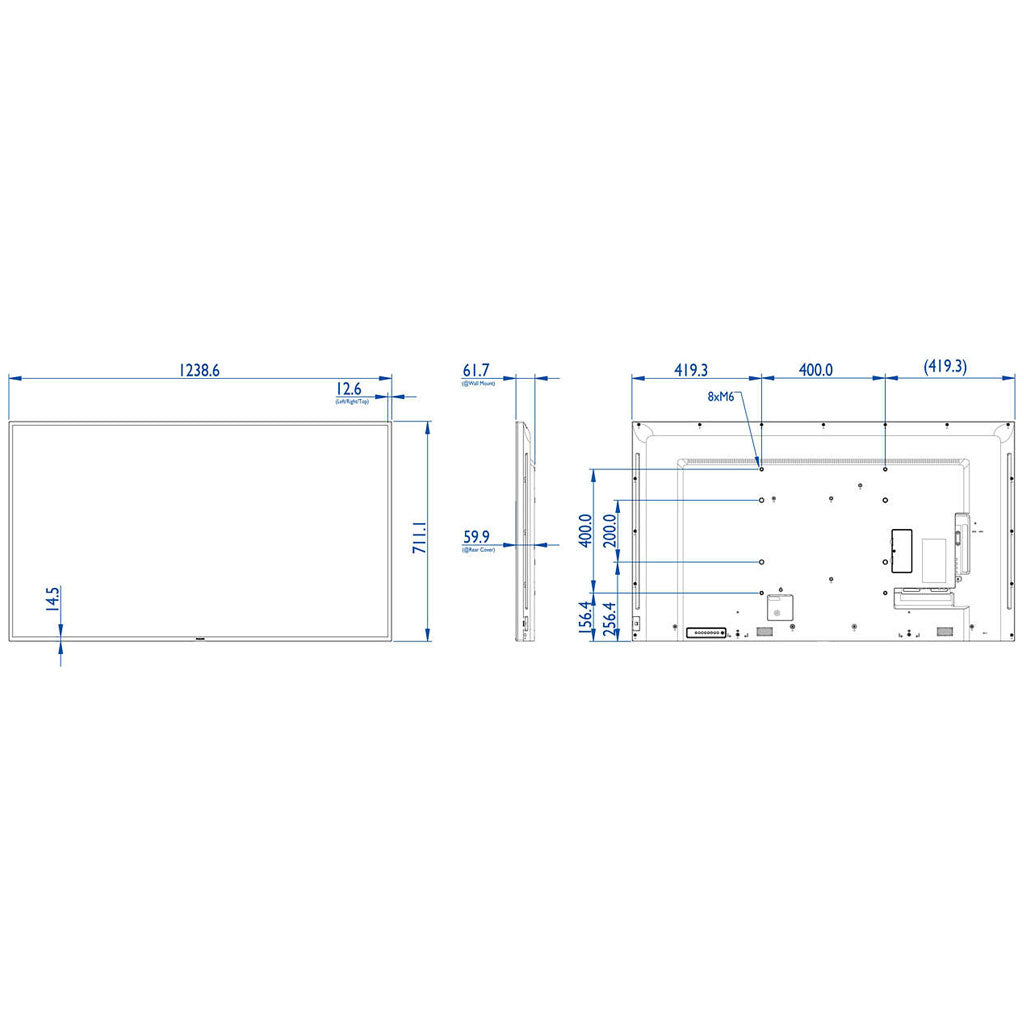

| Bezel width | 12.6 (TLR) / 14.5 (B) mm |
| Set dimensions (W x H x D) | 1238.6 x 711.1 x 59.9 mm |
| Set dimensions in inch (W x H x D) | 48.76 x 28.0 x 2.36 inch |
| VESA Mount | 400 x 400 mm, 400x200 mm, M6 |
| Product weight | 16.00 kg |
| Product weight (lb) | 35.27 lb |
