ThinPC

Model - BDL8470QU Connectivity / Inbuilt Web Browsing/ Built -in-Speakers 10W+10W / HDMI / DVI / VGA / RS232 / USB/ RJ-45

Model - BDL8470QU Connectivity / Inbuilt Web Browsing/ Built -in-Speakers 10W+10W / HDMI / DVI / VGA / RS232 / USB/ RJ-45

Regular price Rs. 542,000.00
Regular price Sale price Rs. 542,000.00
Sale Sold out
Tax included.
View full details

Model - BDL8470QU
Connectivity - 3*HDMI / DVI / VGA / RS232 / USB/ RJ-45 / Inbuilt Web Browsing/ Built -in-Speakers 10W+10W.

4K Ultra HD Resolution
See your Signage Solutions like never before thanks to four times the resolution of a conventional Full HD display. 3840 x 2160 pixels provide and image so refined, so lifelike, it's a window to a new world.

QuadViewer
Be more flexible with your screen real estate. With the ability to play content from up to four separate inputs, all on one screen. QuadViewer is ideal for control rooms, corporate environments, and meeting rooms.

OPS Insert
Turn your display into an all-in-one digital signage solution and create a display network which is connected, intelligent and secure. Open Pluggable Specification (OPS) is an industry standard slot into which you can add an OPS-standardized media player. This cable free solution gives you the ability to install, use or maintain your hardware whenever you need.

Integrated HTML5 browser
Connect and control your content via the cloud with the integrated HTML5 browser. Design your signage content online and connect it with a display or with your complete network. Simply plug in a RJ45 internet cable for network connection, connect the display with the dedicated url-address and you are ready to play your cloud based content.

SmartCMS
Free and easy-to-use content management system that works exclusively with Philips Sigage Solutions displays to manage your digital signage content. With SmartCMS you can create and schedule your own content over 24 hours every day. Simply create your network, design your content, schedule your playlist and you are ready to play!

FailOver
Keeping your content up and running is critical for demanding commercial applications. While it is unlikely you will face a content disaster, FailOver provides content protection with a revolutionary technology that plays back-up content on screen in the event of a media player failure. FailOver automatically kicks in when the primary input fails. Simply select a primary input connection and a FailOver connection and your ready for instant protection.

SmartPower
The backlight intensity can be controlled and pre-set by the system to reduce the power consumption by up to 50%, which saves substantially on energy costs.

SmartPlayer
Turn your USB into a true cost effective digital signage device. Simply save your content (video, audio, pictures) on your USB and plug into your display.Create your playlist and schedule your content via the on screen menu, and enjoy your own created playlists anytime, anywhere.

SmartCollection
SmartCollection offers you customizable solutions to meet your specific requirements. Both integrators and solution providers are offered the latest innovations, while the audience can enjoy impactful solutions. When developing smart innovations we focus on Caring, Innovative and Impactful solutions.


Picture/Display
Diagonal screen size (metric) 213.5 cm
Diagonal screen size (inch) 84 inch
Panel technology IPS
Optimum resolution 3840 x 2160 @ 60Hz
Brightness 350 cd/m²
Contrast ratio (typical) 1400:1
Dynamic contrast ratio 500,000:1
Aspect ratio

16:9

Response time (typical) 12 ms
Pixel pitch 0.4845 x 0.4845 mm
Display colors 1073 M
Viewing angle (H / V) 178 / 178 degree
Picture enhancement 3/2 - 2/2 motion pull down, 3D Combfilter, 3D MA deinterlacing, Dynamic contrast enhancement, Motion compens. deinterlacing, Progressive scan
Panel resolution 3840 x 2160
Connectivity
Video input VGA (Analog D-Sub), DisplayPort (1.2), DVI-D, HDMI (x3), Composite (BNC), Component (BNC)
Video output DisplayPort
Audio input: 3.5 mm jack
Audio output 3.5mm jack, External speaker connector
External control RS232C (in/out) 2.5 mm jack, RJ45
Other connections USB, OPS
Convenience
Placement Landscape
Network controllable RS232, HDMI (One Wire), LAN (RJ45)
Signal Loop Through RS232, DisplayPort
Energy saving functions Smart Power
Remote control signal Lockable
Keyboard control Hidden, Lockable
Ease of installation Smart Insert
Other convenience Carrying handles
Screen saving functions Pixel Shift, Low Brightness
POWER
Mains power 100 ~ 240 VAC, 50 ~ 60 Hz
Consumption (Typical) 400 W
Standby power consumption <0.5W
Sound
Built-in speakers 2 x 10W RMS
Operating conditions
Temperature range (operation) 5 ~ 40 °C
Temperature range (storage) -20 ~ 60 °C
Relative humidity 20 ~ 80 %
MTBF 50,000 hour(s)
Accessories
Included accessories: AC Power Cord, Batteries for remote control, Quick start guide, Remote Control, User manual on CD-ROM, RS232 cable, HDMI cable
Optional accessories HDBaseT OPS Receiver (CRD25)

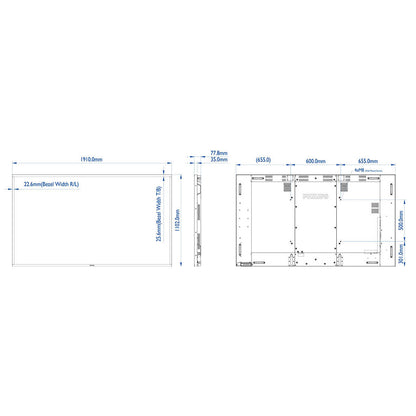

PHYSICAL SPECIFICATION
Bezel width 22.60 (R/L), 25.60 (T/B) mm
Set dimensions (W x H x D) 1910.0 x 1102.0 x 77.80 mm
VESA Mount 600 x 500 mm, M8
Product weight 70 kg
Product weight (lb) 154 lb
