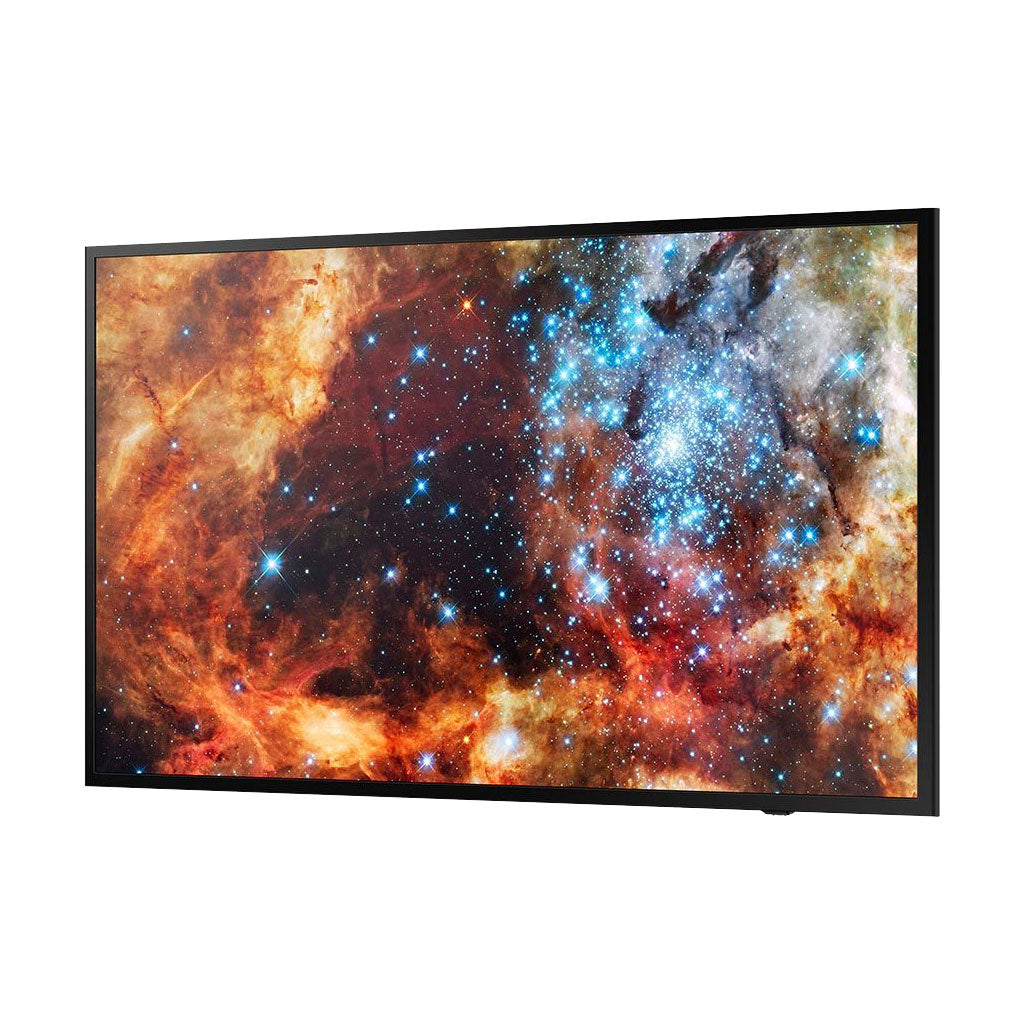

Model - DB49J
Digital Signage Projects with Full HD Resolution / HDMI / USB / DVI / VGA / RS232 & RJ45 / Wifi Ready / Built-in-Speaker / Inbuilt Media Player & Magicinfo S3.
Expand Engagement Potential
The DBJ series elevates audience communication minus the hassle and financial burden. High-quality graphic presentation, 16/7 performance and an easy-to-use content management solution make for a powerful and efficient tool to deliver captivating messages.
Leverage All-in-One Capability
The embedded MagicInfo Player S5 simplifies the content deployment process by providing a convenient solution for seamless content scheduling and eliminating the need for a separate media player.
Enjoy Operational Flexibility
With the TIZEN 3.0 operating system, users receive a host of business-critical capabilities, ranging from advanced graphic presentation, easy open platform application development to remote management.
Protect Valuable Assets
The powerful Knox security platform provides the most rigorous defense possible. A rigid, three-layer architecture offers airtight protection at the application, platform and system layers, restricting access to content and hardware.
Extend Beyond Display
Eliminate the need to have a PC nearby to manage content. All you need is a keyboard and mouse to access and remotely control your off-site PC from the display through a secure connection.
| Panel | |
| Diagonal Size | 49" |
| Type | 60Hz D-LED BLU |
| Resolution | 1920 x 1080 (Full HD) |
| Pixel Pitch(mm) | 0.18642(H) x 0.55926(V) |
| Active Display Area(mm) | 1073.78(H) x 604.00(V) |
| Brightness(Typ.) | 300 nit |
| Contrast Ratio |
3000:1 |
| Viewing Angle(H/V) | 178:178 |
| Response Time(G-to-G) | 8ms |
| Display Colors | 16.7 M |
| Color Gamut | 72% |
| Haze | 2% |
| Display | |
| Dynamic C/R | MEGA |
| H-Scanning Frequency | 30 ~ 81kHZ |
| V-Scanning Frequency | 48 ~ 75HZ |
| Maximum Pixel Frequency | 148.5MHz |
| SOUND | |
| Speaker Type | Built in Speaker (10W + 10W) |

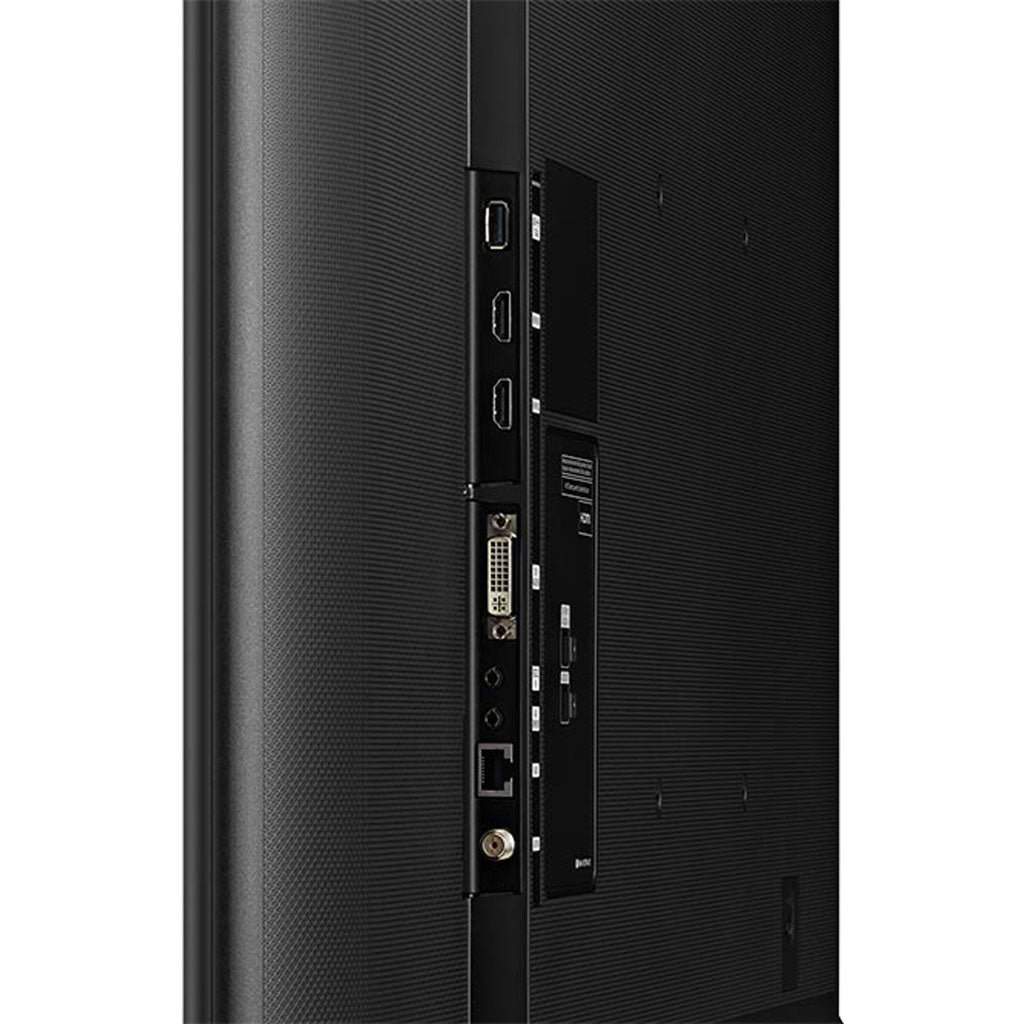

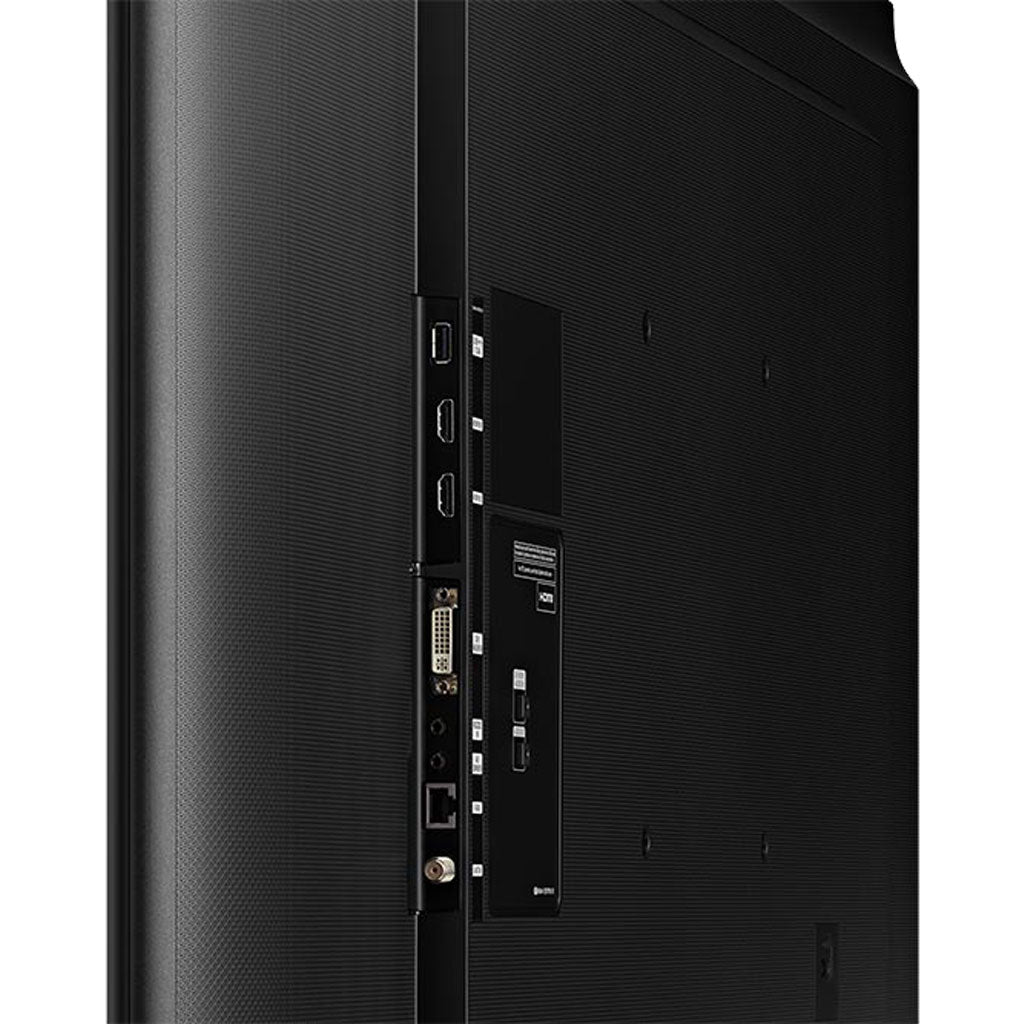

| Connectivity - Input | |
| RGB | N/A |
| Video | HDMI 1.4 (2), DVI-D |
| HDCP | HDCP 2.2 |
| Audio | Stereo Mini Jack, DVI/HDMI/Audio(Common) |
| USB | USB 2.0 x 1 |
| Connectivity - OUTput | |
| RGB | N/A |
| Video | N/A |
| Audio | Stereo Mini Jack |
| Power Out | N/A |
| External Control | RS232C(in/out) thru stereo jack, RJ45 |
| External Sensor | IR |
| Tuner | Yes(only for NA) |
| POWER | |
| Type | Internal |
| Power Supply | AC 100 - 240 V~ (+/- 10 %), 50/60 Hz |
| Consumption (On mode) |
Max[W/h] : 121 Typical[W/h] : (W/W)83, (US)42, (KR)83 BTU(Max) : 412.6 Sleep mode : less than 0.5W Off mode : 0 |
| Operating conditions | |
| Recommended Usage Hours | 16/7 |
| Operating Temperature | 0.0 ℃ ~ 40.0 ℃ |
| Humidity | 10.0 % ~ 80.0 % |
| Internal Player | |
| Processor | Coretex A72 1.7GHz Quad-Core CPU |
| On-Chip Cache Memory | L1 Instruction Cache : 48KB L1 Data Cache : 32KB L2 Cache : 2MB |
| Clock Speed | 1.7GHz Quad-Core CPU |
| Main Memory Interface | 2.5GB LPDDR4 1400MHz 64bit |
| Graphics | 2D & 3D Graphic Accelerator Data Format : 32bpp Graphic resolution : 1920x1080 Output resolution : 1920x1080 |
| Storage (FDM) | 8GB (3.88GB Occupied by O/S, 4.12GB Available) |
| Multimedia | Video Decoder - MPEG 1/2/4, H.263, H.264/AVC - UHD H.264/AVC, VC-1, AVS/AVS+, MVC - VP8, VP9, HEVC, JPEG Audio DSP(Decoder) - MPEG, AC3, AC4, DD, MP3 and etc |
| IO Ports | USB 2.0 |
| Operating System | Tizen 3.0 (VDLinux) |
| Accessories | |
| Included accessories | Quick Setup Guide, Regulatory Guide, Warranty Card, Power Cord, Remote Controller, Batteries, RS232C(IN) adapter |
| Optional accessories |
Stand : N/A Mount : WMN4070SE Specialty : N/A |
| Media Player | |
| Media Player | SBB (Not attatchable) |
| PHYSICAL SPECIFICATION | |

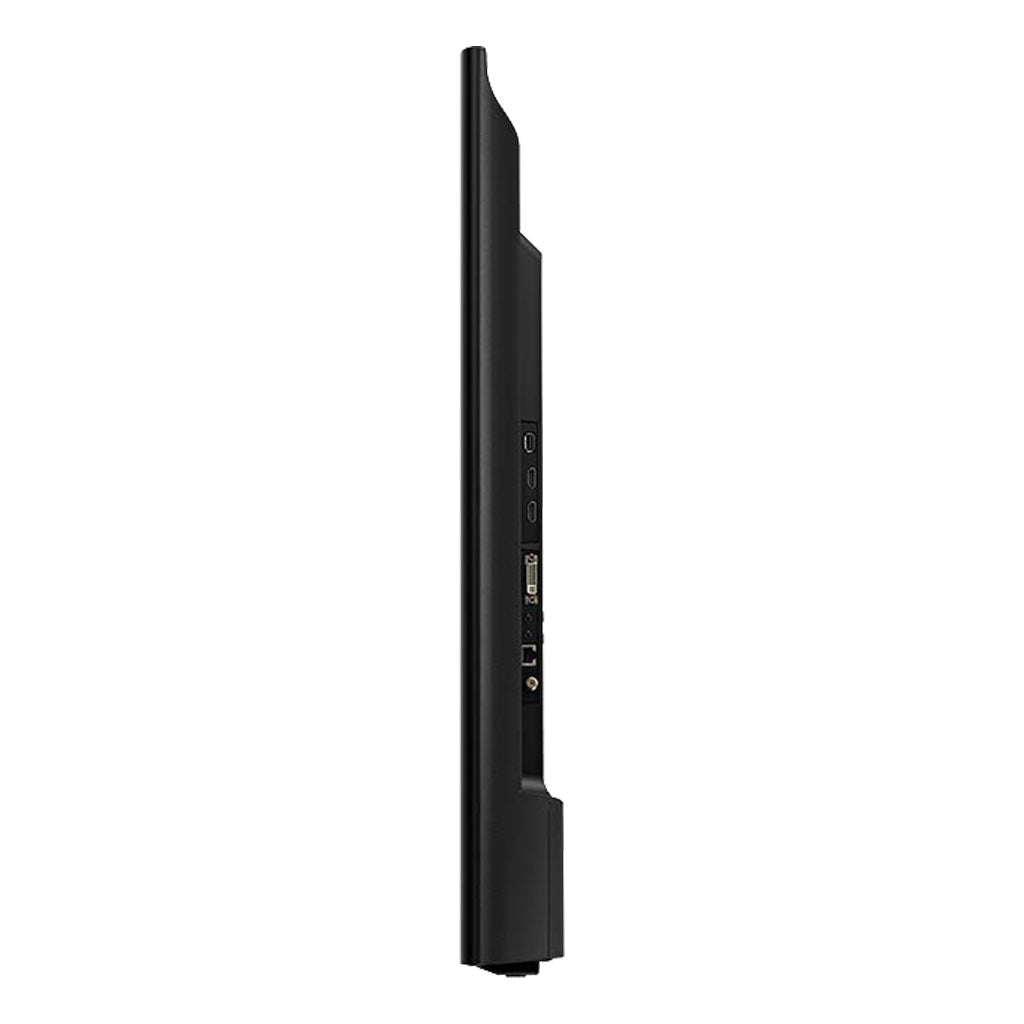

| Bezel width | 17.4(Top), 18.5(Bottom), 21.5(Side) |
| Set dimensions (W x H x D) | 1118.8 X 650.0 X 74.2 mm |
| Package dimensions (W x H x D) | 1236 X 750 X 161 |

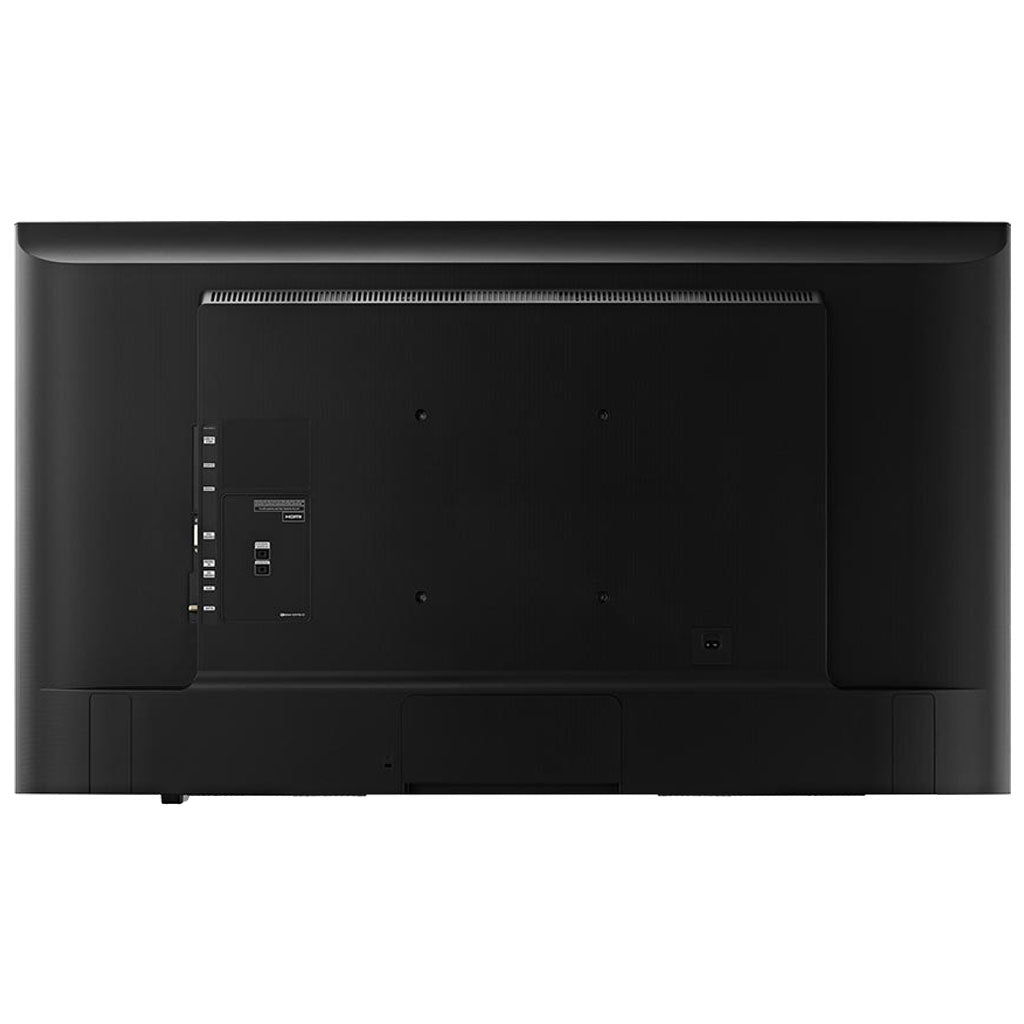

| VESA Mount | 200 x 200mm |
| Set weight | 10.2 kg |
| Package weight | 14.8 kg |
