Model - DC43J
Digital Signage Projects with Full HD Resolution / HDMI / USB / DVI / VGA / RS232 & RJ45 / Built-in-Speaker / Inbuilt Media Player & Magicinfo Lite.
Fits Any Budget
The DC-J Series is Samsung’s most affordable commercial-grade edge-lit LED digital signage solution. Now impactful and flexible messaging is within reach of every business.
Full HD for Sharp, Captivating Messages
Achieve sharp, detail-rich images and crisp, legible type with the edge-lit LED panel featuring 1920 x 1080 Full HD resolution with 300 nits brightness and a 3,000:1 contrast ratio.
Reliable 16/7 Operation
Samsung digital signage displays are designed from the chassis up to deliver the high quality images with exceptional reliability. Unlike most home TVs, they’re designed specifically for long hours of continuous use backed by a 3-year onsite warranty.
MagicInfo Lite for Simple, Intuitive Content Management
With Samsung MagicInfo Lite, you can easily play a large range of content including video, images and photos—either on demand or from a schedule. Files can be easily accessed from a USB stick, connected player or drive.
Versatile Connectivity

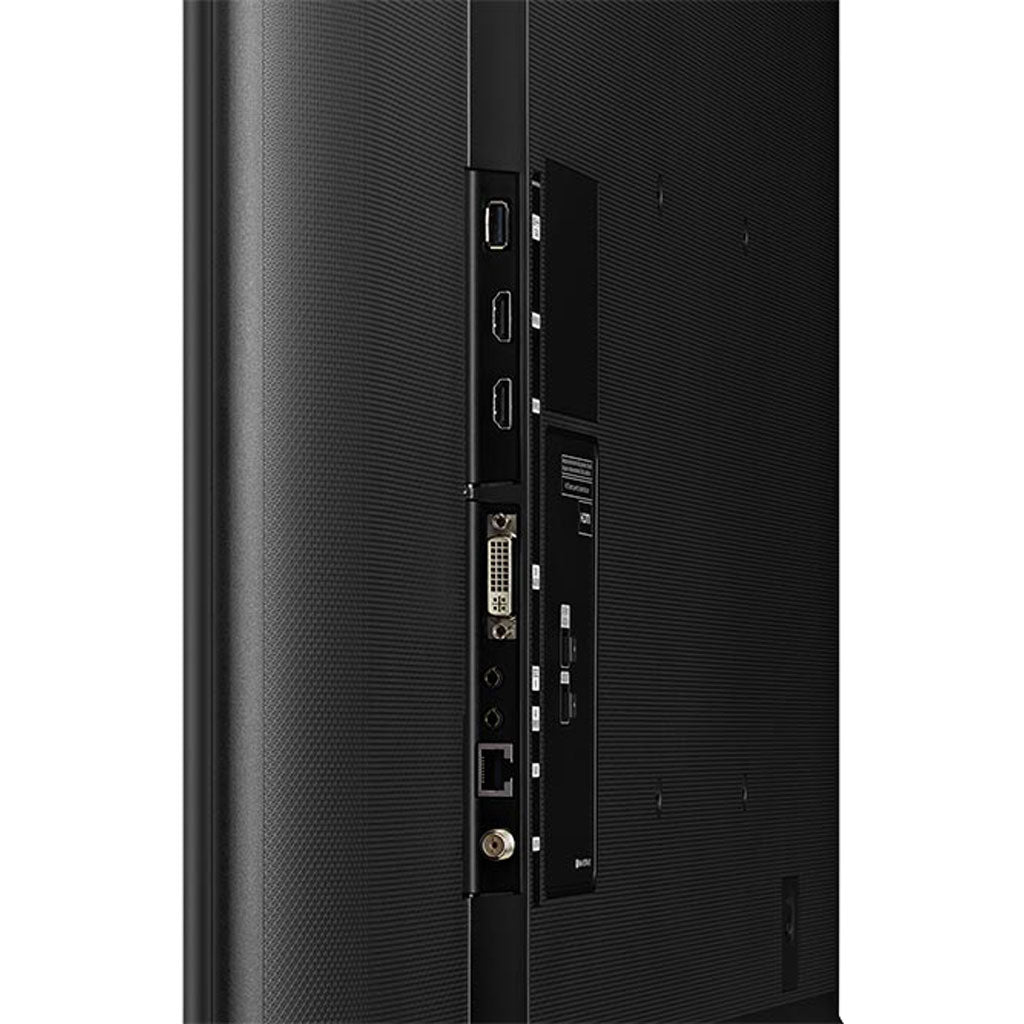

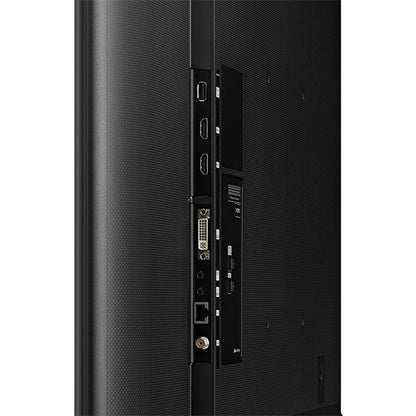

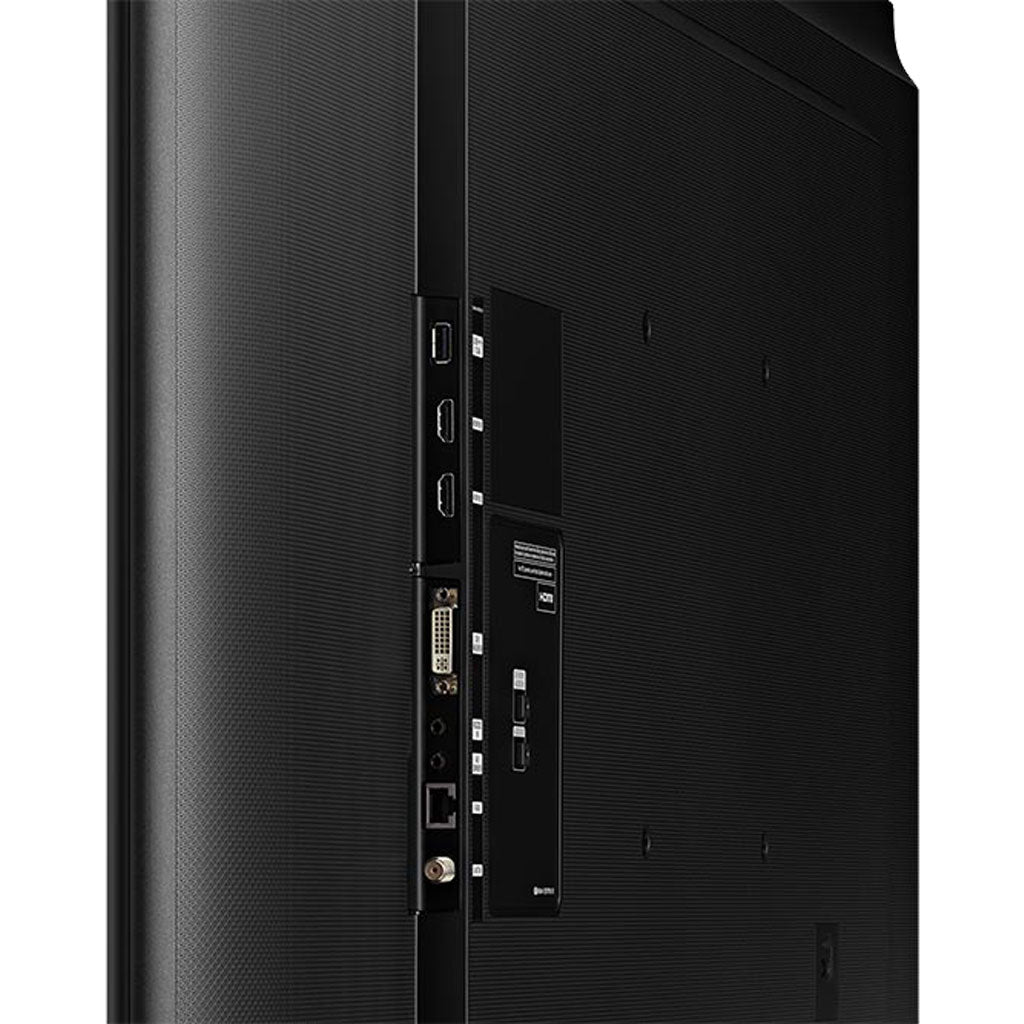

Connect the DC-J Series to other digital signage easily. Inputs include HDMI, DVI-I, Component and Composite, as well as USB, RS232C and RJ45 connections. You can also attach an optional set-back box media player, which expands the DC-J Series capabilities even further.
Built-In Tuner
The DB-J Series is equipped with a built-in tuner so you can broadcast content without the need for additional hardware, saving your business money.
| Panel | |
| Diagonal Size | 43" |
| Type | 60Hz D-LED BLU |
| Resolution | 1920*1080 (Full HD) |
| Pixel Pitch(mm) | 0.16333(H) x 0.49005(V) |
| Active Display Area(mm) | 940.89(H) x 529.25(V) |
| Brightness(Typ.) | 330 nit |
| Contrast Ratio |
3000:1 |
| Viewing Angle(H/V) | 178:178 |
| Response Time(G-to-G) | 8ms |
| Display Colors | 16.7 M |
| Color Gamut | 72% |
| Haze | 2% |
| Display | |
| Dynamic C/R | MEGA |
| H-Scanning Frequency | 30 ~ 81kHZ |
| V-Scanning Frequency | 48 ~ 75HZ |
| Maximum Pixel Frequency | 148.5MHz |
| SOUND | |
| Speaker Type | Built in Speaker(10W + 10W) |
| Connectivity - Input | |
| RGB | DVI-I |
| Video | HDMI 1.4 (2), Component(CVBS Common) |
| HDCP | HDCP 1.4 |
| Audio | Stereo Mini Jack, RGB/DVI/HDMI/CVBS/Component Audio(Common) |
| USB | USB 2.0 x 1 |
| Connectivity - OUTput | |
| RGB | N/A |
| Video | N/A |
| Audio | Stereo Mini Jack |
| Power Out | N/A |
| External Control | RS232C(In) thru stereo jack, RJ45 |
| External Sensor | IR |
| Tuner | Yes(only for NA/KR) |
| POWER | |
| Type | Internal |
| Power Supply | AC 100 - 240 V~ (+/- 10 %), 50/60 Hz |
| Consumption (On mode) |
Max[W/h] : 99 Typical[W/h] : (W/W)53, (US)38, (KR)62 BTU(Max) : 337 Sleep mode : less than 0.5W Off mode : 0 |
| Operating conditions | |
| Recommended Usage Hours | 16/7 |
| Operating Temperature | 0.0 ℃ ~ 40.0 ℃ |
| Humidity | 10.0 % ~ 80.0 % |
| Internal Player | |
| Processor | MIPS 24K |
| On-Chip Cache Memory | L1 : 16KB/16KB L2 : 128KB |
| Clock Speed | 650MHz |
| Main Memory Interface | 512MB |
| Graphics | N/A |
| Storage (FDM) | 179MB |
| Multimedia | N/A |
| IO Ports | N/A |
| Operating System | Samsung Proprietary OS(VDLinux) |
| Accessories | |
| Included accessories | Quick Setup Guide, Regulatory Guide, Warranty Card,Power Cord, Remote Controller, Batteries, RS232C(IN) adapter,ANT Shield Box(Only for KR) |
| Optional accessories |
Stand : N/A Mount : WMN4070SD Specialty : N/A |
| Media Player | |
| Media Player | SBB (Not attachable/Optional) |
| PHYSICAL SPECIFICATION | |
| Bezel width | 17.3(Top), 18.3(Bottom), 21.3(Side) |
| Set dimensions (W x H x D) | 985.5 X 574.8 X 73.4 mm |
| Package dimensions (W x H x D) | 1099 X 672 X 156 mm |
| VESA Mount | 200 x 200mm |
| Set weight | 7.8 kg |
| Package weight | 11.5 kg |
