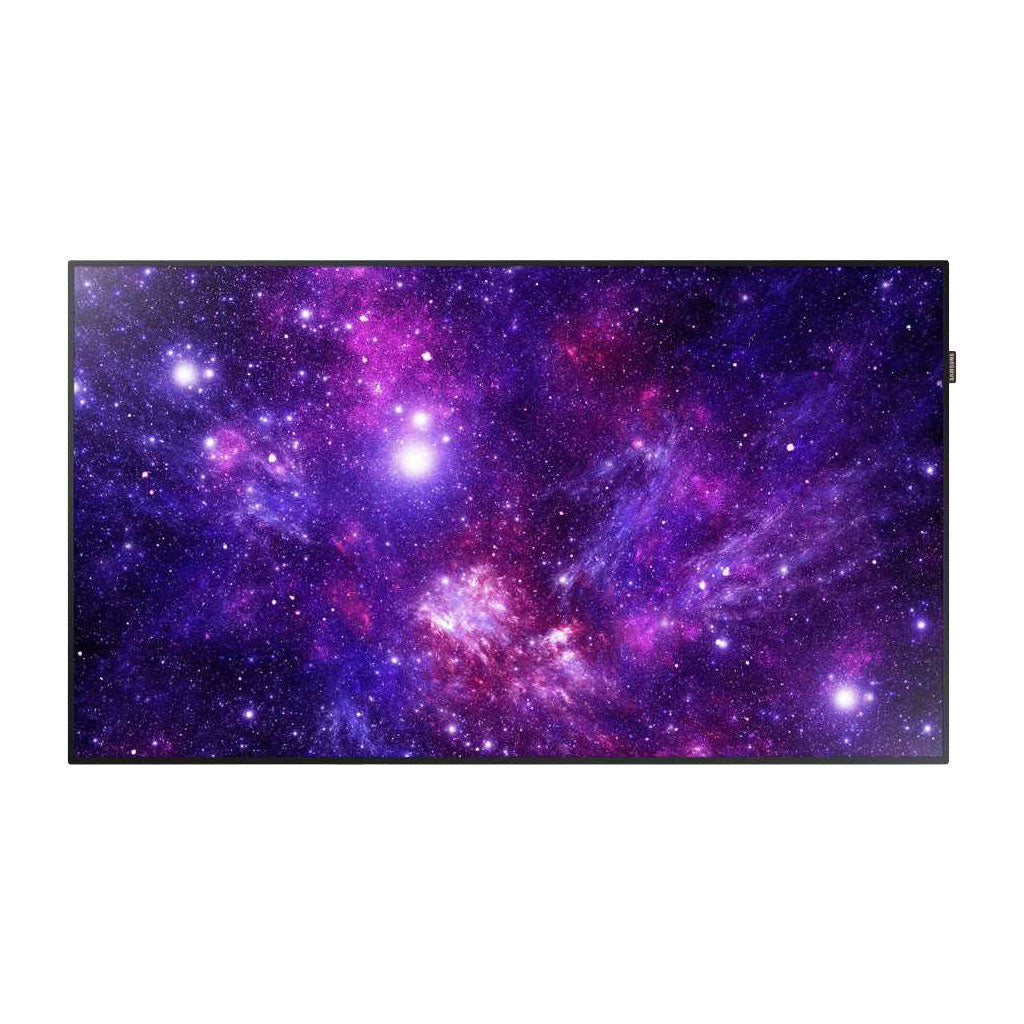

Model - DC49H Full HD Resolution / HDMI / USB / DVI / VGA / RS232 & RJ45 / Built-in-Speaker

Model - DC49H Full HD Resolution / HDMI / USB / DVI / VGA / RS232 & RJ45 / Built-in-Speaker

Regular price Rs. 65,000.00
Regular price Sale price Rs. 65,000.00
Sale Sold out
Tax included.
View full details

Model - DC49H
Digital Signage Projects with Full HD Resolution / HDMI / USB / DVI / VGA / RS232 & RJ45 / Built-in-Speaker / Inbuilt Media Player & Magicinfo Lite.

Easily elevate business branding and messaging with brilliant and durable signage
DCH Series displays deliver industry-leading picture quality, proven Samsung technology and a wide array of sizing options for adaptable and dependable business usage to meet various business needs. The displays offer reliable 16/7 usage to ensure that your business messages are efficiently conveyed. Plus, 350 nit brightness and crystal clear image quality enable business owners to captivate their customers

Content Auto Play in USB memory or internal memory
MagicInfo Lite Player uses a sophisticated technology to play a huge range of content including video, images, photos on demand, or from a schedule. Customers can easily play files from, or transfer between, the large internal memory or external USB devices plugged into the in-built port. The MagicInfoSlide folder on the USB memory has content that is listed in alphabetical order which is easier and convenient to use as it does not require separate schedules.

Control Displays in multiple locations easily and instantly
MagicInfo Lite solution that comes with the embedded media player extends the remote content management over network through MagicInfo server. Media contents of the USB memory stick plugged in to the back of the DCH Series displays can be scheduled to play from a remote PC. The connection to MagicInfo server allows remote monitoring and management of the DCH Series displays. Device information, content playback schedules, network data monitoring, time scheduling, alarms and various controls are all available remotely.

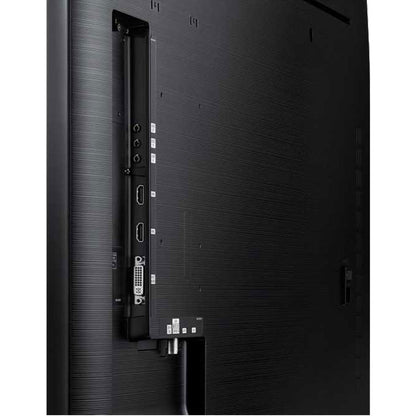

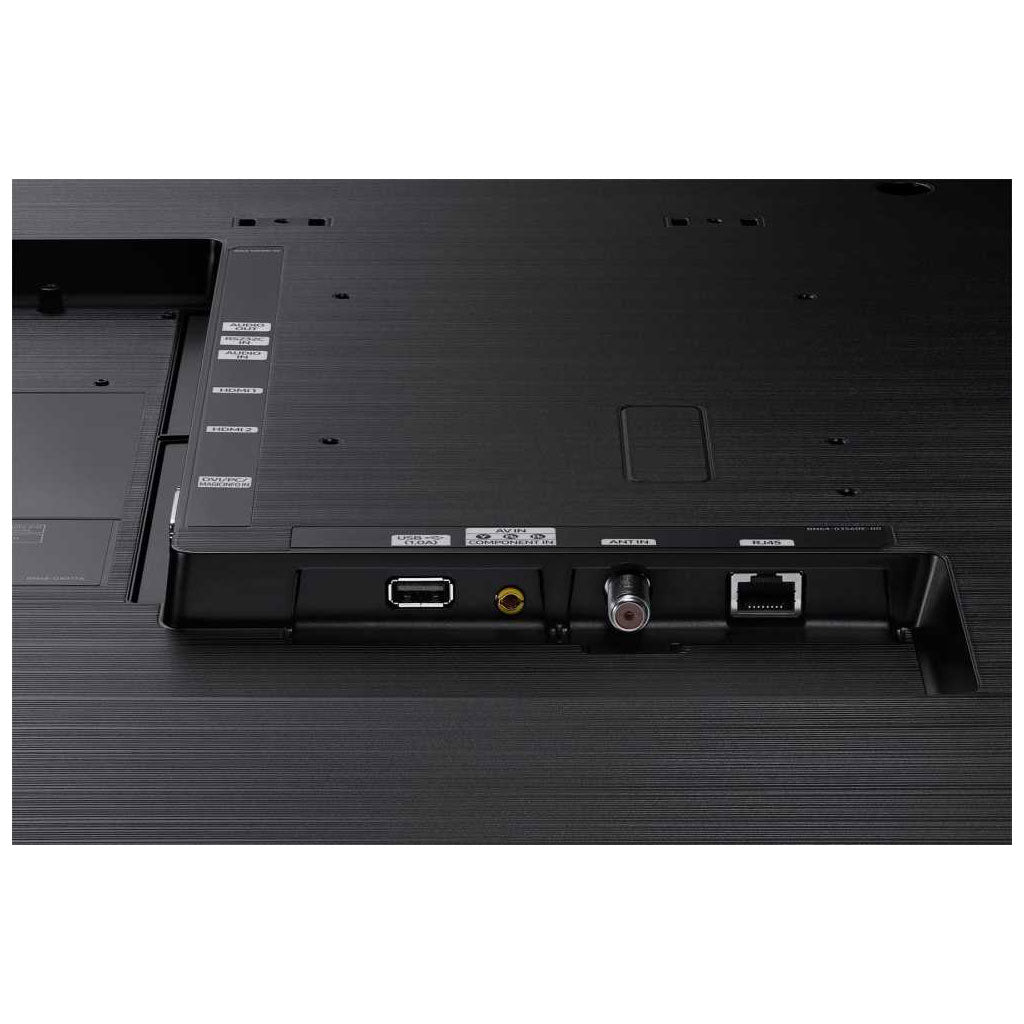

Easily Manage digital signage with a versatile connectivity
Connect the display to other digital signage easily with interfaces based on your specific needs. The displays provide not only the essential connections businesses use the most but support for a wide range of source device types. Interfaces include HDMI, DVI, D-sub, Component and Composite input as well as RS-232C and RJ45 for extensive connectivity. In addition, DCH series has a space to attach SBB player, which can transform the signage into all-inclusive digital signage solutions.

Diagonal Size 49"
Type 60Hz E-LED BLU
Resolution 1920 x 1080 (Full HD)
Pixel Pitch(mm) 0.186 x 0.559
Active Display Area(mm) 1073.78 x 604.00
Brightness(Typ.) 350 nit
Contrast Ratio


Viewing Angle(H/V) 178:178
Response Time(G-to-G) 8ms
Display Colors 16.7 M
Color Gamut 72%
Haze 2%
Dynamic C/R MEGA
H-Scanning Frequency 30 ~ 81kHZ
V-Scanning Frequency 48 ~ 75HZ
Maximum Pixel Frequency 148.5MHz
Speaker Type Built in Speaker(10W + 10W)
Connectivity - Input
Video HDMI 1.4 (2), Component(CVBS Common)
Audio Stereo Mini Jack, RGB/DVI/HDMI/Component Audio(Common)
USB USB 2.0 x 1
Connectivity - OUTput
Video N/A
Audio Stereo Mini Jack
Power Out N/A
External Control RS232C(In) thru stereo jack, RJ45
External Sensor IR
Tuner Yes(only for NA/KR)
Type Internal
Power Supply AC 100 - 240 V~ (+/- 10 %), 50/60 Hz
Consumption (On mode) Max[W/h] : 99
Typical[W/h] : (W/W)52, (US)45, (KR)66
BTU(Max) : 337.59
Sleep mode : less than 0.5W
Off mode : 0
Operating conditions
Recommended Usage Hours 16/7
Operating Temperature 0.0 ℃ ~  40.0 ℃
Humidity 10.0 %  ~  80.0 %
Internal Player
Processor MIPS 24K
On-Chip Cache Memory L1 : 16KB/16KB L2 : 128KB
Clock Speed 650MHz
Main Memory Interface 512MB
Graphics N/A
Storage (FDM) 179MB
Multimedia N/A
IO Ports N/A
Operating System Samsung Proprietary OS(VDLinux)
Included accessories Quick Setup Guide, Regulatory Guide, Warranty Card, Power Cord, Remote Controller, Batteries, RS232C(IN) adapter
Optional accessories Stand : STN-L4655E
Mount : WMN4270SD
Specialty : CML450H
Media Player
Media Player SBB (Not attachable/Optional)
Bezel width 9.0 (Top/Side), 11.0 (Bottom)
Set dimensions (W x H x D) 1096.9 X 629.1 X 30.5 mm
Package dimensions (W x H x D) 1214 x 721 x 157 mm
VESA Mount 400 x 400mm
Set weight 13.1kg
Package weight 17.4 kg
