Model - ED55D

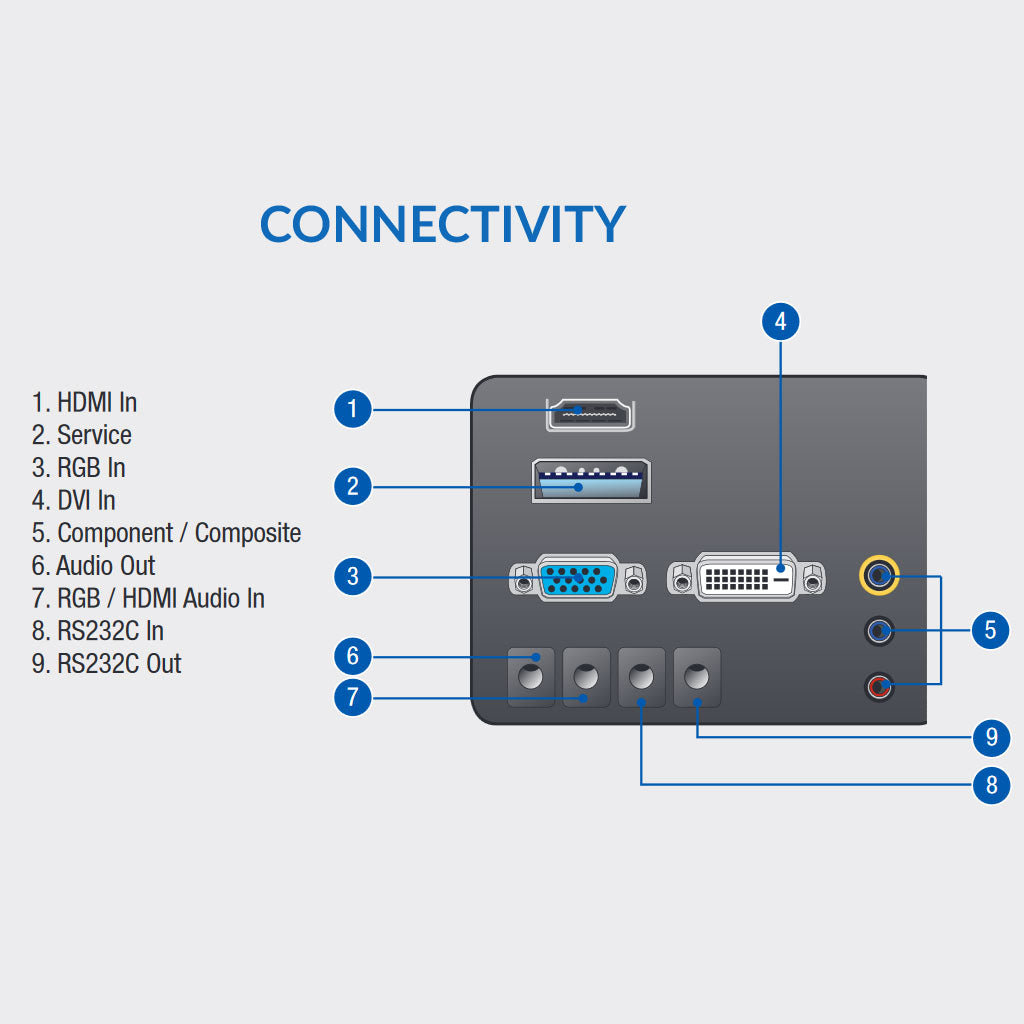

Connectivity - HDMI | Service | RGB | DVI | Component / Composite | Audio Out | RS232C In | RS232C Out
Overview
The Samsung ED55D commercial grade display features enhanced connectivity options compared to its predecessor model, including DVI, Component and Composite inputs, while maintaining simplicity and ease of use. The 55" direct-lit LED screen showcases excellent full HD image quality in an affordable fashion, and delivers the commercial reliability you expect from Samsung.
- Direct-Lit LED Display
- Enhanced Connectivity Options
- Our Most Affordable Commercial Grade Series
- 3-Year Onsite Warranty
Direct-Lit LED Backlight
Direct-lit LED technology delivers sharp, high-resolution images, along with the uniform brightness typical of traditional CCFL-backlit displays. It also uses less energy, with savings of up to 50% over CCFL. And it does it all with a cost comparable to CCFL.
Enhanced Connectivity Options
Discover improved connectivity options compared to predecessor models. DVI, Component and Composite inputs, in addition to VGA, HDMI and audio out, maintain simplicity while enhancing versatility to meet your business's digital signage needs.
Commercial Reliability
Samsung stands as the market share leader in digital signage. So while the ED-D Series displays are affordable, they’re also every bit as reliable as our most expensive display panels. We demonstrate our confidence in the quality of our product with a 3-year onsite warranty.
Optional Touch Overlay
The optional touch overlay accessory transforms your display into an interactive whiteboard. Create more collaborative presentations or a dynamic customer experience with tangible results for your business.
Display | |
Screen Size | 55" |
Panel Technology | 120Hz LED BLU |
Native Resolution | 1920x1080 (16:9) |
Brightness (Max) | 350 nits |
Contrast Ratio (Typical) | 5000:1 |
Viewing Angle | 178° / 178° |
Orientation |
Landscape / Portrait |
Response Time | 8ms |
Connectivity | |
Input | Video:VGA (D-Sub 15 Pin), DVI-D, Component/Composite, HDMI Audio: Stereo Mini Jack |
Output | Audio: Stereo Mini Jack |
External Control | RS232C (In/Out) thru Stereo Jack |
External Sensor | N/A |
Power | |
Power Supply | AC 100 - 240 V~ (+/- 10 %), 50/60 Hz |
Power Consumption (Typical / Max) | 120W / 165W |
Power Consumption (Standby) | < 0.5W |
Environmental Conditions | |
Operating Temperature | 0ºC~ 40ºC |
Operating Humidity | 10~80% |
Features | |
Special | Built in Speaker (10W + 10W), PIP/PBP, Narrow Bezel, Light Weight, RS232 In/Out, 1 D-Sub & 1 HDMI, No function key |
VESA Standard Wall Mount Interface | 400 x 400mm |
Accessories | |
Included | Quick Setup Guide, Warranty Card, D-Sub Cable, Power Cord, Remote Controller, Batteries |
Optional Stand | WMN4270SD, WMN250MD |
Optional Mount | STN-L4055AD, STN-L4655E |
PHYSICAL SPECIFICATION | |
Product Dimension Without Stand (W x H x D) | 49.1" x 28.5" x 3.7" |
Packaging Dimension (W x H x D) | 54.4" x 33" x 6.7" |
Bezel Width | 17.0mm (Bottom 21.5mm) |
Product Weight | 40.3 lbs. |
Shipping Weight | 51.6 lbs. |
