You Can broadcast your content in minutes to any number of screens and locations.
Model - PM32F  High End Professional Display / VGA / DVI / HDMI / USB / LAN / Internal Storage / Magic Info Software / Speakers / Wifi / 400-500Nits Brightness - ThinPC

Model - PM32F High End Professional Display / VGA / DVI / HDMI / USB / LAN / Internal Storage / Magic Info Software / Speakers / Wifi / 400-500Nits Brightness

Rs. 55,000.00


Model - PM32F
High End Professional Display / VGA / DVI / HDMI / USB / LAN / Internal Storage / Speakers / Wifi

The all-new embedded media player powered by TIZEN™
The new 2016 SMART Signage that supports SSSP 4.0 allows for a stronger, faster and more stable performance than its previous models. Transcending past hardware performance, the new SSSP 4.0 enables CMS partners to develop and deploy advanced web applications which can help to effectively manage content and SMART Signage for their customers.
◆ Powerful Performance
◆ Easy Development
◆ Simple Usability

Offering robust options for content creation, scheduling and deployment tools
A key aspect of the enhanced TIZEN-based SSSP 4.0 platform, Samsung’s MagicInfo Player S4 enables users to fully leverage the power of their display network from any location through a centralized server. More useable than ever, MagicInfo Player S4 merges a dedicated Backup Player with DataLink content streaming capabilities to reduce the effort needed to share vital information. ◆ Powerful Performance
◆Simple Usability
◆ Total Solution

Discover displays that break the previous limits of slim design
Boasting of the slimmest depth design in the industry (29.9mm), Samsung’s new PHF and PMF Series standalone displays provide a compact, but strong signage solution for environments limited by space or configuration. Available in a range of sizes (43-, 49- and 55-inch models available for both PHF and PMF signage, with an additional 32-inch model available for the PMF Series), these standalone displays feature a narrow-bezel configuration to further maintain viewers’ focus aimed at on-screen content.

Unlock easier and more flexible control due to a centralized infrared receiver
The standalone displays’ integrated centralized infrared receiver (IR) ensures easier and more flexible user control. All models can receive the IR signal on individual panels via Central IR. Through tailored installation or mounting, users can navigate the IR functionality from various locations, further augmenting uninterrupted performance.

Bring an end to unwanted glare and always be assured of high visibility and readability
Equipped with a non-glare frontal panel, the PHF and PMF Series displays reduce natural and ambient light interference to ensure continuous readability in any location. Image visibility and information readability are deemed to be very high, because it is less reflective under light or sunlight, which poses no issues when used with QSR menu boards, or airport flight schedule boards with ample natural light.

Put your worries to rest knowing that your display is protected from a range of environmental conditions
All of Samsung’s new PMF and PHF standalone displays are IP5x certified, signifying their dust-resistant design and ability to withstand a range of environmental conditions.
The certification alleviates concerns about dust accumulating on displays installed on subway trains or on external platforms. Customers can conveniently use this IP5x certified display without needing to prepare additional enclosure in dusty places. Uninterrupted, 16/7 content delivery is always assured regardless of surrounding natural or interactive conditions.



Panel
Diagonal Size 32"
Type 60Hz E-LED BLU
Resolution 1920 x 1080 (Full HD)
Pixel Pitch(mm) 0.360(H) x 0.360(V)
Active Display Area(mm) 698.4(H) x 392.85(V)
Brightness(Typ.) 400 nit
Contrast Ratio

5000:1

Viewing Angle(H/V) 178:178
Response Time(G-to-G) 8ms
Display Colors 10bit Dithering - 1.07Billion
Color Gamut 72%
Haze 2%
Display
Dynamic C/R Mega
H-Scanning Frequency 30 ~ 81kHZ
V-Scanning Frequency 48 ~ 75HZ
Maximum Pixel Frequency 148.5MHz
SOUND
Speaker Type Built in Speaker (10W + 10W)

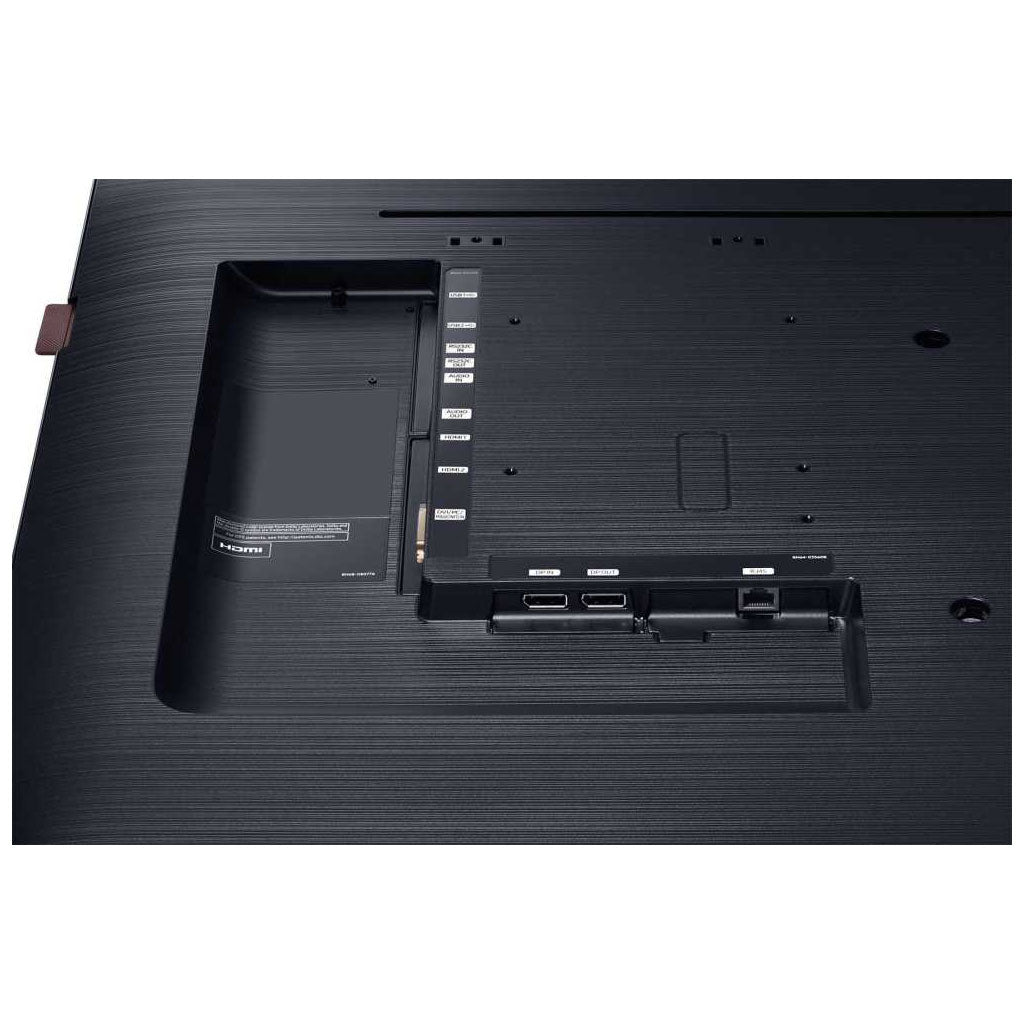

Connectivity - Input
RGB DVI-I(D-Sub Common), Display Port 1.2 (2)
Video HDMI (2)
HDCP HDCP 2.2
Audio Stereo mini Jack
USB USB 2.0 x 2
Connectivity - OUTput
RGB DP1.2(Loop-out)
Video N/A
Audio Stereo Mini Jack
Power Out N/A
External Control RS232C(in/out) thru Stereo Jack, RJ45
External Sensor N/A
Tuner Yes(only for NA)
POWER
Type Internal
Power Supply AC 100 - 240 V~ (+/- 10 %), 50/60 Hz
Consumption (On mode) Max[W/h] : 88.0
Typical[W/h] : EU 61, US 42, WW 61
BTU(Max) : 300.08
Sleep mode : less than 0.5W
Off mode : less than 0.5W
Operating conditions
Recommended Usage Hours 16/7
Operating Temperature 0.0 ℃  ~   40.0   ℃
Humidity 10.0  %  ~   80.0   %
Internal Player
Processor Cortex-A12 1.3GHz Quad Core CPU
On-Chip Cache Memory L1 (I/D) : 32KB / 32KB L2 (Unified) : 1MB
Clock Speed 1.3GHz CPU Quad
Main Memory Interface 2.5GB 3 channel 96bit DDR3-933 (1866MHz)
Graphics 2D & 3D Graphics Engine Data Format : 32bpp Graphic resolution : 1920x1080 Output resolution : up to 3840x2160 (Scale up from graphic processing result.) - Supports OpenGL ES
Storage (FDM) 8GB (3.75GB Occupied by O/S, 4.25GB Available, )
Multimedia Video Decoder - MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC - VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 Audio DSP (Decoder) - AC3 (DD), MPEG, DTS and etc.
IO Ports USB 2.0
Operating System Tizen 2.4 (VDLinux)
Accessories
Included accessories Quick Setup Guide, Regulatory Guide , Warranty Card, Power Cord, Remote Controller, Batteries, RS232C(IN) adapter, Cover Jack
Optional accessories Stand : STN-L3240E
Mount : WMN4070SD
Specialty : CML400XJ
Media Player
Media Player SBB
PHYSICAL SPECIFICATION
Bezel width 8.9(Even)
Set dimensions (W x H x D) 721.2 X 415.6 X 29.9 mm
Package dimensions (W x H x D) 796 X 484 X 132 mm
VESA Mount 200 x 200 mm
Set weight 5.6 kg
Package weight 7 kg


& MANY MORE....
