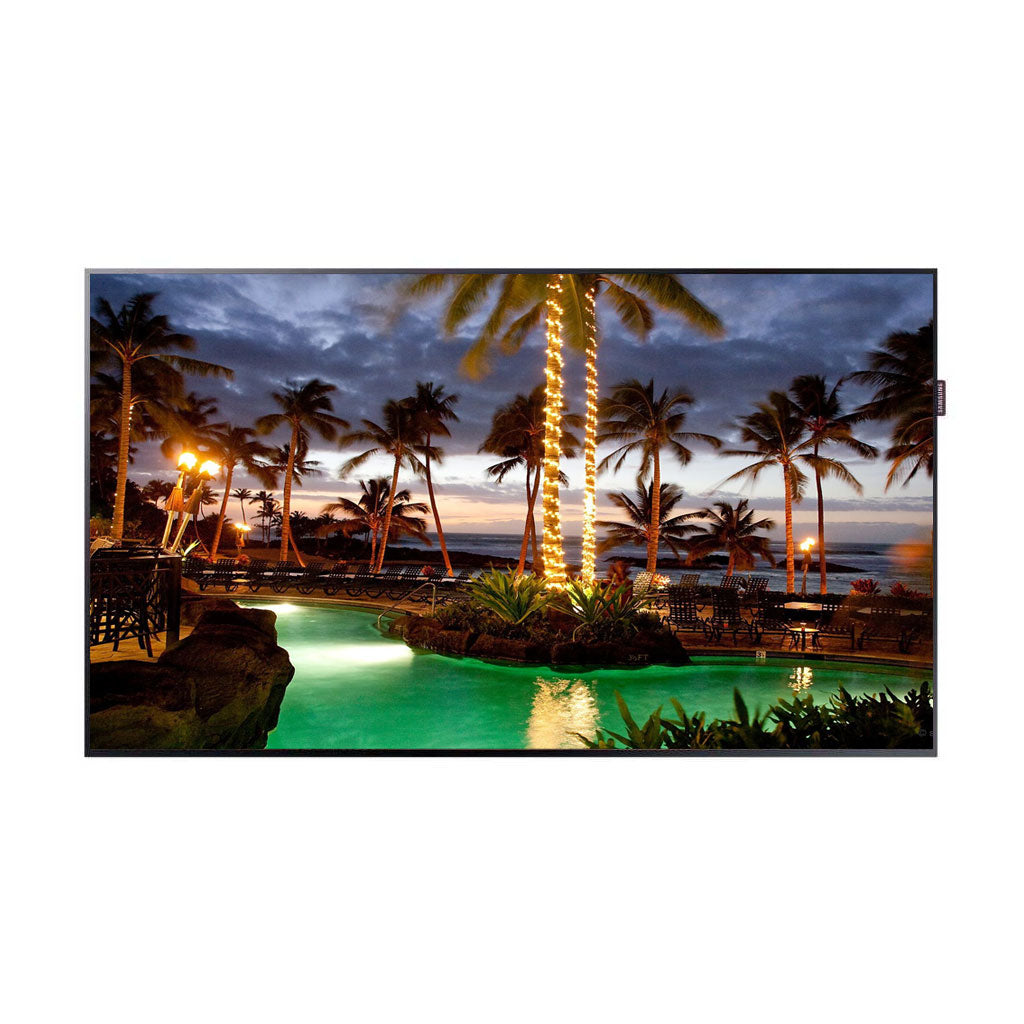

Model - PM49F
High End Professional Display / VGA / DVI / HDMI / USB / LAN / Internal Storage / Magic Info Software / Speakers / Wifi / 400-500Nits Brightness
The all-new embedded media player powered by TIZEN™
The new 2016 SMART Signage that supports SSSP 4.0 allows for a stronger, faster and more stable performance than its previous models. Transcending past hardware performance, the new SSSP 4.0 enables CMS partners to develop and deploy advanced web applications which can help to effectively manage content and SMART Signage for their customers.
◆ Powerful Performance
◆ Easy Development
◆ Simple Usability
Offering robust options for content creation, scheduling and deployment tools
A key aspect of the enhanced TIZEN-based SSSP 4.0 platform, Samsung’s MagicInfo Player S4 enables users to fully leverage the power of their display network from any location through a centralized server. More useable than ever, MagicInfo Player S4 merges a dedicated Backup Player with DataLink content streaming capabilities to reduce the effort needed to share vital information.
◆ Powerful Performance
◆Simple Usability
◆ Total Solution
Discover displays that break the previous limits of slim design

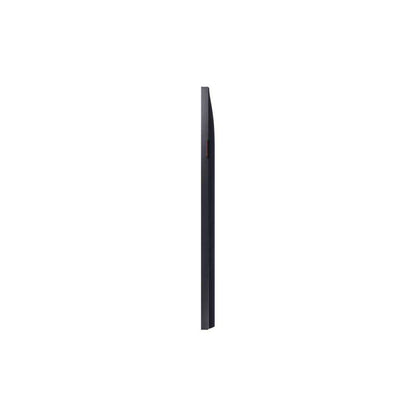

Boasting of the slimmest depth design in the industry (29.9mm), Samsung’s new PHF and PMF Series standalone displays provide a compact, but strong signage solution for environments limited by space or configuration. Available in a range of sizes (43-, 49- and 55-inch models available for both PHF and PMF signage, with an additional 32-inch model available for the PMF Series), these standalone displays feature a narrow-bezel configuration to further maintain viewers’ focus aimed at on-screen content.
Unlock easier and more flexible control due to a centralized infrared receiver
The standalone displays’ integrated centralized infrared receiver (IR) ensures easier and more flexible user control. All models can receive the IR signal on individual panels via Central IR. Through tailored installation or mounting, users can navigate the IR functionality from various locations, further augmenting uninterrupted performance.
Bring an end to unwanted glare and always be assured of high visibility and readability
Equipped with a non-glare frontal panel, the PHF and PMF Series displays reduce natural and ambient light interference to ensure continuous readability in any location. Image visibility and information readability are deemed to be very high, because it is less reflective under light or sunlight, which poses no issues when used with QSR menu boards, or airport flight schedule boards with ample natural light.
Put your worries to rest knowing that your display is protected from a range of environmental conditions
All of Samsung’s new PMF and PHF standalone displays are IP5x certified, signifying their dust-resistant design and ability to withstand a range of environmental conditions.
The certification alleviates concerns about dust accumulating on displays installed on subway trains or on external platforms. Customers can conveniently use this IP5x certified display without needing to prepare additional enclosure in dusty places. Uninterrupted, 16/7 content delivery is always assured regardless of surrounding natural or interactive conditions.
Panel | |
Diagonal Size | 49" |
Type | 60Hz E-LED BLU |
Resolution | 1920 x 1080 (Full HD) |
Pixel Pitch(mm) | 0.560(H) x 0.560(V) |
Active Display Area(mm) | 1073.779(H) x 604.00(V) |
Brightness(Typ.) | 500 nit |
Contrast Ratio |
4000:1 |
Viewing Angle(H/V) | 178:178 |
Response Time(G-to-G) | 8ms |
Display Colors | 10bit Dithering - 1.07Billion |
Color Gamut | 72% |
Haze | 25% |
Display | |
Dynamic C/R | Mega |
H-Scanning Frequency | 30 ~ 81kHZ |
V-Scanning Frequency | 48 ~ 75HZ |
Maximum Pixel Frequency | 148.5MHz |
SOUND | |
Speaker Type | Built in Speaker (10W + 10W) |

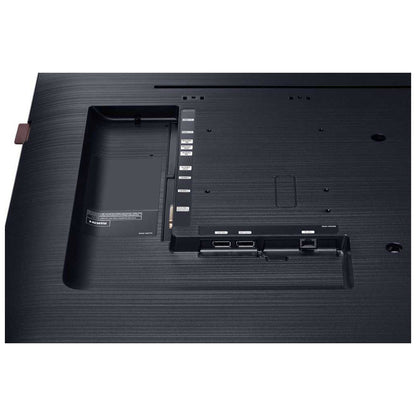

Connectivity - Input | |
RGB | DVI-I(D-Sub Common), Display Port 1.2 (2) |
Video | HDMI (2) |
HDCP | HDCP 2.2 |
Audio | Stereo mini Jack |
USB | USB 2.0 x 2 |
Connectivity - OUTput | |
RGB | DP1.2(Loop-out) |
Video | N/A |
Audio | Stereo Mini Jack |
Power Out | N/A |
External Control | RS232C(in/out) thru Stereo Jack, RJ45 |
External Sensor | N/A |
Tuner | Yes(only for NA) |
POWER | |
Type | Internal |
Power Supply | AC 100 - 240 V~ (+/- 10 %), 50/60 Hz |
Consumption (On mode) |
Max[W/h] : 165.0 Typical[W/h] : EU 98, US 47, WW 98 BTU(Max) : 562.65 Sleep mode : less than 0.5W Off mode : less than 0.5W |
Operating conditions | |
Recommended Usage Hours | 24/7 |
Operating Temperature | 0.0 ℃ ~ 40.0 ℃ |
Humidity | 10.0 % ~ 80.0 % |
Internal Player | |
Processor | Cortex-A12 1.3GHz Quad Core CPU |
On-Chip Cache Memory | L1 (I/D) : 32KB / 32KB L2 (Unified) : 1MB |
Clock Speed | 1.3GHz CPU Quad |
Main Memory Interface | 2.5GB 3 channel 96bit DDR3-933 (1866MHz) |
Graphics | 2D & 3D Graphics Engine Data Format : 32bpp Graphic resolution : 1920x1080 Output resolution : up to 3840x2160 (Scale up from graphic processing result.) - Supports OpenGL ES |
Storage (FDM) | 8GB (3.75GB Occupied by O/S, 4.25GB Available, ) |
Multimedia | Video Decoder - MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC - VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 Audio DSP (Decoder) - AC3 (DD), MPEG, DTS and etc |
IO Ports | USB 2.0 |
Operating System | Tizen 2.4 (VDLinux) |
Accessories | |
Included accessories | Quick Setup Guide, Regulatory Guide , Warranty Card, Power Cord, Remote Controller, Batteries, RS232C(IN) adapter, Cover Jack |
Optional accessories |
Stand : STN-L3240E Mount : WMN4070SD Specialty : CML400XJ |
Media Player | |
Media Player | SBB |
PHYSICAL SPECIFICATION | |
Bezel width | 6.9/6.9/8.9 |
Set dimensions (W x H x D) | 1092.6 X 624.8 X 29.9 mm |
Package dimensions (W x H x D) | 1195 X 721 X 167 mm |
VESA Mount | 400 x 400 mm |
Set weight | 13.2 kg |
Package weight | 18.1 kg |
