ThinPC

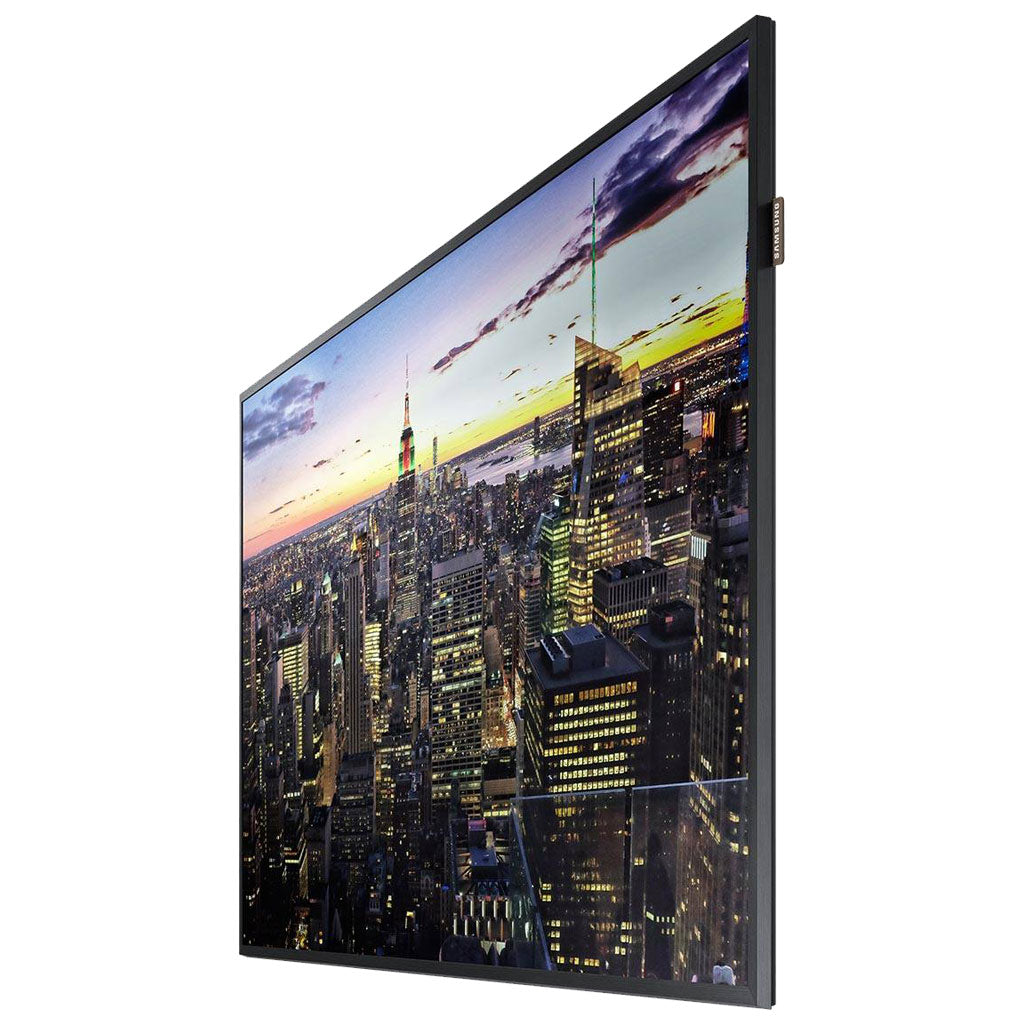

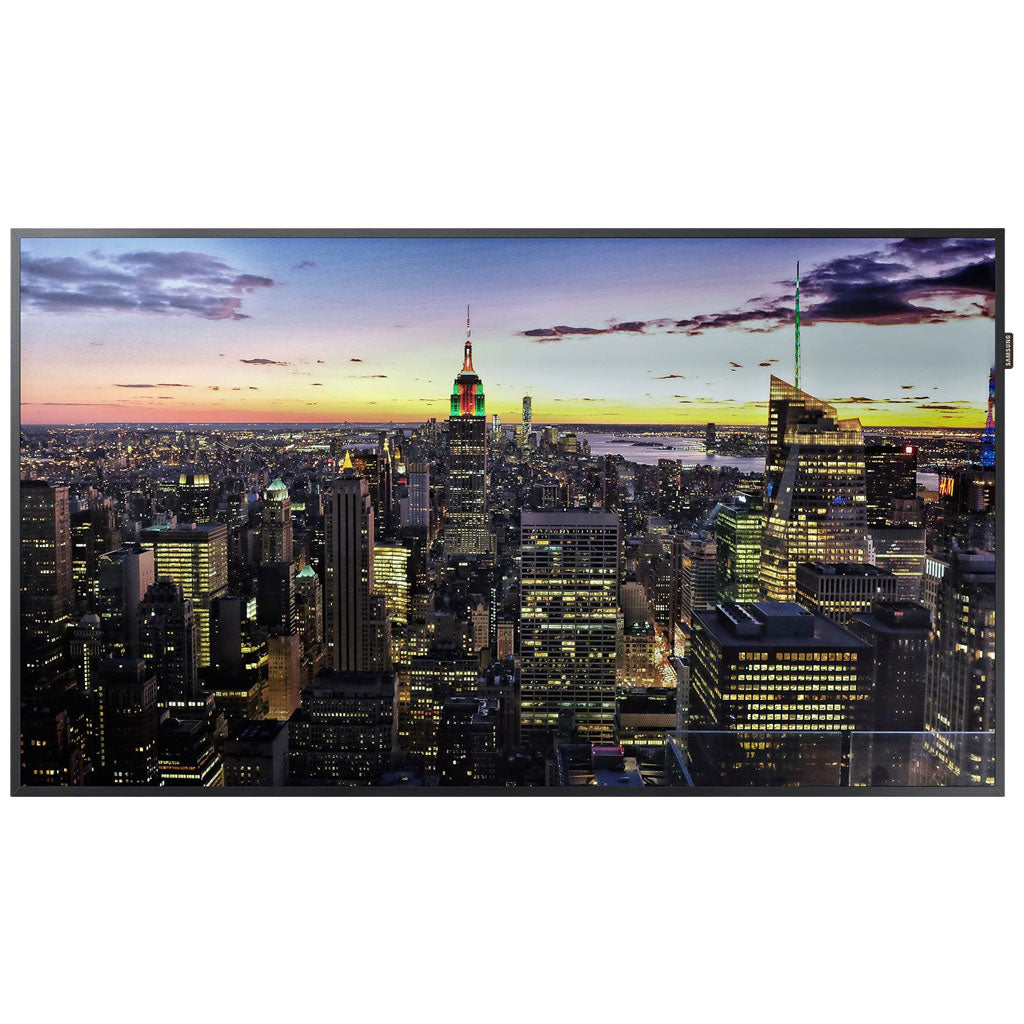

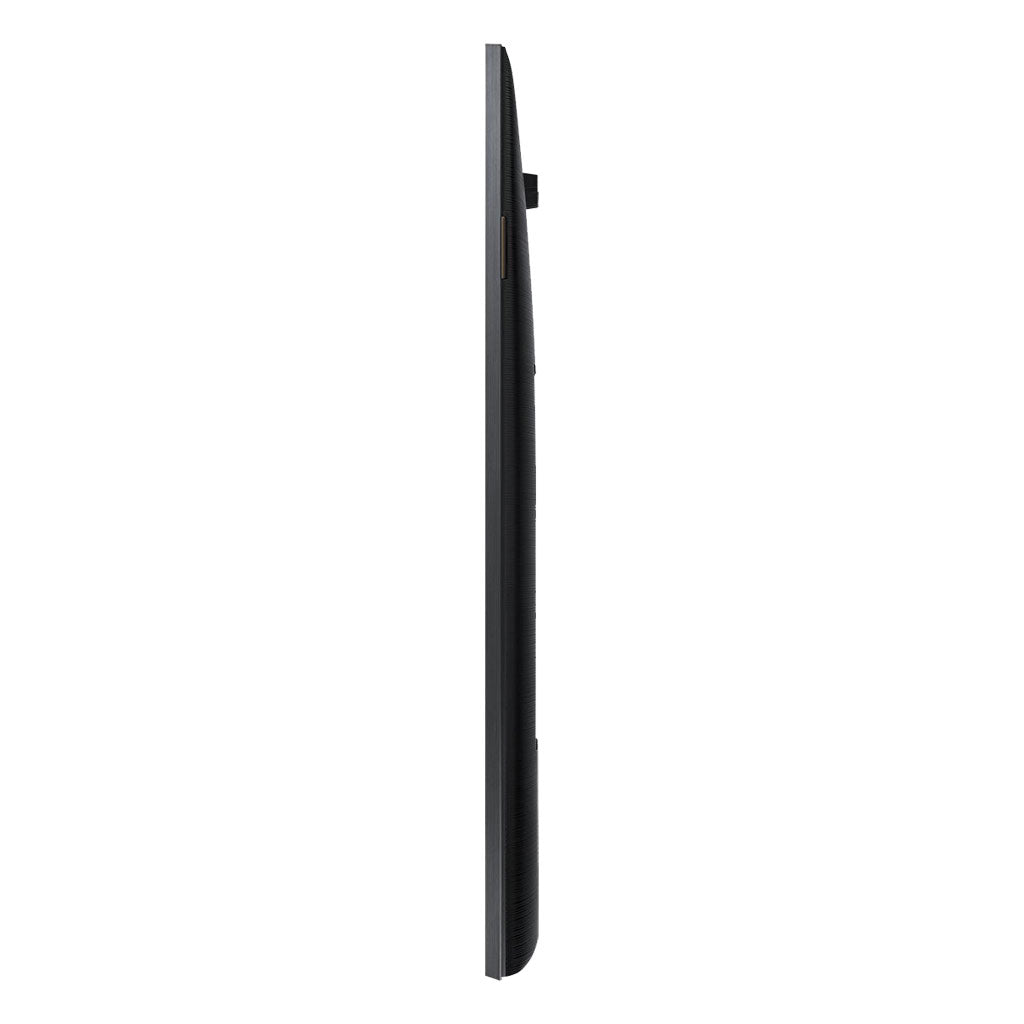

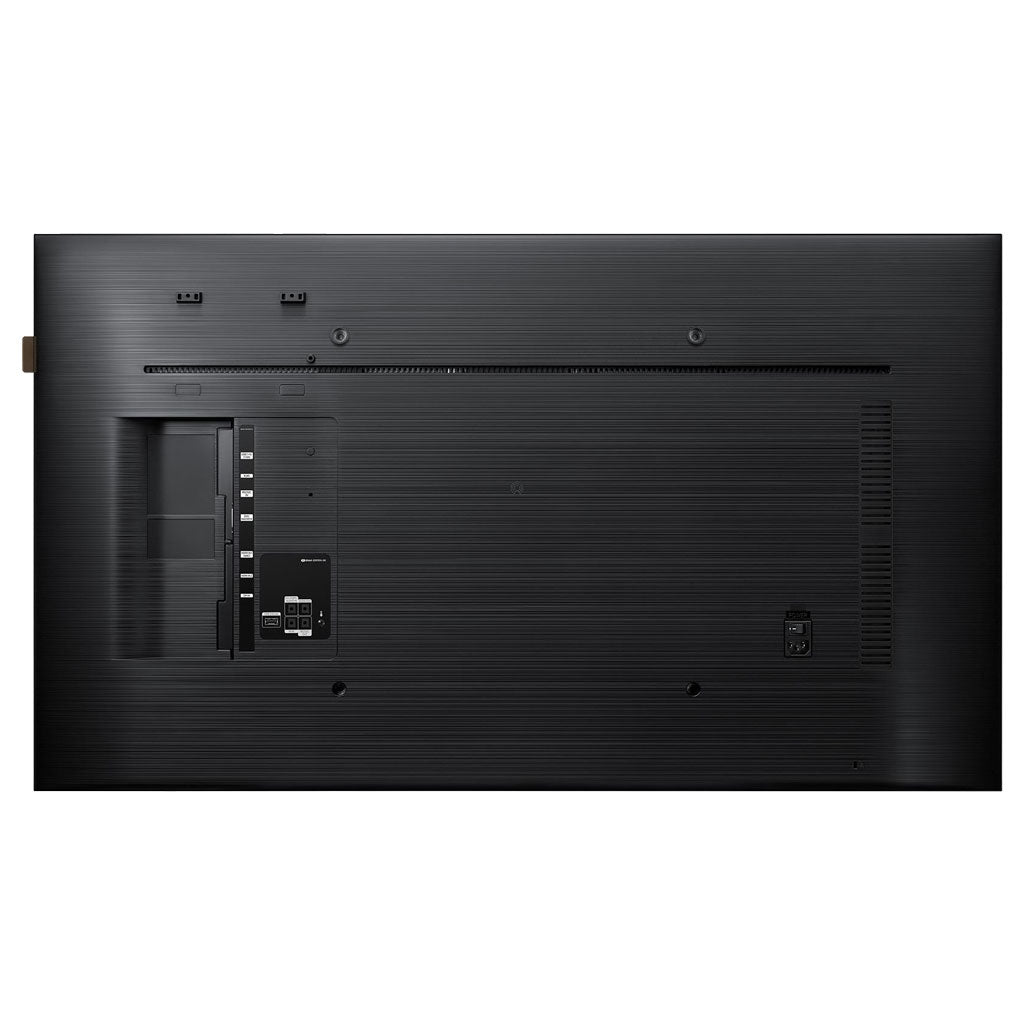

Model - QB65H Professional Display for AVSI & Digital Signage Projects with 4K UHD Resolution

Model - QB65H Professional Display for AVSI & Digital Signage Projects with 4K UHD Resolution

Regular price Rs. 230,000.00
Regular price Sale price Rs. 230,000.00
Sale Sold out
Tax included.
View full details

Model - QB65H
Professional Display for AVSI & Digital Signage Projects with 4K UHD Resolution

Deliver Impactful Content through an All-Inclusive Display
Samsung’s QBH Series displays deliver content with visual impact while also improving operational efficiency. Through UHD picture quality, the displays foster an inviting and memorable viewing environment. Backed by the powerful SSSP 5.0 and TIZEN 3.0 operating system, the displays feature a host of business-ready functionalities while also protecting business data through enhanced security.

Enliven Commercial Content with UHD Picture Quality
Featuring state-of-the-art UHD picture quality, the QBH Series displays empower users to deliver more impactful messaging. Each QBH Series display showcases content with four times the ultra-realistic detail and clarity of standard alternatives, with a wider screen offering more space for imagery. When combined with performance features, such as portrait mode, this next-level presentation makes the QBH Series ideal for any commercial setting.

Enjoy Greater Operational Flexibility with the TIZEN OS
The QBH Series displays are among the first in Samsung’s lineup to feature the upgraded SSSP 5.0, backed by the powerful TIZEN 3.0 operating system. Through this integration, users receive a host of business-critical capabilities, ranging from secure in-platform application development to remote management. Not only do the QBH Series displays feature advanced graphic presentation, but the display also allows users to deliver targeted real-time messaging through the Beacon management technology.

Protect Business and Customer Data through Extensive Security
For government, financial and other information-based businesses, data protection is paramount for efficient operations. Samsung’s QBH Series displays accommodate this need through intense security measures. The embedded TIZEN 3.0 OS offers defense across the application, platform and system layers, restricting file and data access to an exclusive user base.

Enjoy a Consistent, Accelerated Refresh Rate through Versatile Connectivity
An upgrade on more limited alternatives, the QBH Series displays support a range of content and elevate overall display performance through both HDMI 2.0 and DP 1.2 port connectivity. This versatility ensures a consistent 60 Hz. refresh rate and optimal clarity regardless of the source.

Panel
Diagonal Size 65"
Type 60Hz E-LED BLU
Resolution 3840 x 2160 (4K UHD)
Pixel Pitch(mm) 0.105 x 0.315 (mm)
Active Display Area(mm) 1428.48(H) x 803.52(V)
Brightness(Typ.) 300 nit
Contrast Ratio

4000:1

Viewing Angle(H/V) 178/178
Response Time(G-to-G) 8ms (Typ)
Display Colors 16.7M(True Display) 1.07B(Ditherd 10bit)
Color Gamut 72%
Haze 2%
Display
Dynamic C/R Mega
H-Scanning Frequency 30 ~ 81kHZ
V-Scanning Frequency 48 ~ 75HZ
Maximum Pixel Frequency 594MHz
SOUND
Speaker Type Built in Speaker (10W + 10W)
Connectivity - Input
RGB DVI-D, Display Port 1.2 (1
Video HDMI 2.0 (2)
HDCP HDCP 2.2
Audio Stereo mini Jack, DVI, HDMI
USB USB 2.0 x 2
Connectivity - OUTput
RGB N/A
Video N/A
Audio Stereo Mini Jack
Power Out N/A
External Control RS232C(in/out), RJ45
External Sensor IR
Tuner N/A
POWER
Type Internal
Power Supply AC 100 - 240 V~ (+/- 10 %), 50/60 Hz
Consumption (On mode) Max[W/h] : 165
Typical[W/h] : 122
BTU(Max) : N/A
Sleep mode : less than 0.5W
Off mode : less than 0.5W
Operating conditions
Recommended Usage Hours 16/7
Operating Temperature 0.0 ℃  ~   40.0   ℃
Humidity 10.0  %  ~   80.0   %
Internal Player
Processor Coretex A72 1.7GHz Quad-Core CPU
On-Chip Cache Memory L1 Instruction Cache : 48KB L1 Data Cache : 32KB L2 Cache : 2MB
Clock Speed 1.7GHz Quad-Core CPU
Main Memory Interface 3GB 3ch 64bit LPDDR4 1.6GHz
Graphics 2D & 3D Graphic Accelerator Data Format : 32bpp Graphic resolution : 1920x1080 Output resolution : 3840x2160 (Scale up from graphic processing result.)
Storage (FDM) 8GB (3.88GB Occupied by O/S, 4.12GB Available)
Multimedia Video Decoder - MPEG 1/2/4, H.263, H.264/AVC - UHD H.264/AVC, VC-1, AVS/AVS+, MVC - VP8, VP9, HEVC, JPEG Audio DSP(Decoder) - MPEG, AC3, AC4, DD, MP3 and etc
IO Ports USB 2.0
Operating System Tizen 3.0 (VDLinux)
Accessories
Included accessories Quick Setup Guide, Warranty Card, Power Cord, Remote Controller, Batteries
Optional accessories Stand : -
Mount : WMN6575SE
Specialty : CLM450D
Media Player
Media Player SBB
PHYSICAL SPECIFICATION
Bezel width 12.2/12.2/12.2
Set dimensions (W x H x D) 1456.1 x 835.6 x 37.5 mm
Package dimensions (W x H x D) 1574 x 949 x 212 mm
VESA Mount 400 x 400 mm
Set weight 22.8 kg
Package weight 32.4 kg
