Model - UM55H-E
Super Ultra Thin Bezel Video Wall panel with 1.7mm bezel-to-bezel - 500 nits Brightness
Deliver visual impact through a Distraction-Free Display

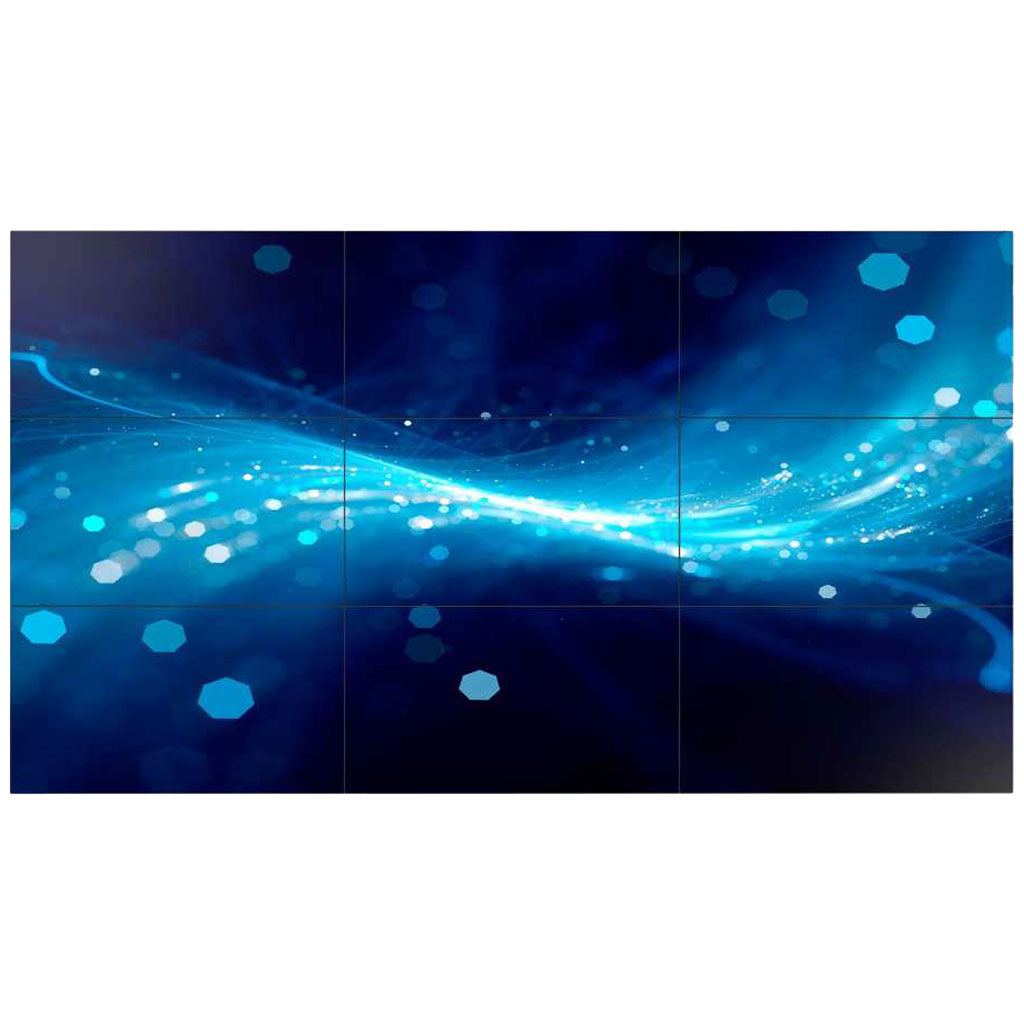

Samsung’s new video wall features an extreme narrow-bezel (1.7mm.) that produces a near-seamless picture across multiple screens without interruption, generating opportunities to captivate customers.
Amplify Image Clarity in any Environment
The displays’ non-glare panel optimizes content presentation even under ambient lighting. This panel evenly distributes light throughout the screen, eliminating glare while maintaining content vibrancy and accuracy.
Extend Content Presentation Capabilities without the Expense
Users can configure the displays into daisy chains as large as 5x5 without requiring expensive external graphic cards or UHD splitters. Samsung’s displays instead use Display Port (DP) 1.2 and HDMI ports to support advanced video interfaces and elevate content with resolution as high as 4K.
Share Accurate and Uniform Promotional Content
Thanks to rigorous pre-distribution calibration, the video wall users can enjoy uniform brightness and color right. This proactive calibration process increases the display’s contrast ratio while minimizing the impact of screen darkening and light leakage, producing compelling content at nearly 90 percent local uniformity accuracy.
Enjoy Continuous, Uninterrupted Performance
Samsung’s extreme narrow bezel video walls are engineered for long-term performance, eliminating maintenance expenses for users. The display features durable panels that offset backlight discrepancies while simultaneously protecting the display against heat and dust exposure.
Vivid and Reliable Content Delivery for business
Designed to maintain performance in varying indoor environment conditions, Samsung UMH-E video wall produces an engaging viewing experience. The video wall’s elevated contrast ratios (46-inch: 3500:1 and 55-inch: 4000:1) and brightness of 500 nit produce superior picture quality and a vivid color presentation.
All-in-One Box delivers cost-efficient, yet robust usability
Backed by a powerful Quad Core CPU, the Signage Player Box effectively allows for multi-source switching and a media player to co-exist in a single box. Built to leverage the power of the embedded Samsung SMART Signage Platform (SSSP), the versatile box transforms standard video walls using its Quad Core CPU for faster information processing and easy-to-use content management performance with MagicInfo solution.
Highly configurable Wall Mounts adaptive to your desired layout
Special Wall Mounts ensure easy installation of video walls through minimal use of installation steps. The wall mount takes up minimal space and is sized to the dimensions of the video wall, where users can install the mount first and fit into the video wall. This user-friendly design eliminates the tedious efforts required to measure and adjust the wall mount, allowing you to conceive ideal layouts through effortless alignment between the wall mount size and video display size.
|Resolution||1920*1080 (Full HD)|
|Pixel Pitch(mm)||0.63mm(H) * 0.63mm(V)`|
|Active Display Area(mm)||1209.6 * 680.4mm|
|Display Colors||8 bit - 16.7M|
|Haze||25% (Outer Haze 23%)|
|Dynamic C/R||MEGA DCR|
|H-Scanning Frequency||30kHz ~ 81kHz|
|V-Scanning Frequency||48Hz ~ 75Hz|
|Maximum Pixel Frequency||148.5MHz|
|Connectivity - Input|
|RGB||Analog D-SUB, DVI-D, Display Port 1.2|
|Video||HDMI 2.0 (2)|
|Audio||Stereo mini Jack|
|USB||Only F/W upgrade|
|Connectivity - OUTput|
|Audio||Stereo mini Jack|
|External Control||RS232C(in/out), RJ45|
|External Sensor||Detachable type(IR, Ambient)|
|Power Supply||AC 100 - 240 V~ (+/- 10 %), 50/60 Hz|
|Consumption (On mode)||
Max[W/h] : 297
Typical[W/h] : 180
BTU(Max) : 1013
Sleep mode : less than 0.5W
Off mode : less than 0.5W
|Recommended Usage Hours||24/7|
|Operating Temperature||0.0 ℃ ~ 40.0 ℃|
|Humidity||10.0 % ~ 80.0 %|
|On-Chip Cache Memory||N/A|
|Main Memory Interface||N/A|
|Included accessories||Quick Setup Guide, Warranty Card, DP cable, stereo to DB9 cable, Power Cord, Remote Controller, Batteries|
Stand : N/A
Mount : WMN-55VD
Specialty : N/A
|Media Player||SBB(Slide In), Signage player box|
|Bezel width||1.15mm(U/L), 0.55mm(R/B)|
|Set dimensions (W x H x D)||1211.6 X 682.4 X 96.3 mm|
|Package dimensions (W x H x D)||1355 x 809 x 320 mm|
|VESA Mount||600 x 400 (mm)|
|Set weight||21.0 kg|
|Package weight||28.2 kg|
