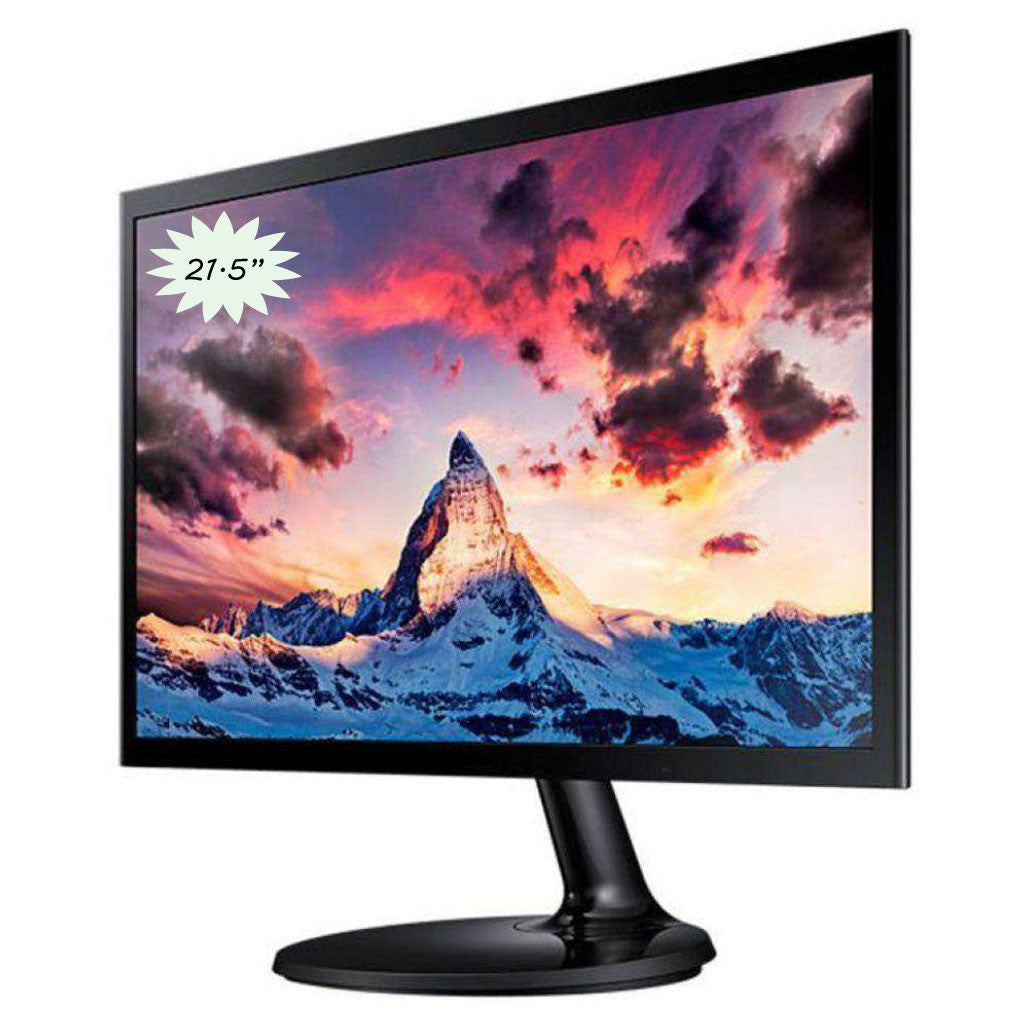

SAMSUNG S22F350 21.5" Monitor with IR 6 touch monitor
Infrared touch screen technology
Infrared touch screen is to use a dense matrix of infra-red x, y directions to detect and locate the user's touch. Infrared touch screen installed in front of the monitor box outside a circuit board, circuit board arranged on four sides of the screen infrared led and an infrared receiver and corresponding anyway cross the infrared matrix.
When users touch the screen, fingers will be blocked anyway after the location for both infrared and therefore can judge the position of the touch points on the screen .it can detect essentially any input including a finger, gloved finger, stylus or pen.
21.5 inch Infrared touch screen
- 6 multi touch point
- 4096x4096 Resolution, USB or RS232 Interface
- Withstands severe environments
- Stable, no-drift calibration performance
- Material is tempered glass with high light transmittance
- Finger, gloved hand and touch pen activation
- Operable in various light conditions, indoor and outdoor
- Our products have passed CE, FCC, ROHS certification!
We convert Samsung Led monitor into touch screen
Monitor's Techincal Details
| Model No | S22F350 |
| Screen Size (Inch) | 21.5 |
| Flat / Curved | Flat |
| Panel Type | TN |
| Peak Luminance Ratio | 98% |
| Resolution | 1920 x 1080 |
| Colour Support | 16.7M |
| Samsung MagicAngle | Yes |
| Eco Saving Plus | Yes |
| Game Mode | Yes |
| HDMI | 1 EA |
| Temperature | 10~40 ℃ |
| Color | Black high Glossy |
| Wall Mount | 75.0 x 75.0 mm |
| Power Supply | AC 100~240V |
| Power Consumption (DPMS) | Less than 0.3 W |
| Type | External Adaptor |
| Set Dimension with Stand (WxHxD) | 508.6 x 395.4 x 206.5 mm |
| Set Weight with Stand | 2.8 kg approx |
| Accessory | Power Cable | Install CD |
| Physical characteristic | Standard color | Black |
| Material | tempered glass | |
| Transparency | ≥92% | |
| USB connector cable | 1500mm | |
| Minimum touch object | ≥5mm | |
| Input method | Finger | gloved hand | opaque object | |
| Resolution | 4096x4096 | |
| Electrical characteristic | Scan frequency | 60Hz |
| Interface type | USB2.0 or RS232 | |
| Output format | Coordinate output | |
| Response time | ＜15ms | |
| Touch accuracy | 2mm | |
| Working voltage | DC +5V+/-5% | |
| Power supply | USB | |
| Operation current | ＜180mA | |
| Environmental suitability | Working temperature | -20℃~65℃ |
| Storage temperature | -40℃~85℃ | |
| Working humidity | 0~85% RH,non-condensing | |
| Storage humidity | 0~95% RH,non-condensing | |
| Light immunity | Anti-glare | |
| Raliability | Touch times | unlimited |
| Flammability | UL94V-0 | |
| Certification | CE | FCC | ROHS | |
| Software characteristic | Windows 2000 / Windows XP / Win 7 / Win 8 / Windows NT / Linux / Mac | |
