The 940J is a Bezel Free AIO touch POS terminals
| Features | Benefits |
| Bezel Free touch panel design | Multi touch |
| Fanless | Mute Process |
| Detachable the hard disk installation | convenient the unification of the operating system installation |
| Optimize arrangement of connecting wire | Reasonable wiring way, can keep tidy desktop |
| Multi-angle Tilting ranging from 0-90 degree with dual – shaft | Better view for the user and good combination to the interface. Available to fold up to save room for transporting. |
| The obverse side waterproof and dustproof IP6/5 | Effectively improve reliability and prevent premature failure. |
| Selectable and upgrade able Ports | Retailers can use existing devices and add new devices to meeting changing business needs |
| Panel | |
| Model name | TPC-940J |
| Type | 15" All In One Touch POS terminal |
| Color | Black |
| Material | ABS |
| Optional items | Customer Display: VFD Wireless BT Windows OS(7/up) SSD (32G,64G,128G) RAM(2G/4G/8G) |
| Motherboard part | |
| Main Board | ITX-J1900 |
| CPU | Intel® Celeron® Processor J1900 | (2M Cache, up to 2.42 GHz) |
| BIOS | AMI BIOS |
| RAM Support | DDR3L 1333 4GB |
| Storage | SSD 64G |
| OS support | Windows 7/8 or up,Linux, Android |
| Network Support | Realtek 8111E Gigabit Ethernet |
| Audio | Realtek ALC662 HD |
| Main display part | |
| LCD Size | 15" LED-LCD |
| View Angle | Left / Right ＋80°~－80° | Up / Down ＋70°~－70° |
| Brightness | 450cd /㎡ |
| Resolution | XGA 1024 x 768 @ 60Hz |
| Touch Screen | |
| Type | Capacitive touch screen bezel free |
| Touch interface | USB |
| I/O port | |

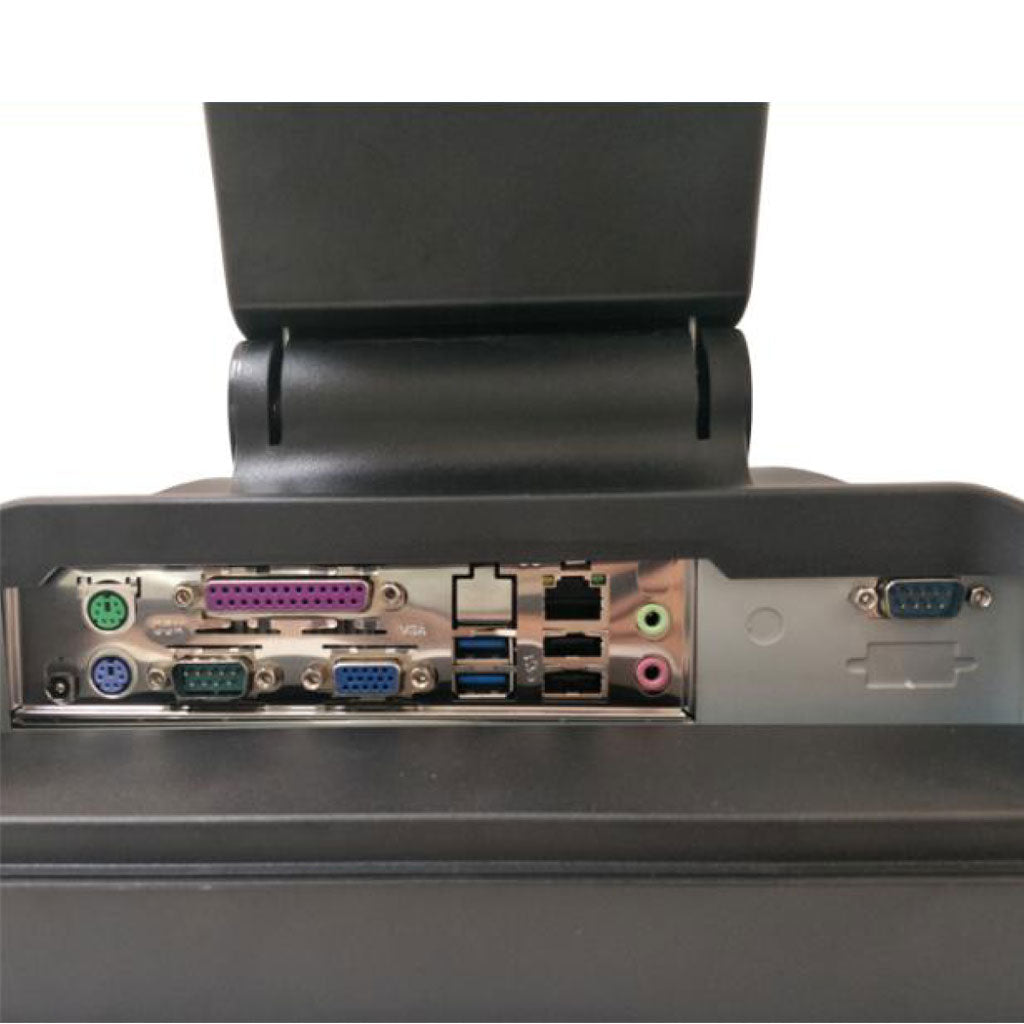

| I/O part | 1 x DC IN 1 x LPT 1 x VGA(DB15) 1 x PS/2 MS 1 x PS/2 KB 1 x POWER BUTTON 2 x COM(DB9) 5 x USB2.0 1 x LAN 1 x USB3.0 1 x LINE 1 x MIC 1 x HDD LED 1 x Power LED |
| Temperature / Power | |
| Operating Temperature | 0 ℃ to 40 ℃ |
| Storage Temperature | 0 ℃ to 40 ℃ |
| Storage Temperature | -20 ℃ to 60 ℃ |
| Power Consumption | 35W （MAX） |
| Dimensions & Weight | |
| Packing dimension | 450 x 245 x 400mm (MM) |
| Weight | NW:7.1 KG | GW: 8.0 KG |
| Warranty | |
| Warranty | 1 Years |
