| Model No. |
4 LAN BOX |
| Processor |
Intel Pentium N3700 1.60GHz 2.4GHz |
| Cores/Threads |
4 Cores / 4 Threads |
| Architecture |
Braswell |
| Memory |
DDR3L SO-DIMM Socket max support 8GB |
| Storage |
1 x Mini-PCIE for mSATA |
| Audio Card |
HD Audio realtek ALC 662 |
| Graphics |
Intel HD Graphics |
| Network |
Intel i225V 2.5Ghz |
| Extendable |
WiFi + Bluetooth (MINI PCIE) or 3G/4G Module(MINI PCIE) |
| OS Support |
Linux & Firewal OS |
| LAN |
4 x Intel 1211-AT-10 / 100 / 1000 Controller |
| I/O |

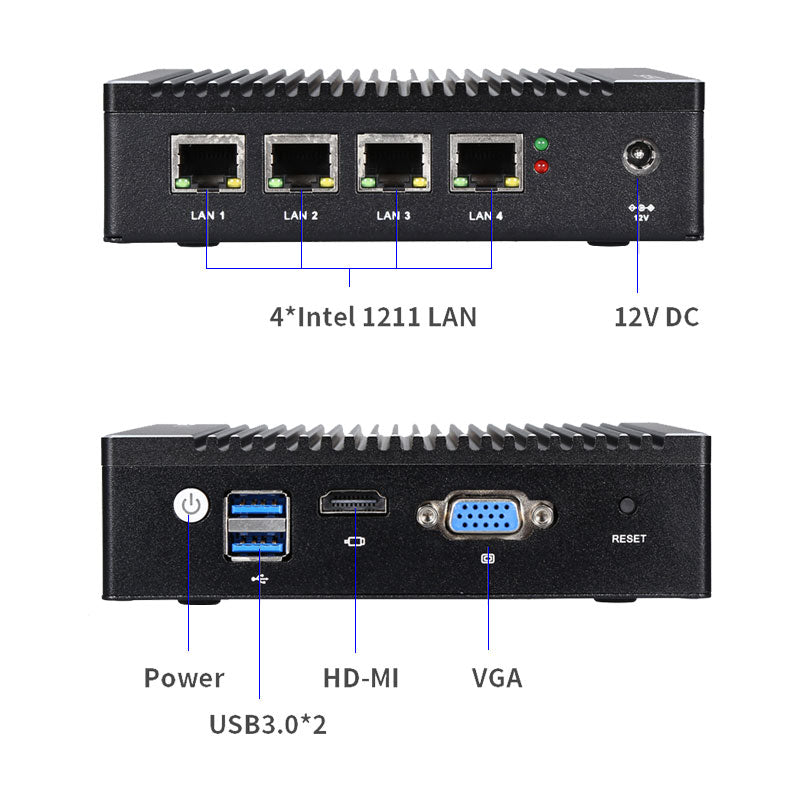

2 x USB3.0 | 1 x VGA | 1 x HDMI | 4 x RJ45 | 1 x DC |
| Display Mode |
4K / Support Dual display (Duplicate mode, Extend mode) |
| Max Resolution |
VGA : 1920 x 1080@60Hz | HDMI 1.4 : 3840 x 2160@30Hz |
| Working Environment |
Temperature：-10~60 ℃ | Relative Humidity：0~95%(NoCondensation) |
| Storage Environment |
Temperature：-10~60 ℃ Relative Humidity：0~95%(NoCondensation) |
| Power |
DC 12V - 5A |
| Dimension |
133.8 x 126 x 36.5 mm (L x H x W) |
| Package Dimension |
635 x 482.6 x 152.4 mm (L x H x W) |
| Weight |
Net : 0.6 kg | Gross: 1.5 kg |
| Package Contents |
1 x Mini PC | 1 x Power Adapter | 1 x User Manual | 1 x Screws |
| Architecture |
Braswell |
| GST |
18% All inclusive |
| Courier |
All inclusive by Surface Delivery |
| Qty Price |
Call us 9664480007 |
| Warranty |
1 Year Carry in Warranty (Onsite Optional)
No Warranty for burn and damage |
| Note |
Heat Dissipation Fanless Passive Cooling |
