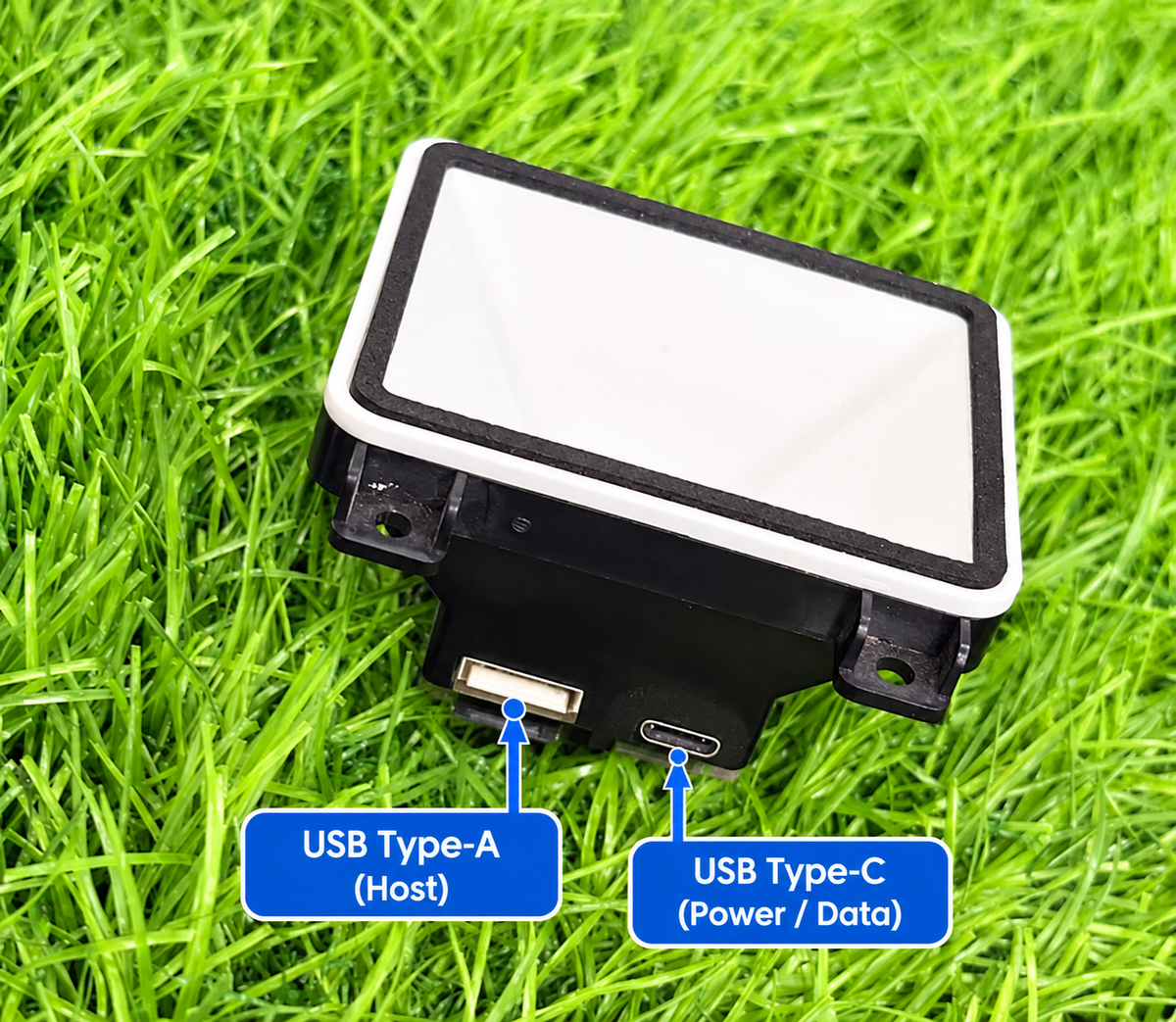

2D Barcode Scanner Engine
| Model No. | 2D Barcode |
| Light Source | Light LED |
| Sensor | 640 x 480 |
| Resolution | 5mil/0.125mm (1D barcode) 10mil/0.25mm (2D barcode) |
| Scan Angle | Horizontal 68°, Vertical 50° |
| Pitch Angle |
±60° |
| Skew Angle |
±60° |
| Roll Angle | 360° |
| Print Contrast | 25% |
| Typical D.O.F* (@ 800 Lux) |
13Mil EAN13: 8~ 181 mm 15Mil Code128: 5~ 143 mm 15Mil QR Code: 2~119 mm |
| Dimension | W61.5 x L65 x H37 mm |
| Weight | 30g |
| Color | Black |
| Material | Plastic |
| Connector |
Micro USB Port 12pin ZIF Connector (pitch = 0.5mm) 9pin Wafer Connector (pitch = 1.0mm) |
| Indicator | Buzzer |
| Operation Voltage |
3.3 VDC ± 5%, 5V (USB) |
| Working Current |
< 125mA |
| Connectivity | USB HID, USB VCP, UART |
| Operating Temperature |
-20~60°C |
| Storage Temperature |
-40~70°C |
| Humidity | 5% ~ 95%RH (Non-condensing) |
| Drop Durability |
1.2 M |
| Ambient Light |
15,000 Lux (Fluorescent Light) |
| 1D Symbologies |
UPC-A/UPC-E0/UPC-E1, EAN-8/ EAN-13, Code 128, Code39, Code93, Codabar, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Standard 2 of 5, China Post 25, Code11, MSI Plessey, Plessey, GS1 Databar, GS1 Databar Limited, GS1 Databar Expanded |
| 2D Symbologies |
QR Code, Micro QR Code, PDF417, MicroPDF417, Data Matrix, Aztec, MaxiCode, Han Xin, Code16K |
| ESD | Functional after 4KV contact, 8KV Air discharge |
| EMC | FCC Part 15B Class B, CE EN55032/35 |
| Safety Approval |
EN62471 (Exempt Group) |
| Environmental | RoHS 2.0 |
