| Display |
| Model |
TPC32KC |
| Panel Type |
A-siTFT-LCD VA technology |
| Panel size |
32 inch |
| Resolution |
1920(RGB)×1080,FHD |
| Viewing Angle |
89/89/89/89(Typ.)(CR≥10) |
| Display Area |
698.4(H)×392.85(V)(mm) |
| Display Scale |
16：9 |
| Backlight Type |
LED |
| Display luminance |
300cd/m² (Typ.) |
| Frame frequency |
60Hz |
| Support colors |
16.7M，72%NTSC |
| Contrast ratio |
1200:1(Typ.)(transmission) |
| Default color temperature |
6500 |
| Display mode |
AMVA，Constant black display, transmissive |
| Curvature |
Plane |
| Motherboard Configuration - MT6769 |

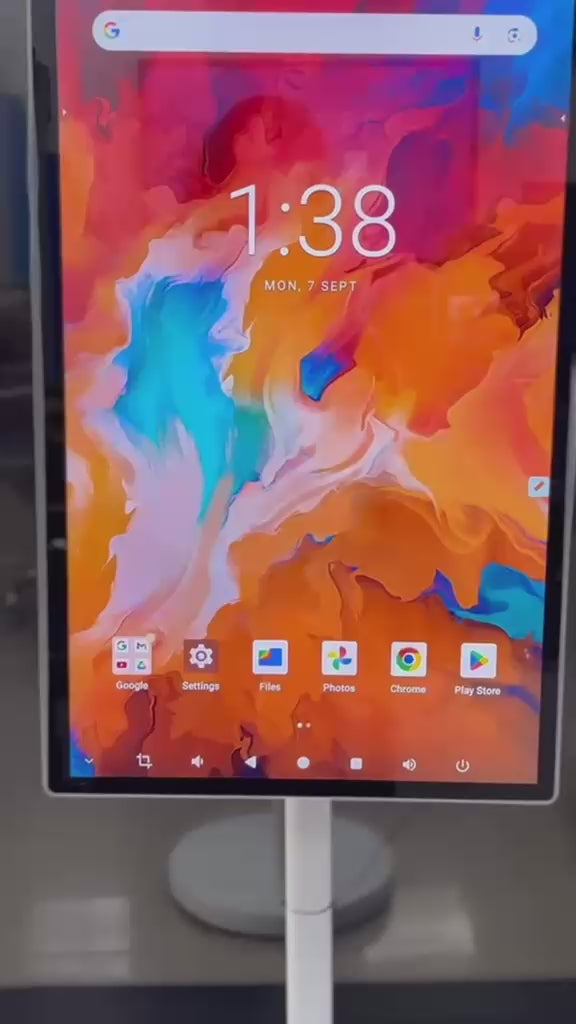

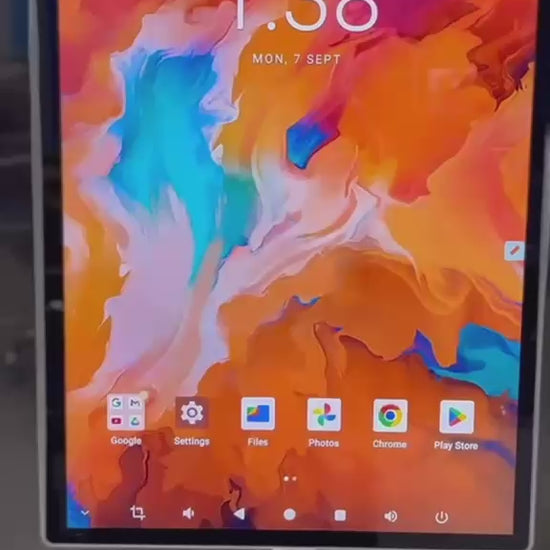

| Operating System |
Android |
| System Version |
Android 13 |
| Operation Mode |
Capacitive touch / Bluetooth remote control |
| CPU |
2*A75 up to 2.0Ghz + 6*A55 up to1.8Ghz |
| GPU |
ARM Mail G52 up to 820Mhz |
| RAM |
DDR 8GB |
| ROM |
EMMC 128GB |
| Network Support |
Wi-Fi 2.4G/5G |
| Bluetooth |
5.0DR/EDR/BLE |

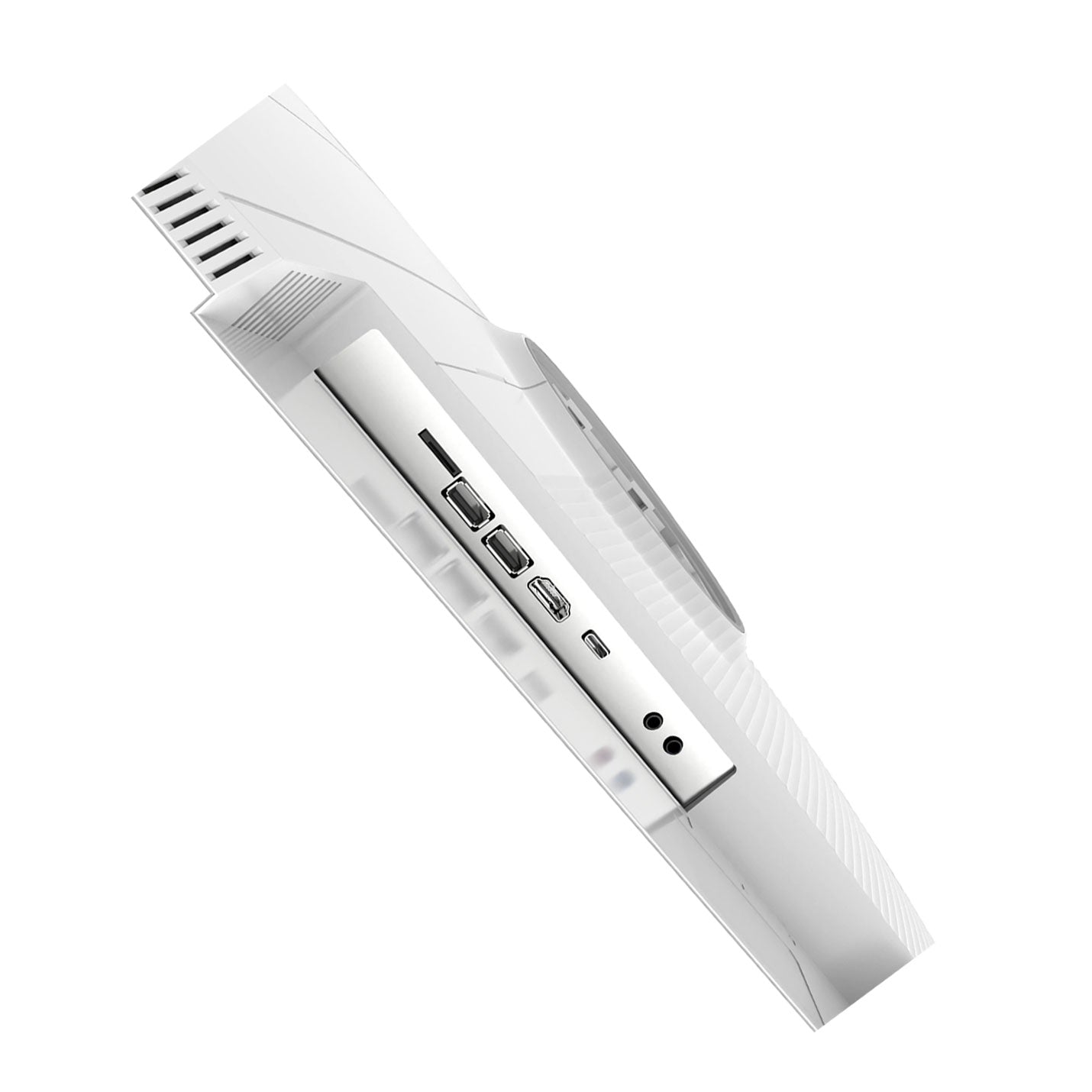

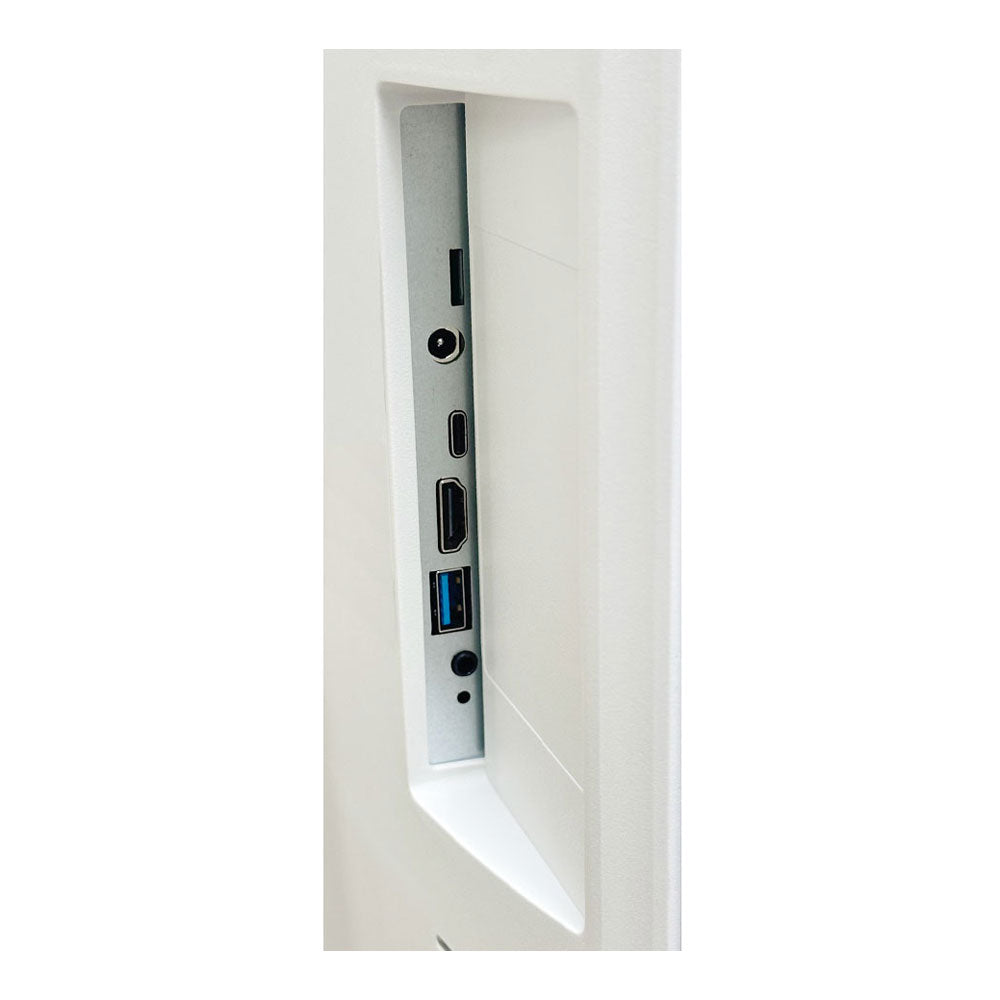

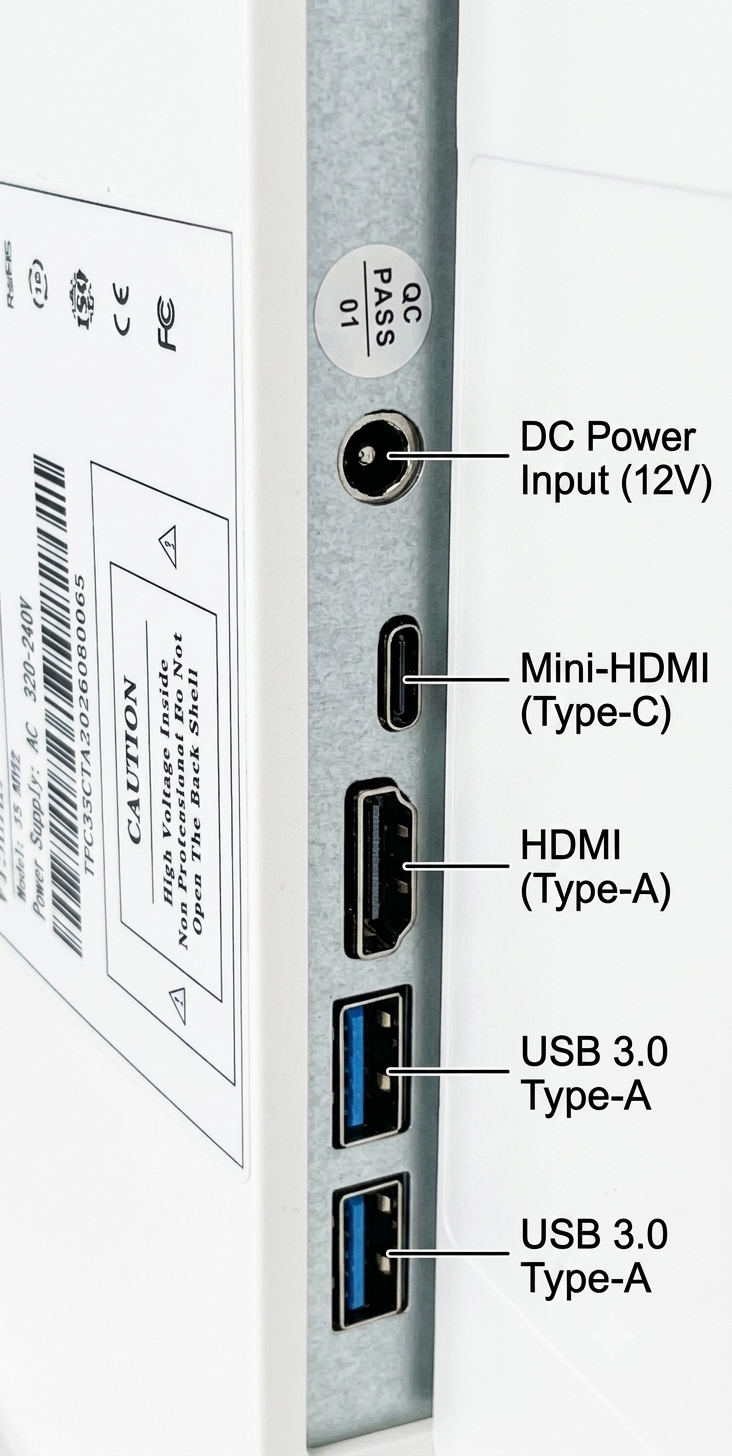

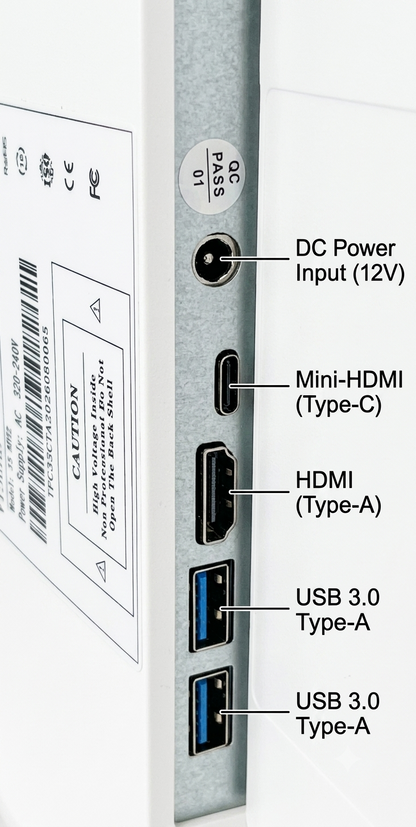

| HDMI |
1 set of HDMI-IN interface |
| USB |
1 USB2.0 HOST TYPE-A interface |
| TYPE-C Interface |
Support USB OTG for device upgrade |
| Touch Parameters |
| Touch technology |
Projection Capacitor Technology |
| Touch scheme |
G+G/OGF |
| Number of channels |
34 ｘ 60 |
| Touch point count |
10 Point Effective Touch |
| Touch media |
Finger or Capacitive Touch Pen |
| Touch Accuracy |
2mm |
| Response Time |
10ms |
| Drive Mode |
Drive free |
| Touch Interface |
USB |
| Surface Treatment of Cover Plate |
AG |
| Surface Hardness |
≥6H |
| Working Voltage |
5V |
| Data output method |
Coordinate output |
| Body Parameters |
| Body color |
White |
| Frame material |
ABS |
| Body material |
ABS+6063（metallizing） |
| Surface material |
AG+tempered glass |
| Camera External |
13MP magnetic camera (optional) |
| Speaker |
4Ω5W*2 |

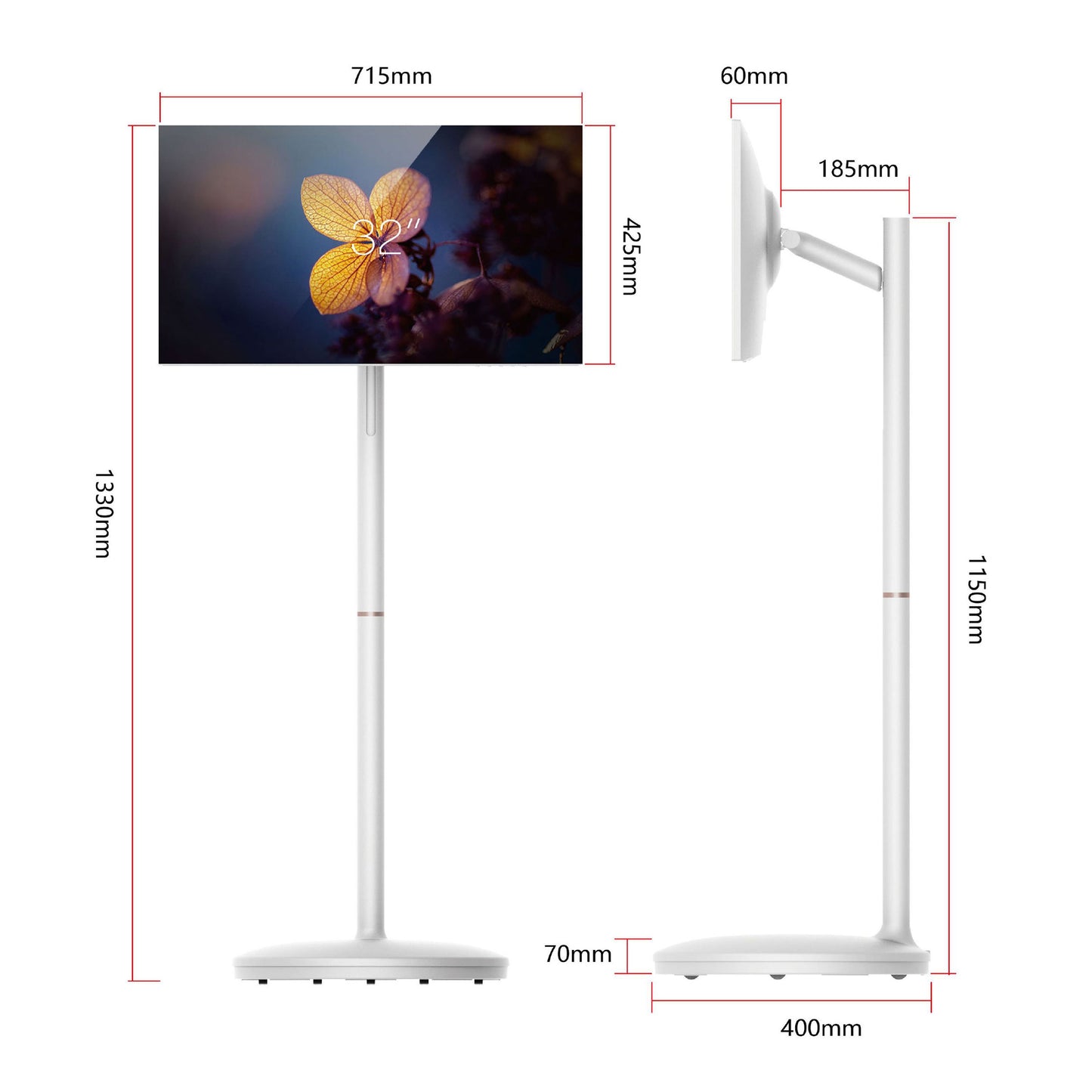

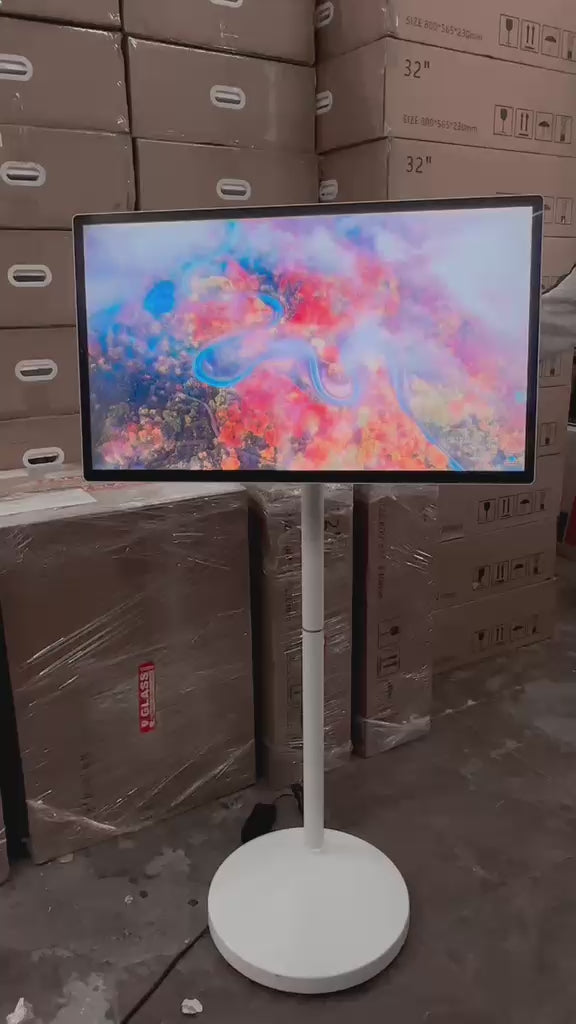

| Body size |
Horizontal screen 1330x715x400mm |
| Monitor size |
715x425x60mm |
| Support rod size |
1150x138x212mm |
| Packing size |
833x533x230mm |
| Net weight/ gross weight |
18KG/20.5KG |
| Usage environment |
Temperature -00C~550C/Humidity 10%RH~90%RH |
| Storage environment |
Temperature -50C~600C/Humidity 10%RH~90%RH |
| Battery Parameters |
| Model |
lithium battery 1160100-3S1P |
| Capacity |
10000mAh |
| Voltage |
11.1V |
| Charging time |
4hours |
| Endurance |
4-5hours |
| Packing List |
| Complete machine |
1 Unit |
| Adapter |
13.5V-6A 100-240V~50/60Hz 2.0A MAX |
| Power line |
1 piece (Chinese/British/European/American optional) |
| Supporting rod fixing screw |
M4x20 hexagon socket combination screw x4 |
| Wrench |
4mm hexagonal screw wrench x1 |
| Installation instruction |
1 serving |
| Other Detail |
| GST TAX |
All inclusive 18% |
| Courier Charges |
All inclusive by Surface Delivery |
| Bulk Qty Price |
Call Us For More Details - +91 9769027852 |
| Warranty |
1 Year Carry in Warranty ( On-Site Optional ) |
