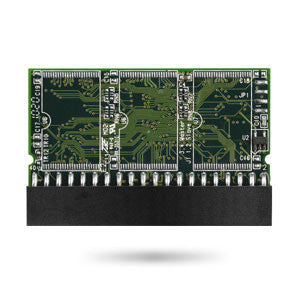

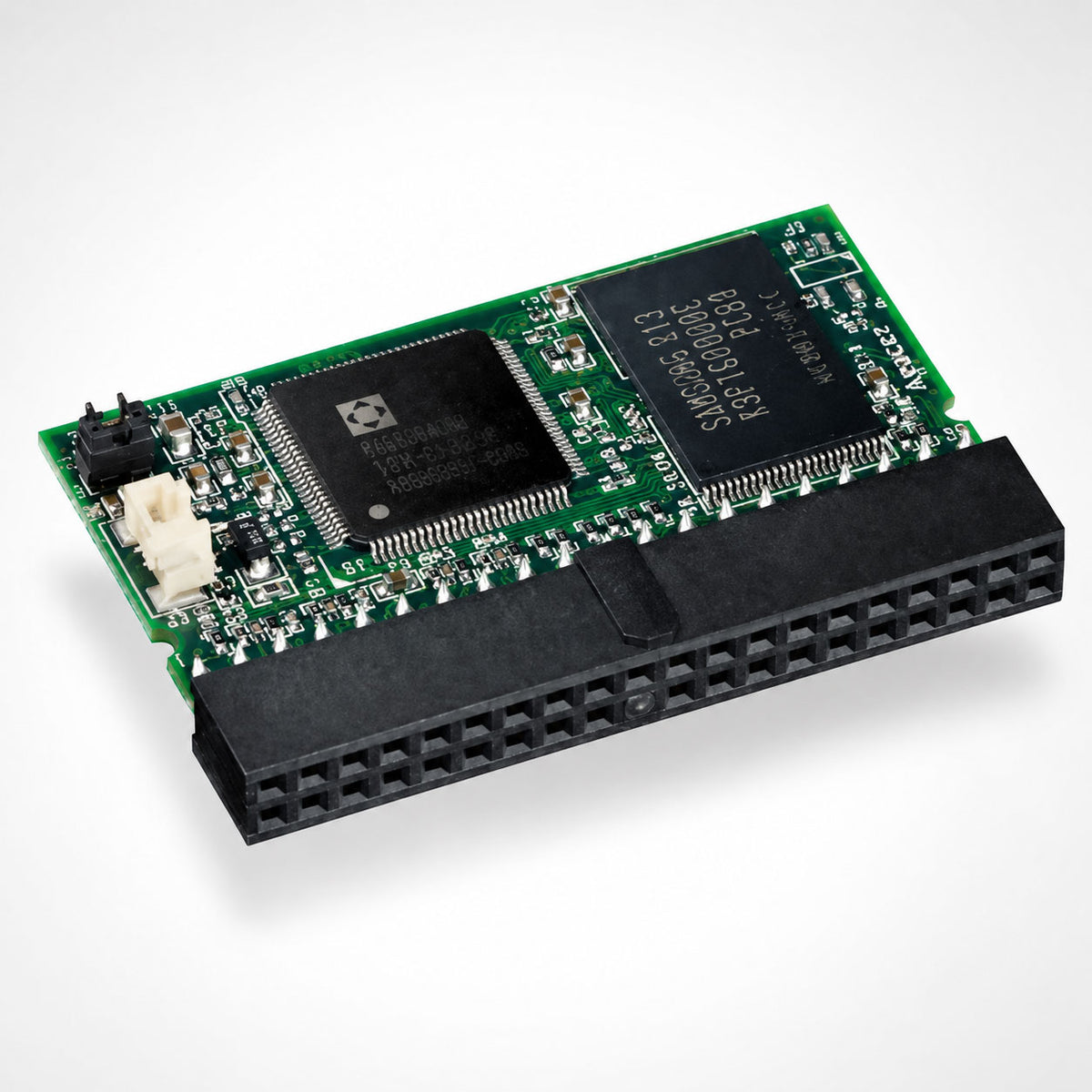

Apacer ATA Disk Module | 1GB 40 PIN IDE

Apacer ATA Disk Module | 1GB 40 PIN IDE

Regular price Rs. 0.00
Regular price Sale price Rs. 0.00
Sale Sold out
Tax included.

View full details

Apacer ATA Disk Module (ADM) 1GB 40 PIN IDE (ATA)


  • Standard 40-pin IDE female connector
  • Housing solution
  • Built-in HW ECC, Quick Erase and SMART Functions
  • Advanced Wear-leveling and Block Management
  • Power Failure Recovery
  • Secured Protection Zone (Optional)
  • Dimensions:50.9(L)x33.4(W)x9(H)mm

Model ADM 40P
Interface Standard ATA / IDE
Connector 40-pin (2.54mm pitch)
Transfer Mode PIO Mode-4 ; MWDMA Mode-2 UDMA Mode-4
NAND Flash Type SLC
Capacity 1GB
Sustained Read Performance(MB/sec) Standard:Up to 20;High Speed:Up to 35
Sustained Write Performance(MB/sec) Up to 10
ECC Support Up to 8 bit correction per 512 bytes (BCH)
Standard Operating Temperature ( °C ) 0 ~ + 70
Extended Operating Temperature ( °C ) -40~+ 85
Storage Temperature ( °C ) -40 ~ + 100
Shock 50G
Vibration 15G
Humidity 5%~95%
Operating Voltage 3.3V / 5V
Low Power Consumption Active mode: 85mA/95mA (3.3V/5V)    |    Sleep mode: 500μA /600μA (3.3V/5V)
MTBF (hours) >2,000,000
Dimension (mm) 50.9(L)x33.4(W)x9(H)
Warranty 1 year Carry In Mumbai Service Center Warranty
No Warranty for burn and damage
