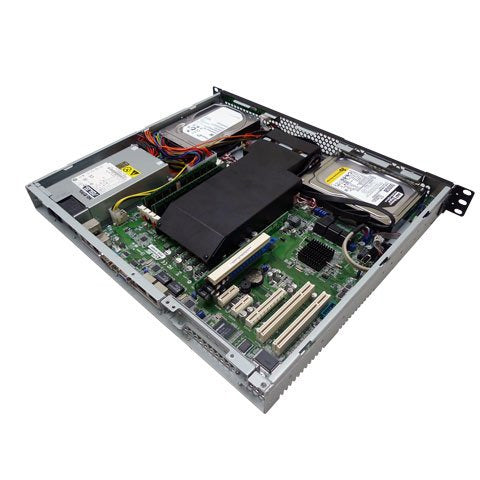

ASUS RS100-X7 1U
| Model | ASUS RS100-X7 1U |
| Processor Support | 1 x Socket LGA1155 | Intel® Xeon® E3-1200 Processor Family | Intel® Core™ i3-2100 Processor Family |
| Core Logic | Intel® C202 Chipset |
| Memory | Total Slots : 4 (2-channel) Capacity : Maximum up to 32GB UDIMM Memory Type : DDR3, , UDIMM, with ECC Memory Size : 1GB, 2GB, 4GB, 8GB UDIMM |
| Expansion Slots | 1 * PCI-E x16 (Gen2 x16 Link) (Full-Height/HL) |
| Storage | 6 x SATA2 3Gb/s ports Intel® Rapid Storage Technology(RST)(For Windows Only) (Support Software RAID 0, 1 ) LSI® MegaRAID (For Linux/Windows) (Support Software RAID 0, 1 ) |
| HDD | 2 * Internal 3.5" HDD |
| Networking | 2 x Intel® 82574L |
| Graphic | Aspeed AST1100 with 64MB VRAM * |
| On Board I/O | 1 x External Serial Port 2 x RJ-45 ports 4 x USB 2.0 ports (Front x 2, Rear x 2) 1 x VGA port 1 x PS/2 keyboard port 1 x PS/2 mouse port |
| OS Support | Windows® Server 2008 R2 Windows® Server 2008 Enterprise 32/64-bit Windows® Server 2003 R2 Enterprise 32/64-bit RedHat® Enterprise Linux AS5.5 32/64-bit RedHat® Enterprise Linux AS6.1 32/64-bit SuSE® Linux Enterprise Server 10 32/64-bit |
| Safety | Europe (CE, EN55022 compliance to EU Directive 89/366/EEC) |
| EMI | US (FCC, CFR47 Part 15, Class A) Europe (CE, EN55022 & EN55024) Australia (C-TICK) |
| Dimensions | 380mm * 430mm * 43.4mm |
| Weight | 6.5Kg |
| Power Supply | 250W 80PLUS (Bronze Level) Single Power Supply |
| Environment | Operation temperature: 10℃ ~ 35℃ / Non operation temperature: -40℃ ~ 70℃ Non operation humidity: 20% ~ 90% ( Non condensing) |
| Accessory Box | 1 x RS100-X7 User's Guide (15060-01X00000) 1 x Bag of Screws 1 x AC Power Cable 1 x RS100-X7 Support DVD (15091-06600300) |
| MB | ASUS P8B-X/MR Server board (60SB0080-MB0B04) |
| Front Panel Board | 1 x Front I/O Board (FPB-R9) (60SC0080-SC0B01) |
| USB Board | 1 x USB Board (USB-R9) (60SC0090-SC0A03) |
| Riser Card | 1 x PCI-E Riser Card (PCIE16-R11 ) (60SC00A0-SC0B01) |
| CPU Heatsink/ Cooler | 1 x CPU Heatsink (13070-00220000) |
| Power Supply Unit | 1 x 250W Single Power Supply (0A100-00010100) |
| Fan | 2 x System Fans (40mm x 28mm) (13G074108060) |
| Air Duct/Mylar | 1 x Air Duct (13GS2600M070-1) |
| Mounting Rails | 1 x Ball-bearing rail kit (13GS0T00M601-1) |
| Cable | 1 x FPB CABLE 16P/20P*2 ,L=500mm (14G507003701) 1 x SATA CABLE 180 TO 270;L=270mm (14G000112550) 1 x SATA CABLE 180 TO 270;L=680mm (14G000112540) 1 x W.H CABLE HSG*10P K10,L=250mm (14G507003400) |
| Upload Date | Title | Download |
| 10-01-2021 | OEM ASUS RS100-X7 1U |  |
- Warranty 1 year
- All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
- PCB color and bundled software versions are subject to change without notice.
- Brand and product names mentioned are trademarks of their respective companies.
