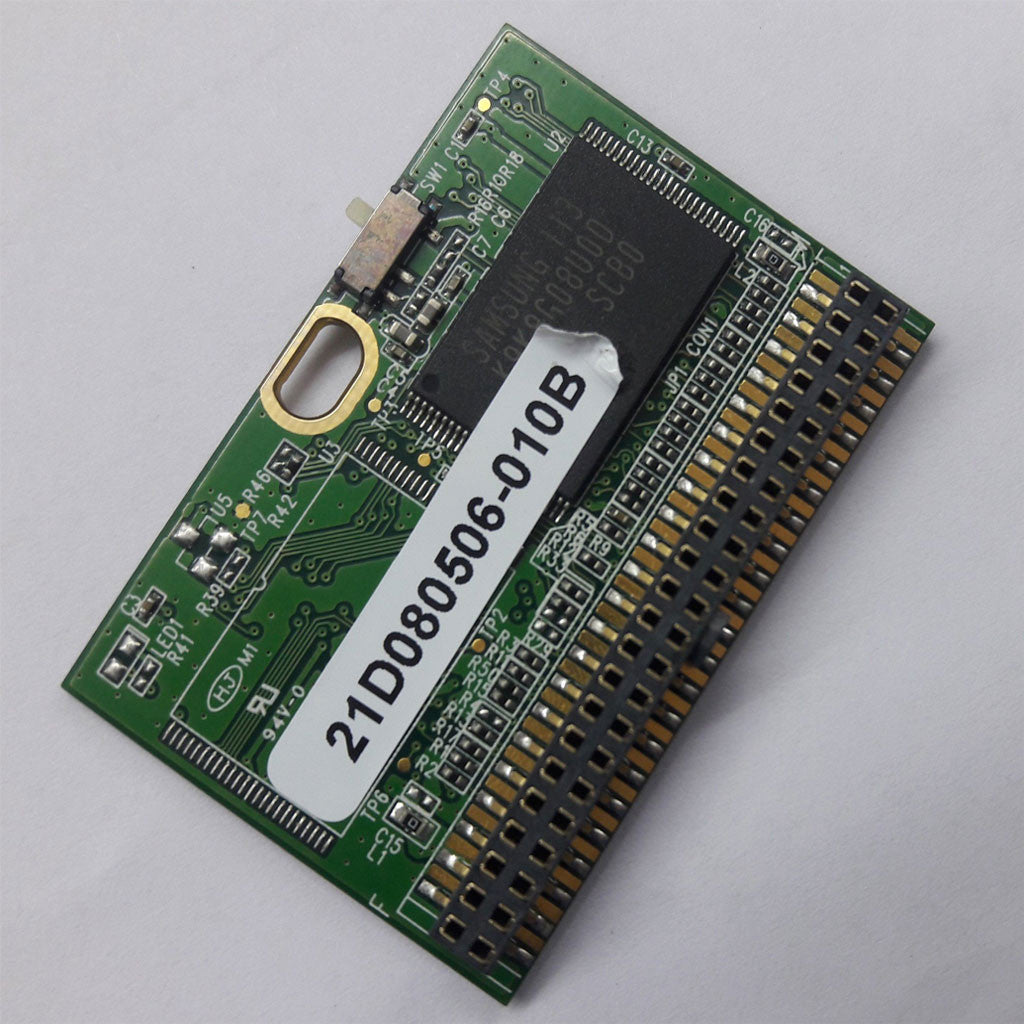

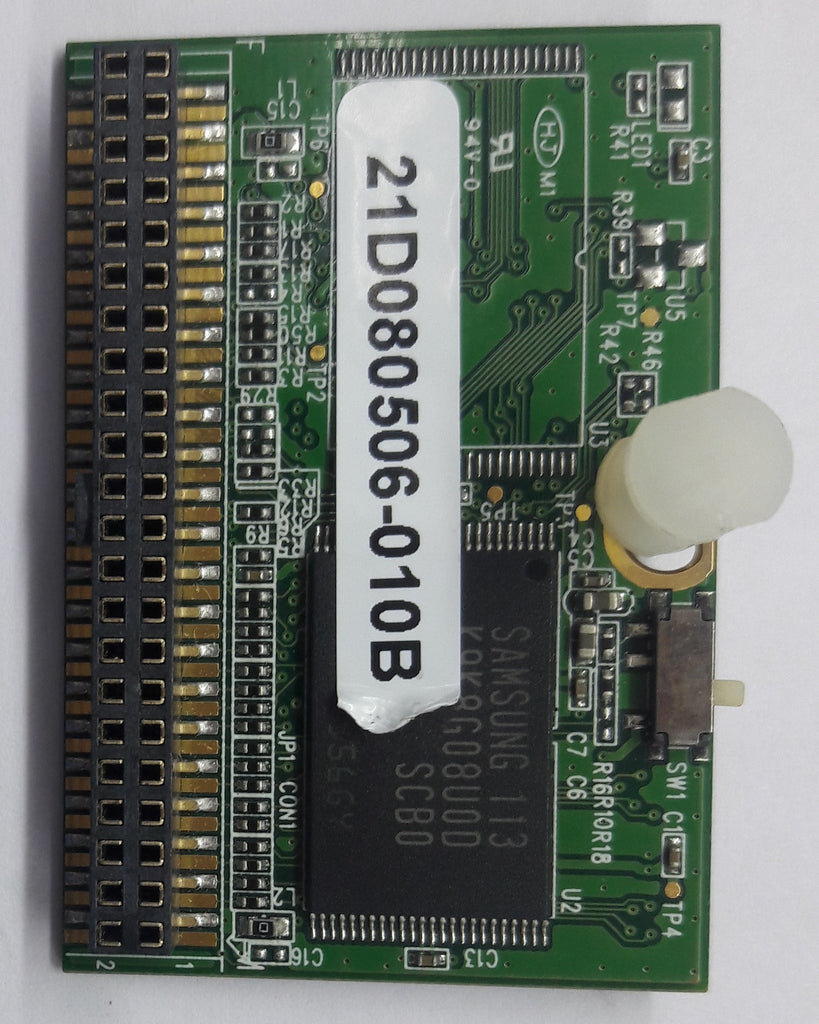

Innodisk EDC 4000 Horizontal - Industrial 44 pin IDE SLC SSD
2GB , up to 40MB/s Read, up to 28MB/s Write
Introduction
Innodisk’s horizontal EDC 4000 fits into any platform with an IDE connector and provides a simple, fast path upgrade. Designed for industrial embedded applications that require a speedy booting process, the EDC 4000 upgrades the working environment efficiently and enhances data transfer rates with read and write performances of up to 40MB and 20MB per second respectively. The horizontal EDC 4000 comes in 1GB and is available in 44-pin horizontal connector packages.
|
Key Features
|
|
Storage Specification |
|
| Model Info | EDC 4000 Horizontal |
| Flash Type | SLC |
| Connector | 44 pin (2mm pitch) female or male connector |
| Capacity | 2GB |
| Channels | 2 |
| Performance | Sequential R/W (MB/sec, max.): 40 / 28 |
| H/W Write Protect | Yes |
| ATA Security | Yes |
| SMART | Yes |
| Data Security | Not supported |
General |
|
| Electrical | +3.3V or +5V DC ± 5% | Read: 125 mA | Write: 120 mA | Idle: 1.3 mA |
| Mechanical | 44 pin: 48 x 32.6 x H mm | (H: A=7, B=7.2, C=10, D=9.9, E=12.9, F=12.9) | H refers to the connector - refer to the datasheet for pictures |
| Temperature | Operating: Standard Grade: 0C to +70C | Operating: Industrial Grade: -40C to +85C | Storage: -55 to +95°C |
| Vibration | 20G@7~2000Hz |
| Shock | 1500G@0.5ms |
| MTBF | >3 million hours |
