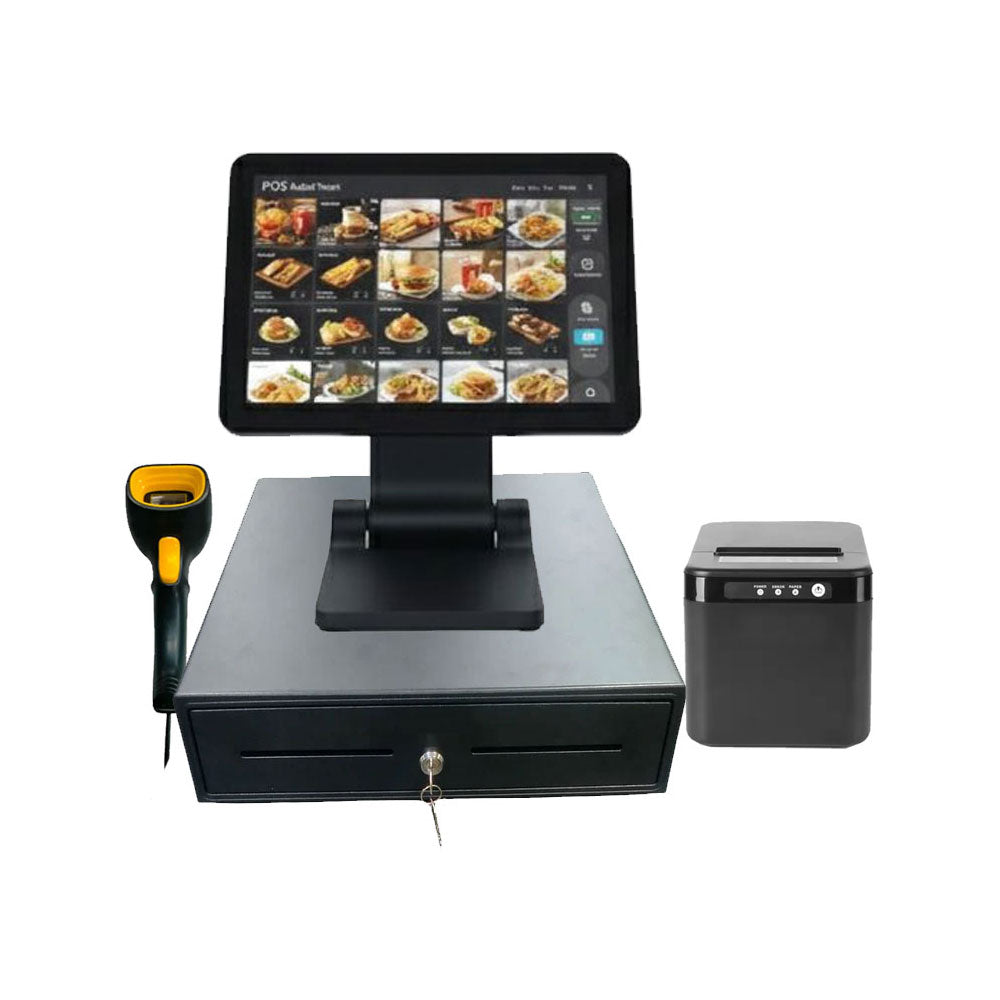

POS Terminal Fullset
POS Machine | Receipt Printer | Barcode Scanner | Cash Drawer
The point of sale (POS) is the time and place where a retail transaction is completed. It is the point at which a customer makes a payment to the merchant in exchange for goods or after provision of a service. At the point of sale, the merchant would prepare an invoice for the customer (which may be a cash register printout) or otherwise calculate the amount owed by the customer and provide options for the customer to make payment. After receiving payment, the merchant will also normally issue a receipt for the transaction. Usually the receipt is printed, but it is increasingly being dispensed electronically.
The POS in various retail situations would use customised hardware and software tailored to their particular requirements. Retailers may utilise weighing scales, scanners, electronic and manual cash registers, EFTPOS terminals, touch screens and a variety of other hardware and software available. For example, a grocery or candy store may use a scale at the point of sale, while a bar and restaurant may use software to customise the item or service sold when a customer has a meal or drink request.
| Model No | TPC-156i5 |
| CPU | Intel Core i5-4250U Processor 1.90GHz |
| Memory | 8GB RAM |
| Storage | 128 GB mSata SSD (Expandable upto 1 TB) |
| Operating system support | Windows / Linux |

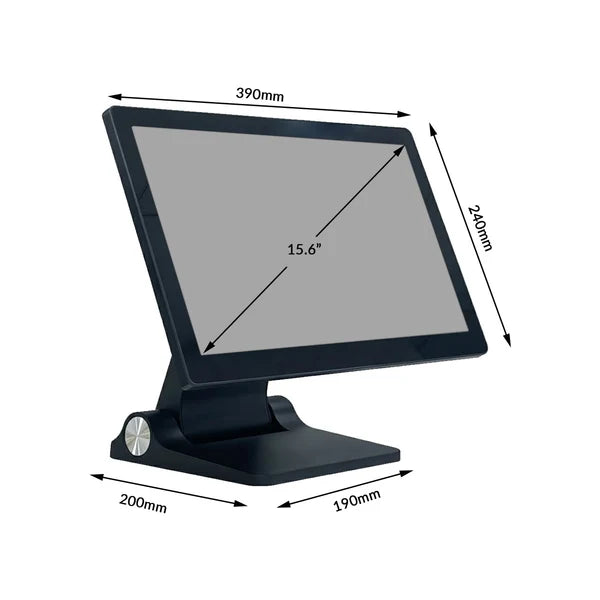

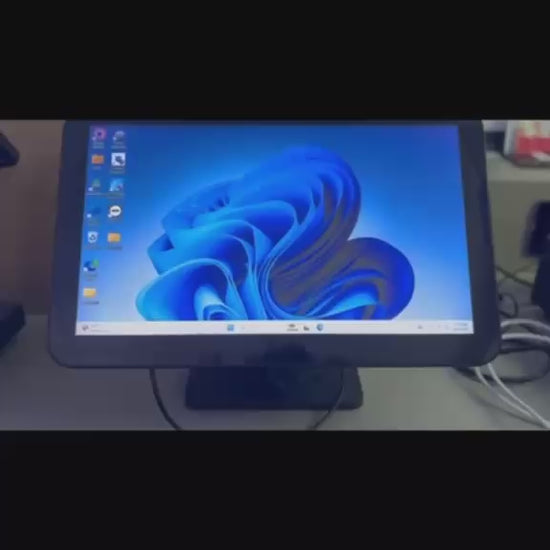

| LED Panel | 15.6"LED with Capacitive 10 Touch Optional 2nd Display : 11.5” |
| Resolution | 1366 x 768 |
| POS Color | Black |
| Touch Panel | Capacitive 10 Multi-Points Touch Panel |

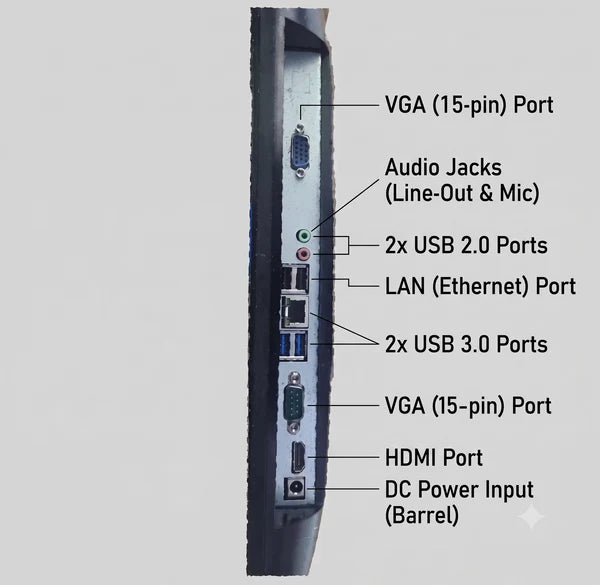

| Interface | 4 x USB 1 x HDMI 1 x LAN 1 x VGA 1 x Serial Port 1 x Audio Jack |
| Speaker | Built in Speaker |
| Power Adaptor | 12V 5AMP |
| Product Dimension | 380 x 200 x 340(mm) (W x D x H) |
| Weight | 3.46 KG |
| Packing dimension | 460 x 420 x 185(mm) (W x D x H) |
| Weight | 5.00KG |
| GST Tax | All inclusive |
| Courier charges | All inclusive |
| Qty price | Call us for more details - +91 9769027852 |
| Warranty | 1 Year carry in warranty (3 Years Optional) |

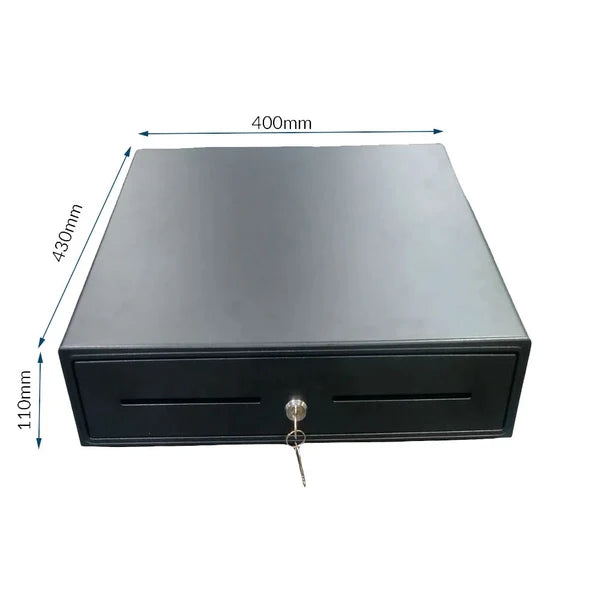

- Dimensions:415 (W) x 415(D) x 100/114 (H) mm Net Weight: 6.8 kg
- Cash Tray:5-Wide Bill Metal Wire gripper with 5-6-8 coins For Euro notes: 62.8 x 82.8 x 72.8 x 77.8 x 67.8 mm For Other countries: 72.8 x 72.8 x 72.8 x 72.8 x 72.8 mm Removable Coin Tray and Coin Separator available.
- Front panel: One Media Slot as standard. Option: Stainless Steel front panel available
- Solenoid unit: Dual Voltage 12V / 24V as standard
- Lock key: 3-Position Manual Lock and Manual Open
- Modular:6-pin RJ11/12 connector, Micro switch as option Serial Port & USB interface available as option
- Durability: MTBF 1,000,000 over cycles, Weight equality over 60 kg.

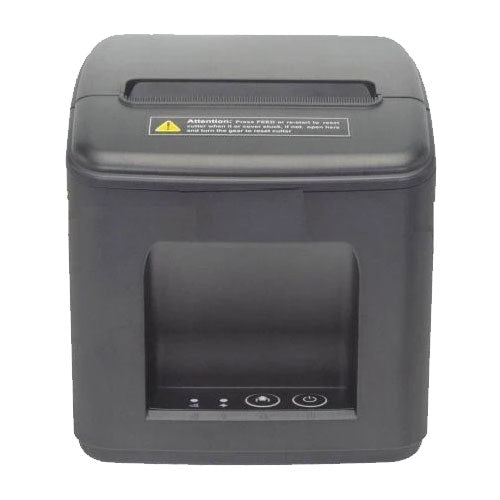

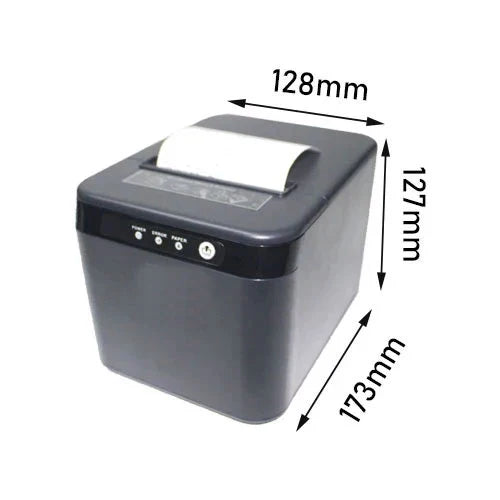

- Print method : Thermal line printing
- Print speed Max : 230mm/sec (5.91 in/sec)
- Paper width : 80mm
- Reliability : MTBF 360,000 hours, MCBF 60,000,000 lines, Autocutter 1.5 million cuts
- Interface : USB + Serial, or Ethernet, 802.11b/g/n (2.4GHz) and 802.11a/n (5GHz) or Bluetooth 2.1 + EDR
- Supported mobile : Wi-Fi (802.11): iOS, Android and Windows
- operating systems Bluetooth: iOS, Android and Windows
- Power : 100 – 240V AC, 50/60 Hz
- Power consumption : Approx. 1.8A
- Power supply External (AC cable included)

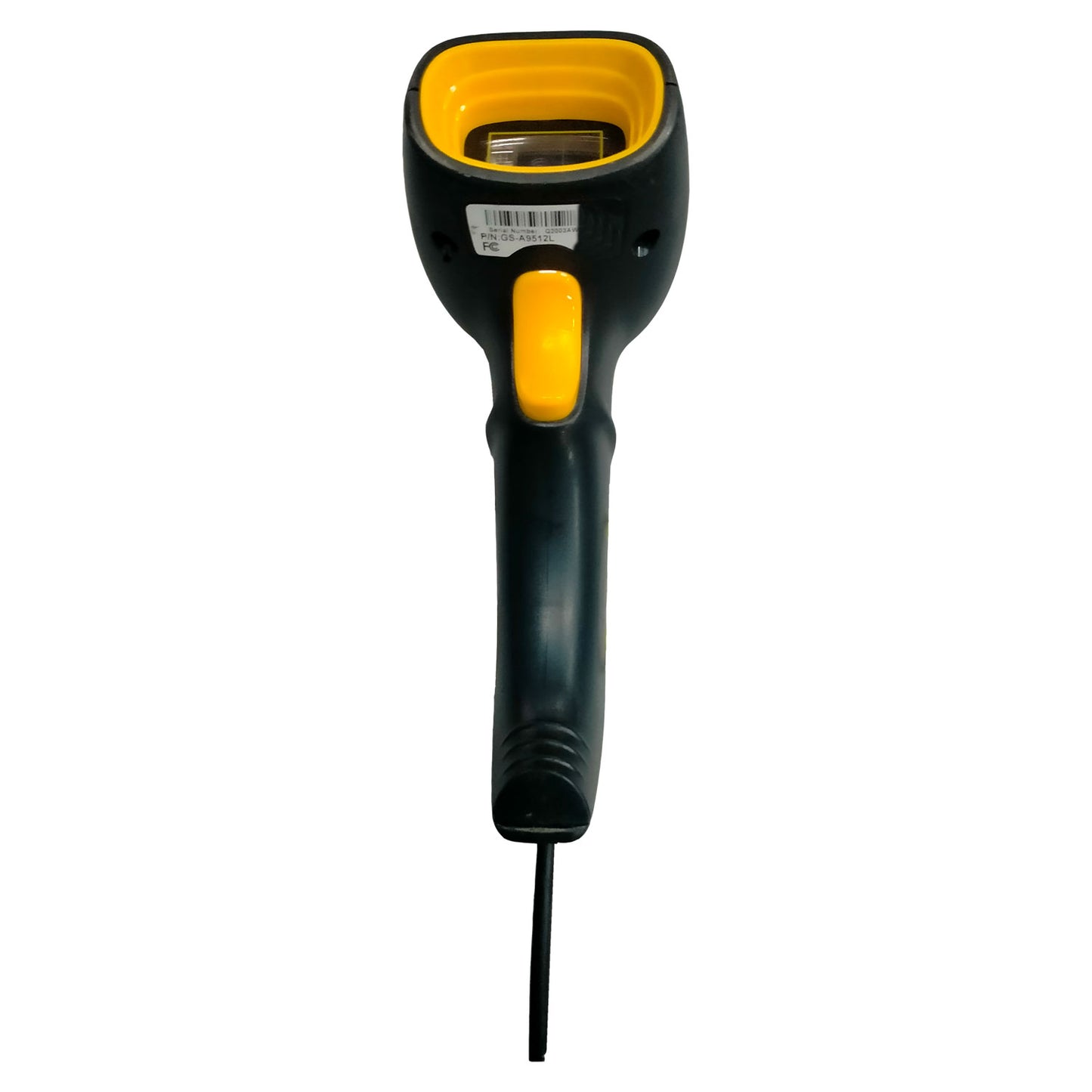

- DIMENSIONS : 165 x 70 x 90 mm
- WEIGHT : 235 gm
- COLOR : black
- SEALING : IP42
- DROP TOLERANCE :Withstands repeated drops from 1.5 m / 5.0 ft onto a concrete surface
- DECODE CAPABILITY : 1D / LINEAR CODES
