QCA9531 solution router - ThinPC

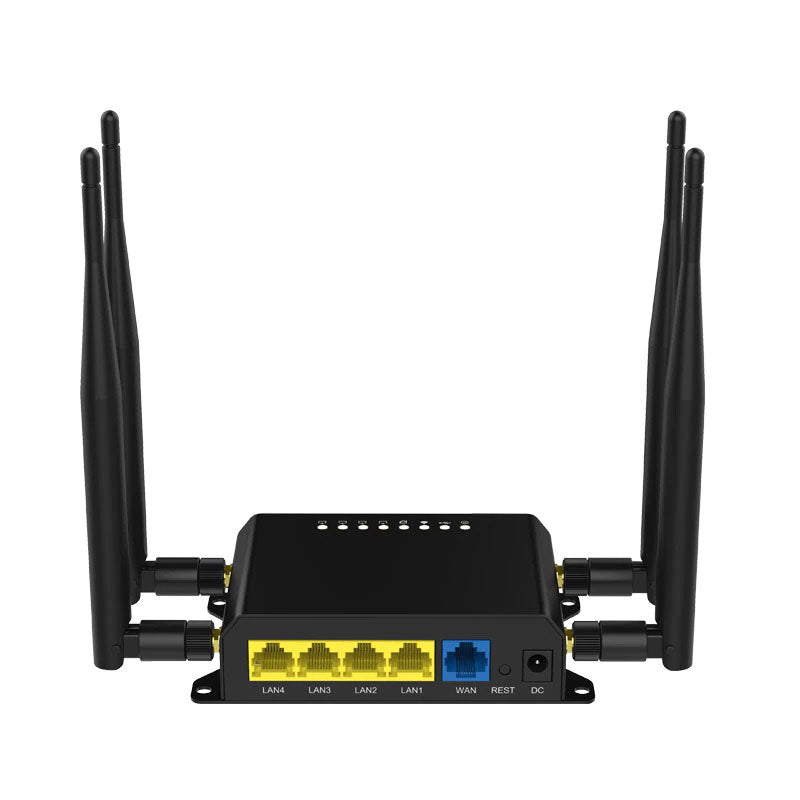

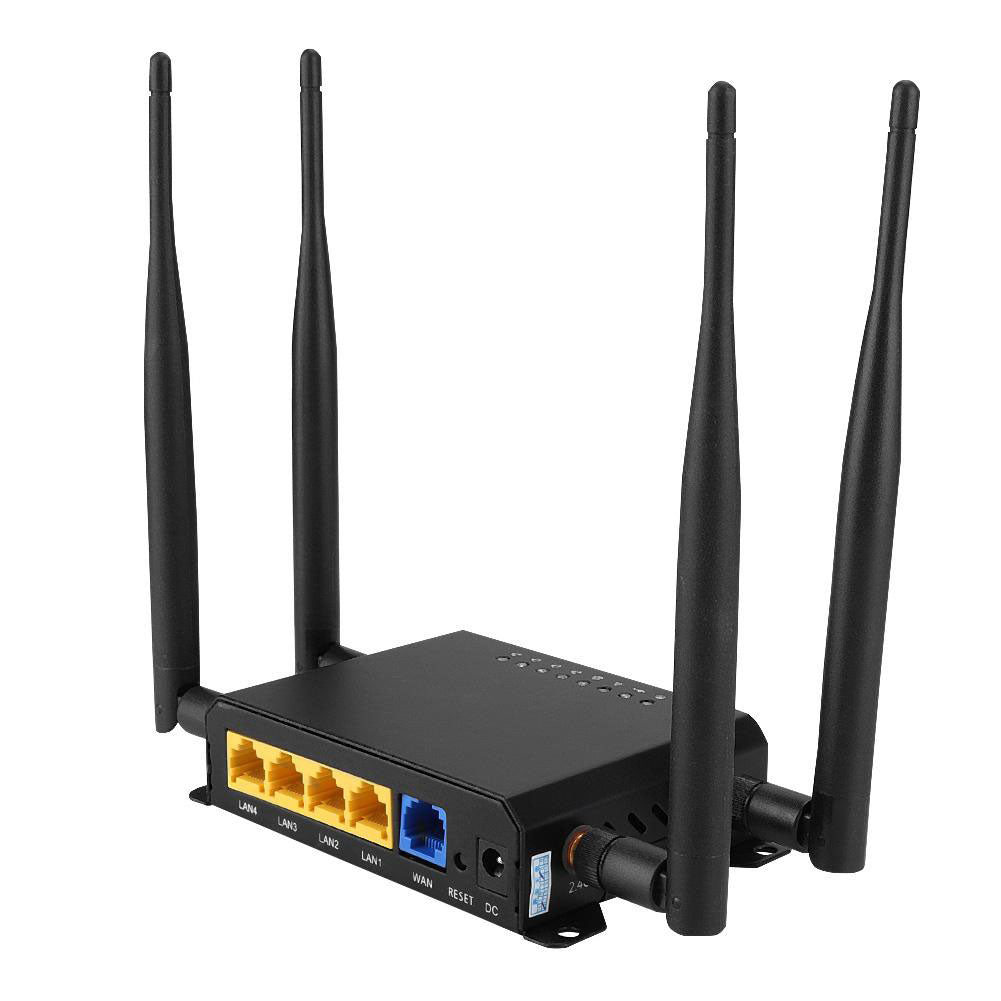

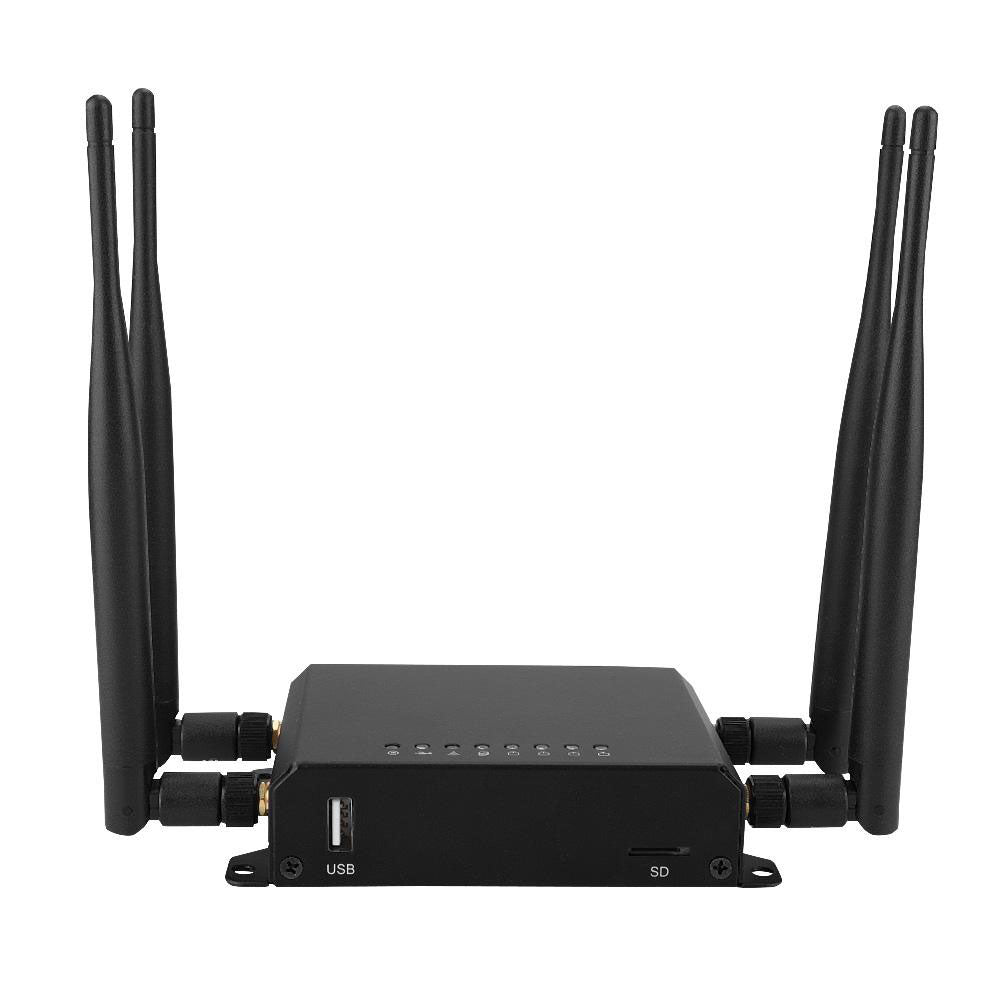

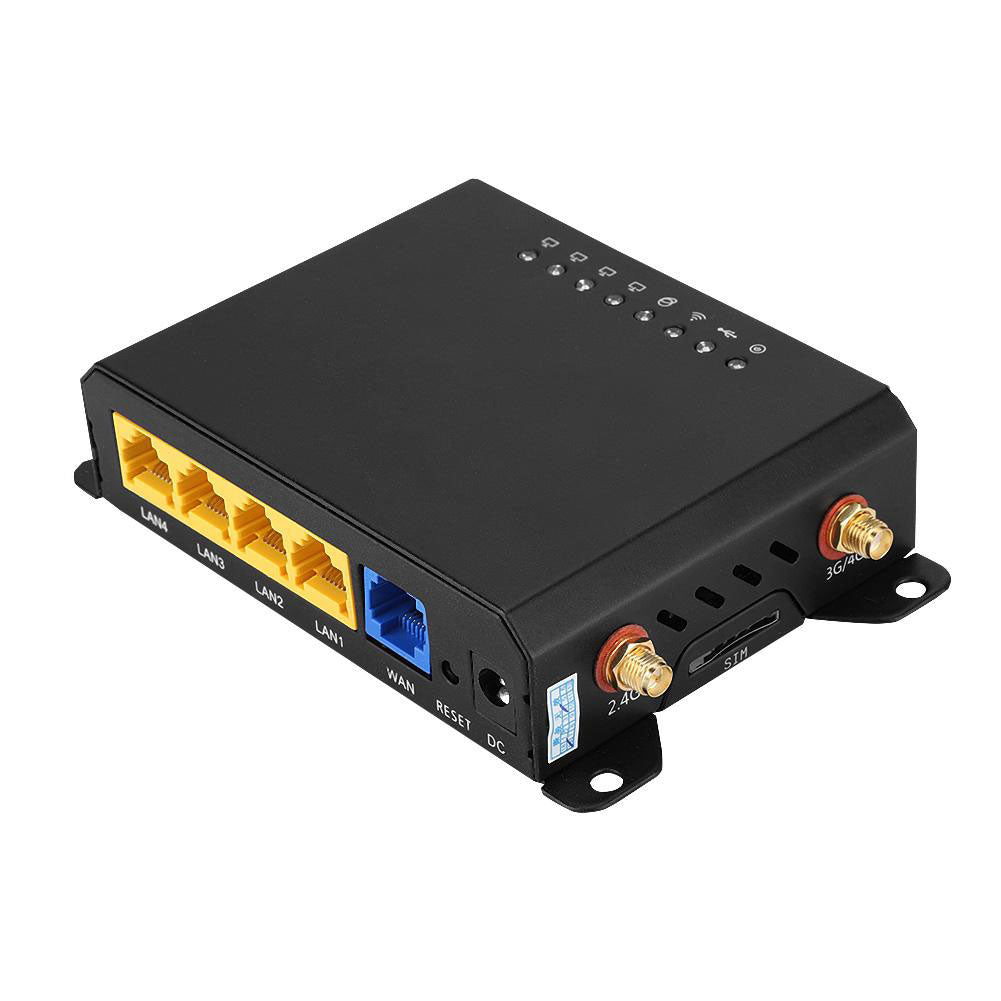

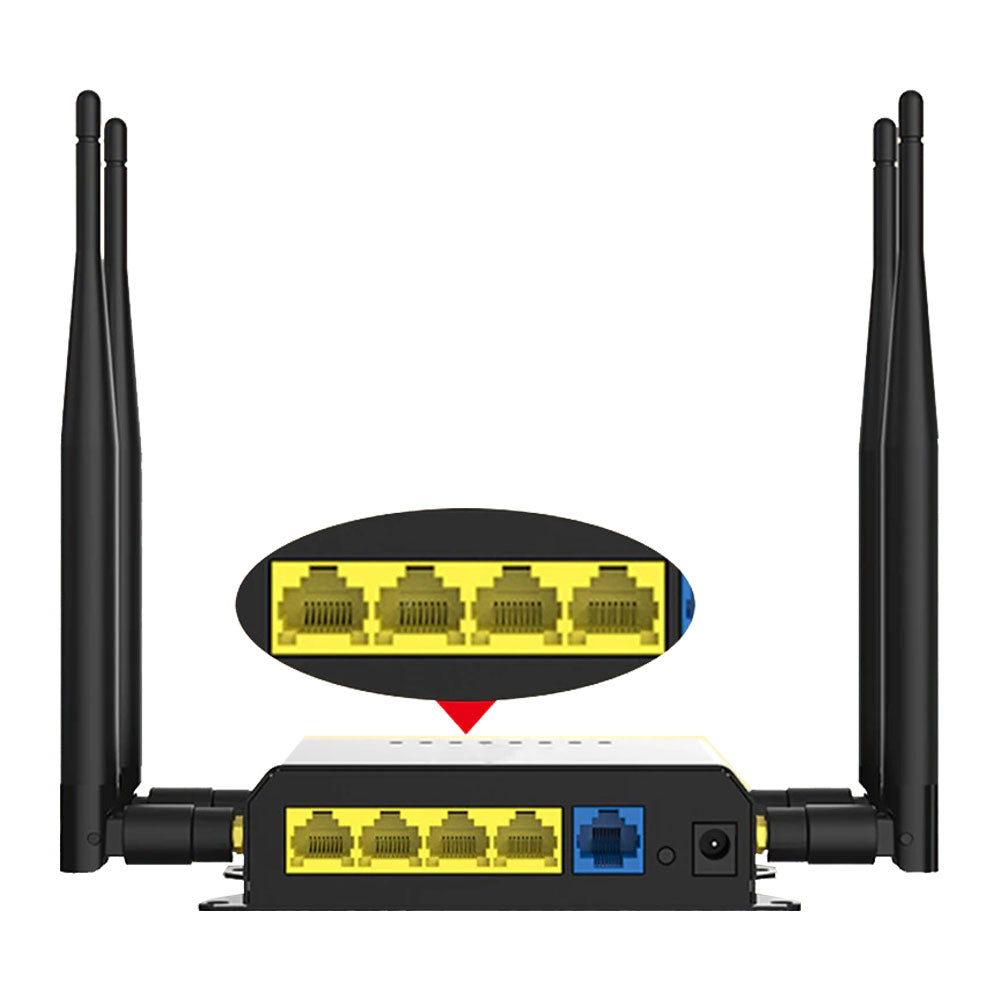

QCA9531 solution router

Rs. 0.00


QCA9531 solution router

Features

  • Complies with IEEE802.11b/g/n protocol
  • Provides 1* 10/100M WAN + 4*10/100M LAN + 1*USB Port + 1*SD Card Slot.
  • Supports Reset function
  • Supports Uboot brush
  • Supports 64/128 bit WEP encryption, WPA/WPA2, SPA-PSK/WPA2-PSK and other encryption and security mechanism
  • The wireless standby number is 30, HD video is 4~5, wired is about 80.
Chipset QCA9531 / 580MHZ
DDR2 DDR2 128MB
SSPI Flash 22"
Wireless Standards IEEE802.11n/802.11g/802.11b
Transmit Power 802.11b 18dBm±2dBm
802.11g 15dBm±2dBm
802.11n 15dBm±2dBm
Reception Sensitivity 802.11b: -83dBm@10% PER
802.11g: -74dBm@10% PER
802.11n: -68dBm@10% PER
Wireless Speed 300Mbps
Working Frequency 2.4GHz(2T2R)
Antenna Type 4 external 5dBi antenna
Interface 1 x 10/100M WAN
4 x 10/100M LAN
1 x USB port
1 x SIM Card Slot
1 x PCI-E Slot
1 x SD Card Slot
LED Power,USB,2.4G,WAN,LAN1,LAN2,LAN3,LAN4
Button Reset
Power Supply DC 12V
Max power consumption < 15W

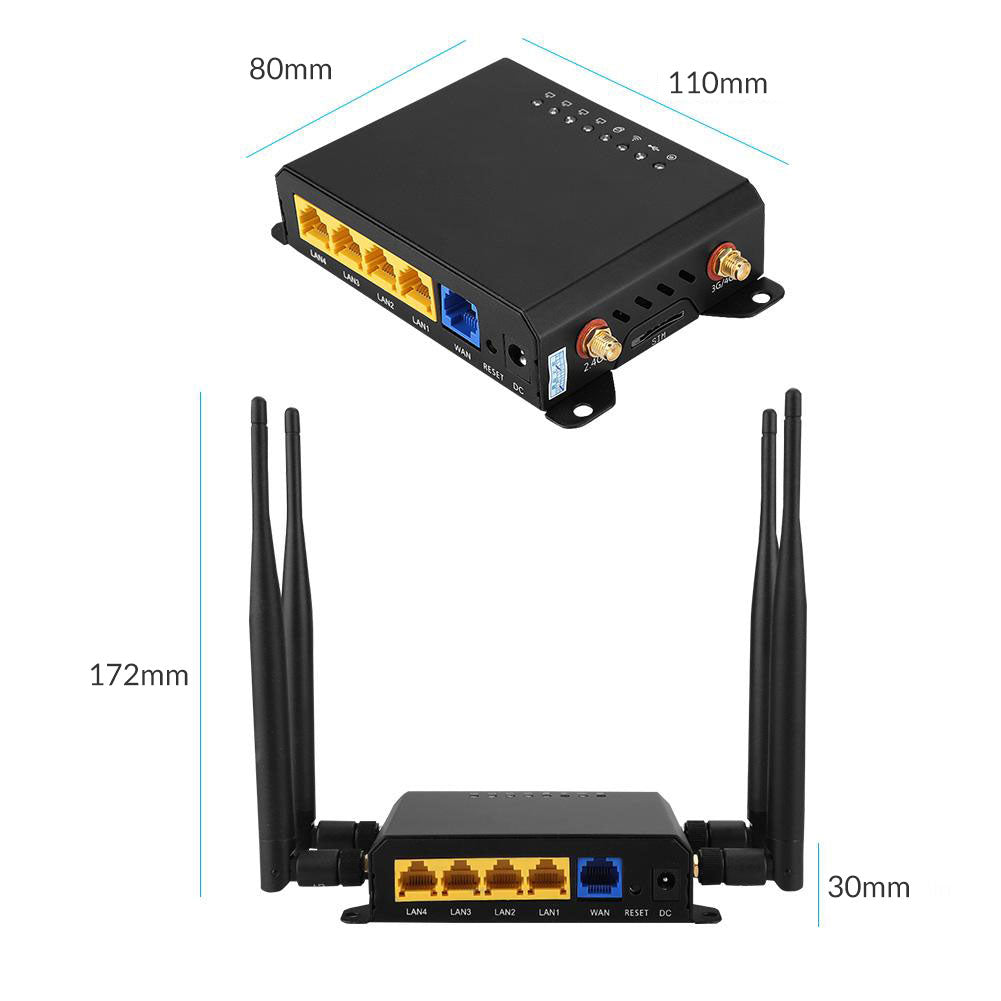

Dimensions(L*W*H) 131 x 88.5 x 28.6mm
Environment Operating Temperature: -30℃~70 ℃
Storage Temperature: -40℃~90 ℃
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
GST TAX All inclusive
Courier Charges All inclusive
Qty Price Call us
Warranty 1 Year Warranty

& MANY MORE....
